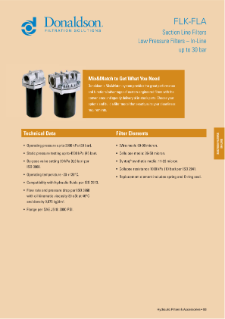

Hydraulic FLK-FLA Cartridge Assemblies

The FLK/FLA series are in-line suction filters of bowl cartridge type. It is available in mulitiple housing lengths for design flexibility.

Features

• Mix and match, stocked heads and filters
• Operating pressure up to 30 bar / 435 psi
• Static pressure testing up to 45 bar / 652.7 psi
• Collapse resistance up to 10 bar / 145 psi
• Flow rate ranges from 20 to 300 lpm / 5.3 to 79.3 gpm in suction line
• Flow rate ranges from 40 to 600 lpm / 10.6 to 158.5 gpm in return line
• Service indicators available

Benefits

• Economical
• Wide range of cleanliness ratings

Applications

• Fluid conditioning systems
• Lube oil systems
• Process systems
• Suction lines
• Side loop systems

Available Media Types

• Donaldson exclusive Synteq™ – synthetic fiber media for greater filtration efficiency and higher dust-holding capacity
• Natural fiber cellulose
• Stainless steel wire mesh

This servicing information is provided as a best practices guide. It is not intended to replace or supersede the service instructions supplied by your engine or vehicle manufacturer.

Filter Servicing

1. Check the filter service indicator
   Check to see that the OEM specified service interval has been reached or that the service indicator shows that the filter is due for servicing.


2. Turn system power off and bleed pressure
   Ensure that the hydraulic system is turned off.
   Check that there is no pressure present.


3. Remove the housing cover


4. Remove the used filter, gasket and spring (if applicable)
   Properly dispose of the cartridge according to local regulations.


5. Clean the filter mount, cap and inside the housing
   Clean out any sediment from the inside of the filter housing.


6. Inspect the new filter cartridge for damage
   Check the new filter you will be installing for any shipping and handling damage. Do not install a damaged filter.


7. Lubricate the filter gasket with a thin layer of clean motor oil


8. Install new filter cartridge and spring (if applicable)
   Install filter into the housing.


9. Reinstall the housing cover


10. Bleed the system and check for leaks
