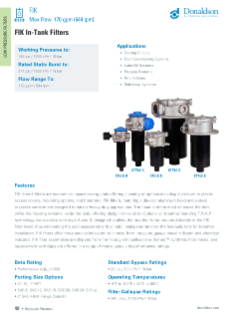

FIK in-tank filters are economical, space-saving units offering a variety of options including aluminum or plastic access covers, mounting option, breathers and accessories. Strong, durable die-cast aluminum head and a steel or plastic canister construction for heavy-duty applications.
Features
- Strong, durable, die-cast aluminum head and steel or plastic canister construction
- Five different sizes/styles from which to choose: Style A, B, C, D and E
- Units offer variety of options:
- Aluminum or plastic access covers
- Mounting options
- Breathers and accessories
- Optional T.R.A.P.™ Breather technology available with style A and B
- Three service indicators to choose from:
- Pressure gauge
- Visual
- Electrical
- Working pressure to: 10 bar / 145 psi
- Static burst to: 15 bar / 217 psi
- Flow range to: 644 lpm / 170 gpm
- Porting size options:
- ½ in., ¾ in., 1 in. NPT
- SAE-8, SAE-12, SAE-16, SAE-20, SAE-24 o-ring
- 2 in. SAE 4-bolt flange code 61
- Standard by-pass rating: 1.5 bar / 22 psi
Benefits
- Designed to handle heavy-duty applications
- Economical, space-saving units offer variety of options
- Head and inlet sit above the tank, housing remains inside the tank, for design-in flexibility
- Optional T.R.A.P.™ breathers available
- Cost-effectively designed so breather can be mounted directly in the filter head
- Replacement cartridges offered in a range of media types and performance ratings
Applications
- Cooling circuits
- Fluid conditioning systems
- Lube oil systems
- Process systems
- Return lines
- Side loop systems
Available Media Types
- Donaldson exclusive Synteq™ – synthetic fiber media for greater filtration efficiency and higher dust-holding capacity
- Natural fiber cellulose
- Stainless steel wire-mesh
- Many different efficiency grades from which to choose
