Diesel Fuel Kits

Overview

Donaldson's range of Diesel Fuel Filter Kits offer additional protection for your vehicle, providing cleaner fuel to keeping you on track and out of the workshop.

Modern diesel engines are being built to increasingly stringent specifications with finer operating tolerances. They require clean, dry fuel for optimum combustion, maximum power and the lowest emission levels.

Dirt and water are the enemies of fuel systems and can dramatically reduce the service life of fuel system components. If your vehicle operates in extreme conditions, or where fuel quality is uncertain, we recommend the installation of additional primary fuel filtration to provide added engine protection.

Features

Ideal for many 4WD and heavy-duty applications
Includes bonus filter element - keep one in the vehicle as a spare
Supports fuel flow range up to 379 lph / 100 gpm
High-efficiency and chassis mount versions available

11 Micron Diesel Fuel Kit

Supporting engines with fuel flow rates up to 114 lph / 30 gpm, Donaldson’s 11 Micron Diesel Fuel Kit is ideal for added protection against dirt and water for pre-common rail turbo 4WD’s and a variety of other applications such as generators, pumps, agricultural and construction equipment. Supplied with an optional use water collection bowl, fuel line fittings and a spare filter, this easy-to-install kit is as a robust and value package.

High Efficiency Diesel Fuel Kit

Donaldson's High Efficiency Diesel Fuel Kit has an efficiency rating of 3 micron @ 99% efficiency and supports fuel flow rates up to 114 lph / 30 gpm. The High Efficiency Diesel Fuel Kit provides the essential extra protection against dirt and water for common rail turbo 4WD applications, as well as other HPCR diesel engines where the highest level of fuel cleanliness is required. Included with this easy to install kit is an optional use water collection bowl, fuel line fittings and a replacement filter.

Chassis Mount Diesel Fuel Kit

The Chassis Mount Diesel Fuel Kit is a larger filter assembly, perfect for heavy duty vehicles with higher flow rate demands of up to 379 lph / 100 gpm. The Chassis Mount Diesel Fuel Kit is suitable for many larger 4WD, truck and equipment applications with higher flow rate demands, and has an efficiency rating of 3 micron @ 99% efficiency. With its optional use water collection bowl, fuel line fittings and replacement filter, it offers a higher flow rate, lower pressure loss, separates water and provides the highest level of fuel cleanliness, essential for modern heavy duty diesel engines.

Water In Fuel Sensor & LED Display Kit

Donaldson’s Water in Fuel Sensor & Display Kit is designed to give a visual warning for when separated water is present in the filter and needs to be drained. The kit contains a drain value with electrical plug, wiring loom and adjustable dash mount LED display. The Water In Fuel Sensor and LED Display Kit can be used with any Donaldson Twist&Drain™ fuel filters.

Specifications:

6V to 30V DC power supply, ignition activated circuit
Fuse max 10 AMP

Looking for more? Find filters and parts directly online.

Shop Now

Features

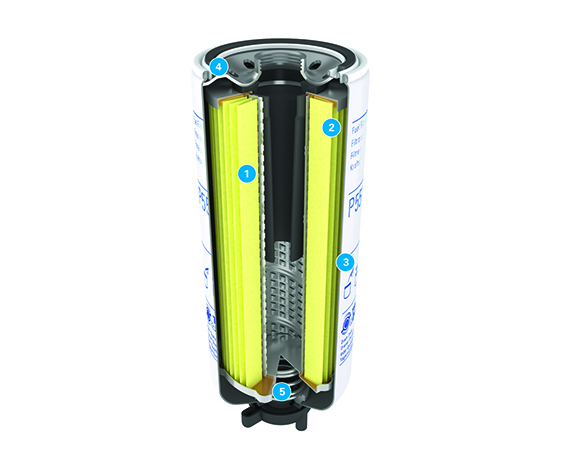

Fuel Filter Technology

Quality, reliable filtration is an essential component of maintaining sophisticated, modern diesel engines. Donaldson fuel filters provide clean, filtered fuel which ultimately helps prevent pump wear, injector clogging, premature engine wear and maintain fuel efficiency.

1. Filter Media — Designed to capture harmful contaminants and repel water to protect today’s sensitive injection systems. Donaldson filter media meets or exceeds OEM specifications.

2. Efficiency — Media packs are designed to allow full-flow under high operating pressures while providing the cleanest fuel possible.

3. Housings — Heavy-duty housings for strength and vibration-proof durability.

4. Seals and O-rings — Heat and chemical resistant to prevent leaks or unfiltered fuel bypass.

5. Compatability — Factory-fit design suits the application and allows for existing factory sensors and water collection bowls to be used where applicable.
