DuraLite™ ECB, ECC, ECD

Donaldson’s DuraLite Air Cleaners are tough, non-metallic, lightweight, self-supporting, and completely disposable. They are also easy to install, durable, and reliable.

They are designed to function well under high and severe pulsation conditions found in many applications, especially two- and three-cylinder engines. Vibration-resistant media is potted into molded housings of rugged ABS plastic — so they don’t fall apart as other designs might.

Applications

  • Gas and diesel engines and hybrid vehicles in light to medium dust conditions
  • Powered vehicles and equipment
  • Mobile engines
    • Stepvans
    • Recreational vehicles
    • Lawn and garden tractors
  • Stationary engines
    • Air compressors
    • Refrigeration units
    • Material handling equipment pumps
    • Gen sets
    • Welding equipment
  • Marine engines
    • Propulsion units
    • Gen sets
  • Provides variety of airflow volumes to engine:
    • 1.2 to 60 m3/min / 42 to 2118 cfm
  • Temperature tolerance:
    • 83° C / 180° F continuous
    • 105° C / 220° F intermittent

Benefits

  • Easy to install
  • Disposable, no service parts
  • Economical replacement cost

Features

  • Designed to withstand severe intake pulsation
  • No serviceable parts. Air cleaner housing and filter are one unit.
  • Self-supporting, sturdy
  • Very reliable: only one critical seal
  • Lightweight and compact in size
  • Non-metallic (except B085008 which is galvanized steel), non-corrosive . . . ideal for marine applications
  • Completely disposable . . . acceptable for normal trash pick-up (DuraLite should not be incinerated)
  • Easily installed and maintained
  • Minimal removal clearance needed — only 38.1 mm / 1.5 in.
  • Three airflow styles available to fit virtually any engine intake configuration
  • Various media available for specific applications — high pulsation and high humidity
This servicing information is provided as a best practices guide. It is not intended to replace or supersede the service instructions supplied by your engine or vehicle manufacturer.

Servicing Intervals

  • Choose either of two types:
    • Scheduled (Miles or Hours). DuraLite service intervals can be integrated into any existing maintenance program.
    • Filter Service Indicator. This method offers the most accurate filter maintenance program, delivering maximum filter life, less machine downtime, and reduced maintenance costs.
    • Washing, cleaning or servicing the filter in any way voids the warranty

Service Indicator Location

  • For proper restriction readings, a restriction fitting tap must be located between the engine intake and DuraLite outlet neck. The tap should be located in a straight section of the intake pipe at least one pipe diameter away from the manifold or any bends, elbows or reducers.

Servicing Tips

  • Do NOT judge the filter on the basis of visual inspection! If it’s doing its job, it should look dirty. DuraLite filter life is longer than you may think. Change the filter only when restriction readings indicate to do so.
  • During filter change out, do NOT leave the inlet ducting exposed any longer than necessary (a few minutes) during service
  • Never wash or clean the unit for reuse

Disposal

  • Follow your local disposal guidelines for disposal

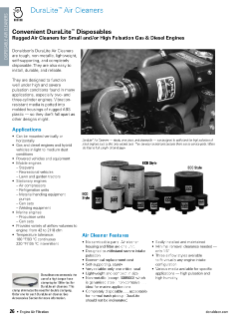

Donaldson DuraLite™ Air Cleaners

Servicing the Duralite™ Air Cleaner doesn't get any easier. View for Donaldson service recommendations for the ECB, ECC, and ECD DuraLite™ models
