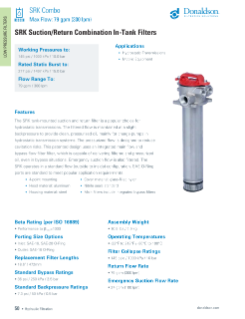

Hydraulic SRK Combo In-Tank Assembly

SRK tank-mounted suction and return assemblies/filters are popular choices for hydrostatic transmissions. The patented design uses an integrated main flow and by-pass flow filter, capable of delivering filtered and pressurized oil, even in by-pass situations.

Features

• 4-point mounting
• Strong, durable, aluminum head, glass-filled nylon cover and steel housing construction
• Nitrile seals standard
• Patented design uses integrated main flow and by-pass flow filter capable of delivering filtered and pressurized oil, even in by-pass situations
• Standard flow (outside to inside) configuration
• Working pressure to: 10.0 bar / 145 psi
• Rated static burst to: 15.0 bar / 217 psi
• Flow range to: 300 lpm / 79 gpm
• Standard by-pass rating: 2.5 bar / 36 psi
• Porting size options:
  • Inlet: SAE-16 and SAE-20 o-ring
  • Outlet: SAE-16 o-ring
• Multiple indicator options

Benefits

• Filtered flow is maintained at a slight backpressure to provide clean, pressurized oil for charge pumps
• Pressurized flow is designed to reduce cavitation risks
• Filtered emergency suction flow
• Standard SAE o-ring ports meet popular application requirements

Applications

• Hydrostatic transmissions
• Mobile equipment

Available Media Types

• Donaldson exclusive Synteq™ – synthetic fiber media for greater filtration efficiency and higher dust-holding capacity
• Suction filter includes wire mesh

This servicing information is provided as a best practices guide. It is not intended to replace or supersede the service instructions supplied by your engine or vehicle manufacturer.

Spin-On Filter Servicing

1. Check the filter service indicator
   Check to see that the OEM specified service interval has been reached or that the service indicator shows that the filter is due for servicing.


2. Turn system off and release pressure
   Ensure that the hydraulic system is turned off.
   Check that there is no pressure present.


3. Unscrew and remove the old filter and gasket
   Properly dispose of the used filter according to local regulations.

4. Wipe the filter head with a clean cloth


5. Inspect the new filter for damage
   Check the new filter you will be installing for any shipping and handling damage. Do not install a damaged filter.


6. Lubricate threads


7. Apply a thin film of motor oil to the gasket


8. Align threads – spin filter until gasket contact
   Fit the housing to the filter head as instructed on the housing.


9. Follow the icons on the filter to tighten
   Do not over-tighten.


10. Bleed the system and check for leaks
