PowerCore® 4x4 Air Cleaner

Overview

The Donaldson PowerCore® 4x4 air cleaner housing and filter kit delivers quality, reliable filtration and support, even for the toughest off road adventures. Designed for Toyota® Landcruiser® 200 Series diesel engines, the XLC200K is a robust compact replacement airbox equipped with everything you need to protect your vehicle from contaminants that can cause damage to your engine.

Swipe left or right to rotate. Double click for full screen.

Featuring genuine PowerCore® construction with Ultra-Web® media, Donaldson has engineered the ultimate air filter housing. Our PowerCore® 4x4 air cleaner combines high-efficiency filtration into a single, compact unit, delivering superior protection and performance. The PowerCore® 4x4 air cleaner housing and filter kit enhances your vehicle's cold air intake and delivers superior filtration efficiency without compromising on performance.

Ultra-Web® fine fibers have sub-micron diameters and small inter-fiber spaces, which result in more contaminant being captured on the surface, promoting lower restriction and long filter life.

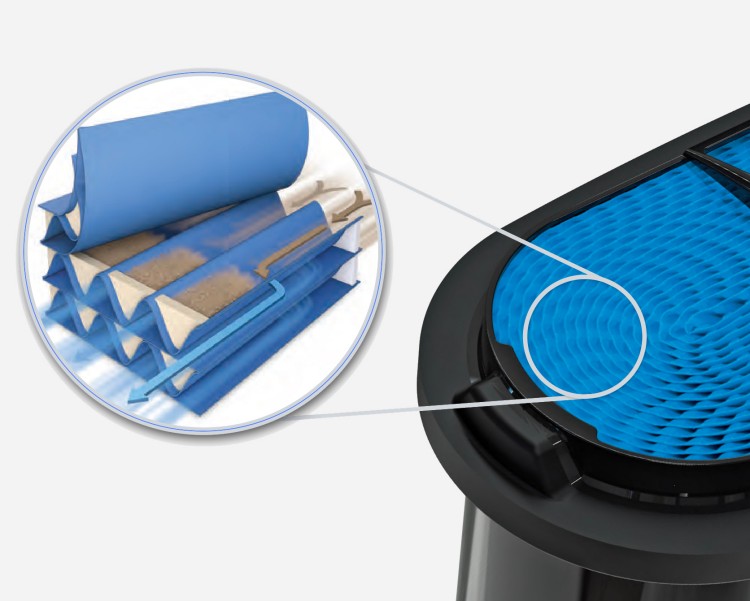

PowerCore® filters feature a unique corrugated flute construction with a straight-through airflow path. With three times the effective filtration area compared to OEM panel filters, they deliver over 30% lower initial restriction at same airflows.

Our Ultra-Web media offers a higher initial efficiency vs. standard cellulose filters, has very high efficiency throughout a filter's life, and provides excellent engine protection from sub-micron particulate. It also offers a very high dust-holding capacity for extended filter life.

The PowerCore 4×4 air cleaner housing and filter kit improves your vehicle's cold air intake without compromising on filtration efficiency or performance.

Features

Donaldson’s breakthrough PowerCore® media technology has been delivering superior performance and meeting original equipment manufacturers' (OEM) specifications for more than 20 years.

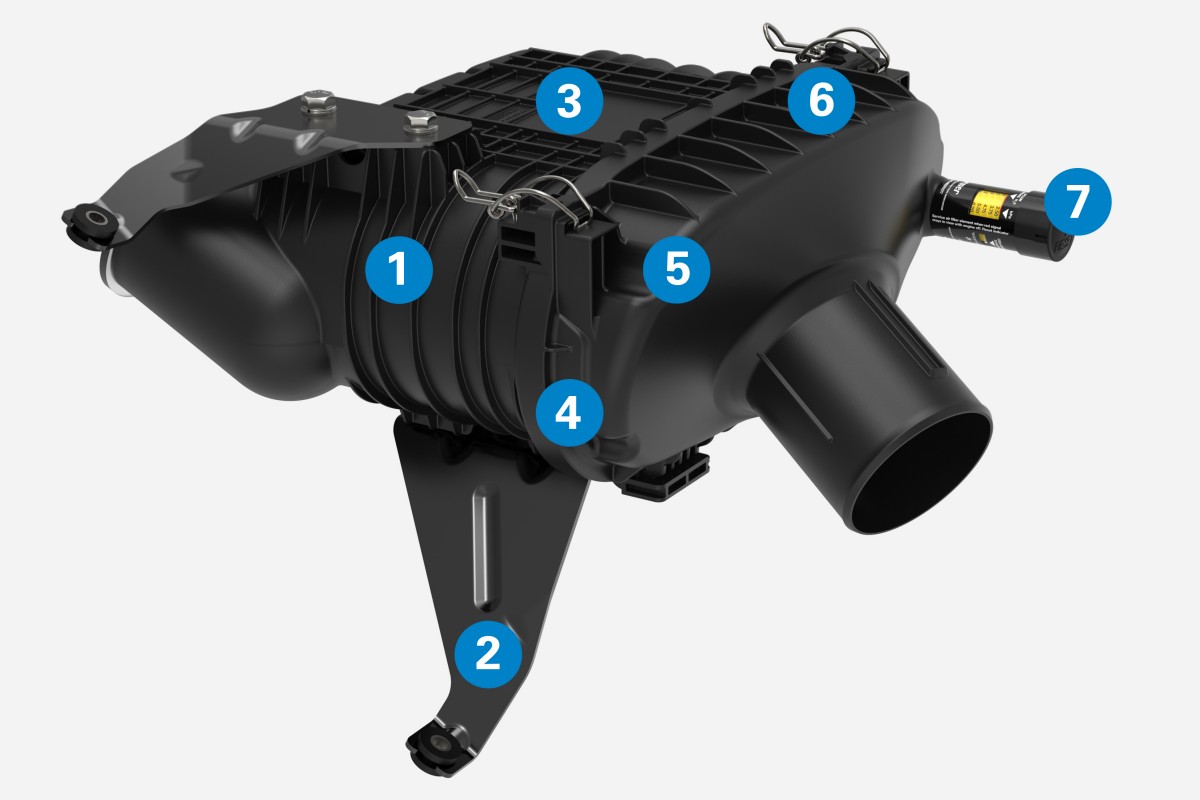

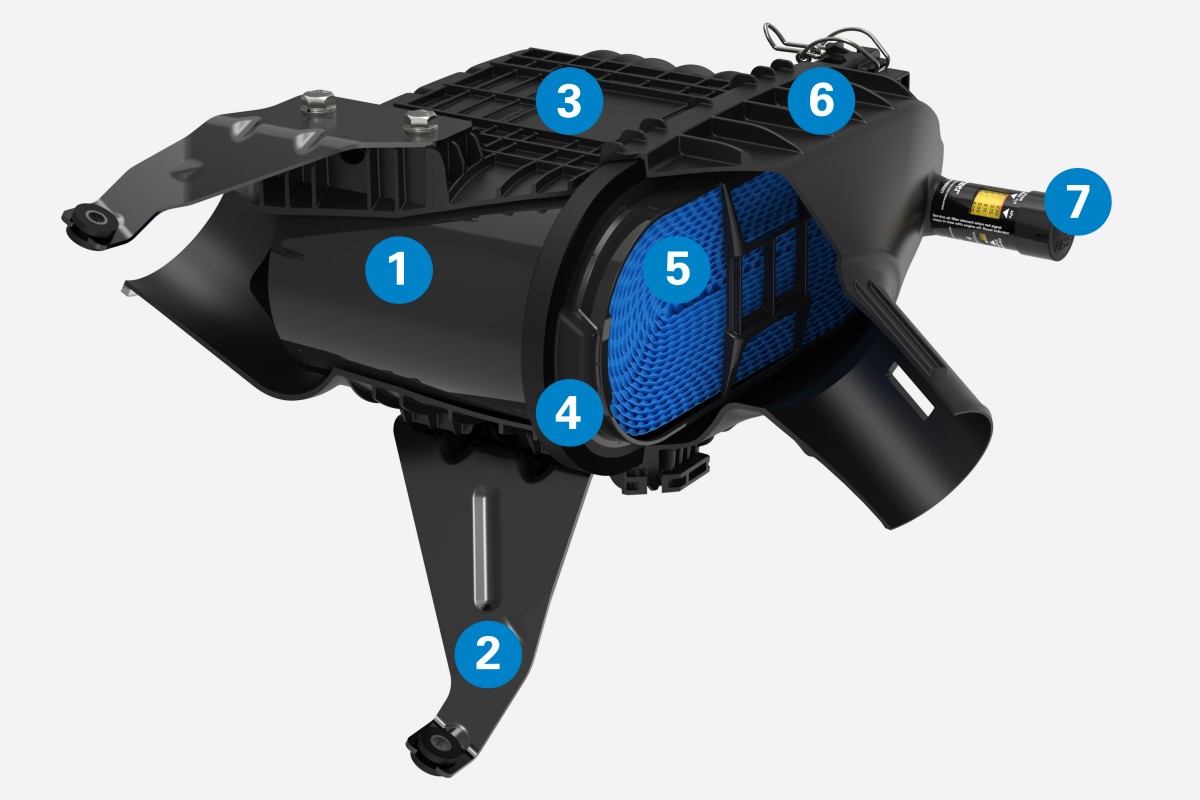

1. Compatibility – Compatible with most engine air intake system accessories.

2. Mounting Brackets – Heavy-duty construction equipped with replaceable isolators. Designed to fit existing mounting location.

3. Rugged Design – Durable construction provides high mechanical strength and heat resistance to withstand high temperature and high humidity working conditions

4. Unique Seal Design – Proprietary sealing technology creates a durable, leak/vibration-resistant seal, ensuring a reliable interface between the air cleaner and the filter.

5. PowerCore® Technology – Proprietary Ultra-Web® media provides higher filtration efficiency and comparable dust-holding capacity and filter service life.

6. Easy to Service – Removeable access cover for fast and easy filter service.

7. Restriction Indicator – Heavy-duty restriction indicator to help achieve maximum filter life.

Maximise Efficiency, Minimise Expenses

At first glance, the price tag might raise eyebrows, but this isn't just an air filter. It's a smart investment. This high-performance air cleaner is engineered to provide improved air flow which translates directly into better fuel economy. Feedback from satisfied owners of the XLC200K have indicated savings of 1L of fuel per 100kms.

With the average Landcruiser owner travelling 20,000 kilometres each year, imagine the impact on your annual fuel expenses. The math is simple, and the results are real. You're not just buying an air filter; you're purchasing long-term savings and a greener, more sustainable driving experience.

Savings based on unladen vehicle and average savings of 1 L per 100 kms:

Price / Litre ($AUD)	Kilometers Travelled Per Year
Diesel Price	10,000	15,000	20,000	25,000	30,000
$2.15	$215	$323	$430	$538	$645
$2.16	$216	$324	$432	$540	$648
$2.17	$217	$326	$434	$543	$651
$2.18	$218	$327	$436	$545	$654
$2.19	$219	$329	$438	$548	$657
$2.20	$220	$330	$440	$550	$660
$2.21	$221	$332	$442	$553	$663
$2.22	$222	$333	$444	$555	$666
$2.23	$223	$335	$446	$558	$669
$2.24	$224	$336	$448	$560	$672
$2.25	$225	$338	$450	$563	$675
$2.26	$226	$339	$452	$565	$678
$2.27	$227	$341	$454	$568	$681
$2.28	$228	$342	$456	$570	$684
$2.29	$229	$344	$458	$573	$687
$2.30	$230	$345	$460	$575	$690

Savings based on vehicle towing a caravan or trailer and average savings of 1.5 L per 100 kms:

Price / Litre ($AUD)	Kilometers Travelled Per Year
Diesel Price	10,000	15,000	20,000	25,000	30,000
$2.15	$323	$484	$645	$806	$968
$2.16	$324	$486	$648	$810	$972
$2.17	$326	$488	$651	$814	$977
$2.18	$327	$491	$654	$818	$981
$2.19	$329	$493	$657	$821	$986
$2.20	$330	$495	$660	$825	$990
$2.21	$332	$497	$663	$829	$995
$2.22	$333	$500	$666	$833	$999
$2.23	$335	$502	$669	$836	$1,004
$2.24	$336	$504	$672	$840	$1,008
$2.25	$338	$506	$675	$844	$1,013
$2.26	$339	$509	$678	$848	$1,017
$2.27	$341	$511	$681	$851	$1,022
$2.28	$342	$513	$684	$855	$1,026
$2.29	$344	$515	$687	$859	$1,031
$2.30	$345	$518	$690	$863	$1,035

Applications

Make	Model	Series	L	Engine	Years	Fuel	OE Genuine Service Element
Toyota	Landcruiser	VDJ200R	4.5	1VDFTV	2007-2021	Diesel	17801-51020
Toyota	Landcruiser	URJ202R	4.6	1URFE	2012-2019	ULP	17801-38030
Toyota	Landcruiser	UZJ200R	4.7	2UZFE	2007-2012	ULP	17801-38030
Lexus	LX570	URJ201R	5.7	3URFE	2007-2021	ULP	17801-38030
Lexus	LX570	VDJ201R	4.5	1VDFTV	2018-2021	Diesel	17801-51020

Note:

Lexus applications need to remove the plastic shroud cover above the Airbox.

For ULP models, check the clamp sealing between housing outlet and intake pipe as this dimension differs slightly to diesel platforms. It is recommended to use a T-bolt clamp to maintain an adequate critical seal (P148342 T-bolt clamp sold separately). It is recommended to remove the small rubber nodules on the intake pipe hose clamp area to give a complete flat surface before fitting the T-bolt clamp.

Toyota® is a registered trademark of Toyota Motor Corporation
