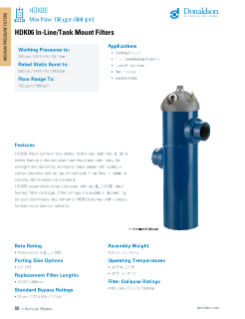

HDK06 filters come in two styles: in-line and tank mount. Both styles feature a die cast aluminum head and steel body for strength and durability; service is made easier with a single, center retention bolt on top of the head. Assemblies come complete with β9(c)=1000 rated Synteq™ filter cartridge. Additional ratings are available, depending on cleanliness requirements.
Features
- Strong, durable die cast aluminum head and steel body construction
- Single, center retention bolt on head top for easy service (optional T-handle)
- Inside to outside filter flow
- Standard nitrile seals
- Easy-to-read visual service indicator
- Assemblies come with β9(c)=1000 rated Synteq™ filter cartridge
- Working pressure to: 24.1 bar / 350 psi
- Rated static burst to: 34.5 bar / 500 psi
- Flow range to: 568 lpm / 150 gpm
- Porting size options: 2-½" NPT
- Bypass ratings of: 1.7 bar / 25 psi
Benefits
- Rugged and reliable construction – for worry-free performance
- Highly configurable to fit your application requirements
Applications
- Cooling circuits
- Fluid conditioning systems
- Lube oil systems
- Return lines
- Suction lines
Available Media Types
- Donaldson exclusive Synteq™ – synthetic fiber media for greater filtration efficiency and higher dust-holding capacity
- Wire mesh
- Many different efficiency grades from which to choose
