L-BH Liquid Filter Housings

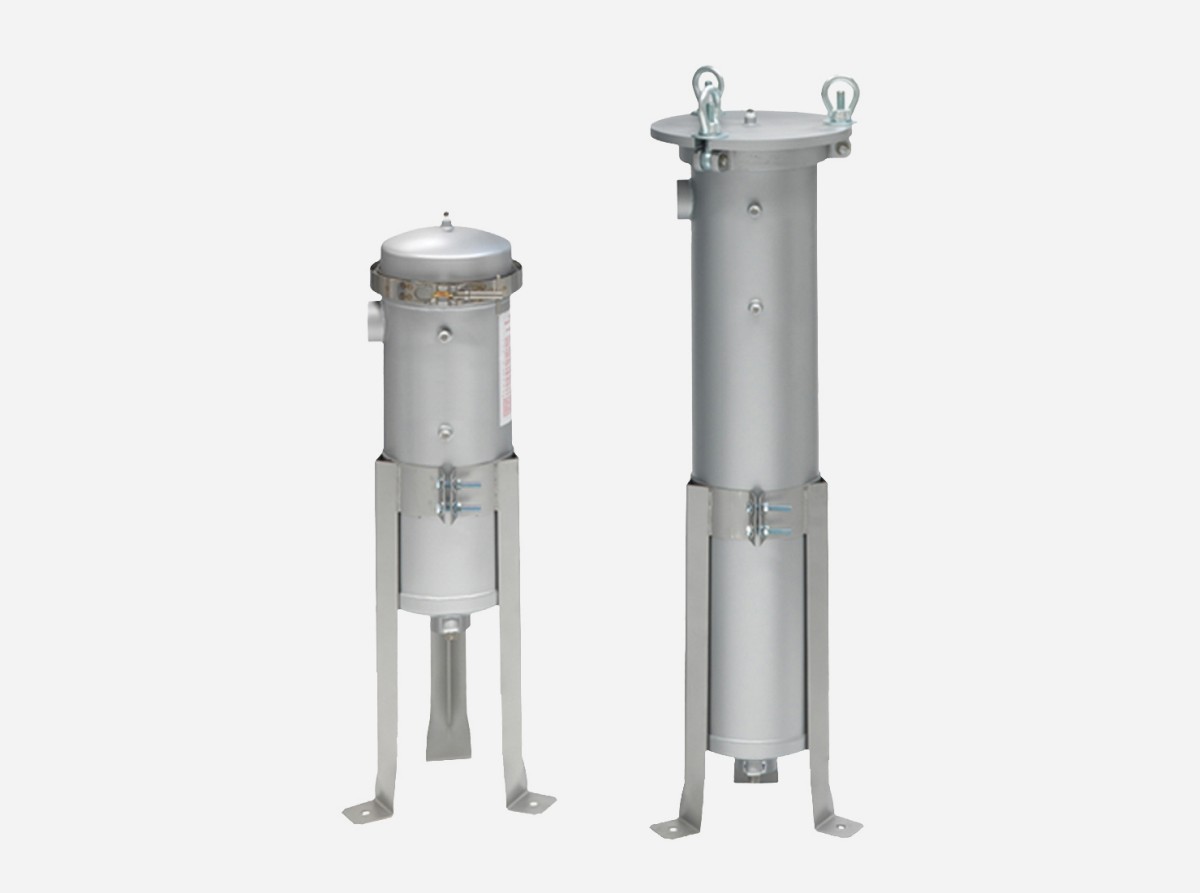

The single bag liquid housings feature heavy-duty construction for maximum durability and are a reliable solution for pre, coarse, and bulk liquid filtration.

Features

#1 and # 2 bag housings:

• Available in 316L SS, 304L SS or carbon steel construction
• Clamp or swing bolt closures
• Stainless steel compression spring for positive bag sealing
• Adjustable stainless steel leg assembly
• 6.4 mm / 1/4 in. FNPT gauge ports and 127 mm / 1/2 in. FNPT drain port

#3 and #4 bag housings:

• 316 SS construction
• Clamp closure for easy bag change outs
• Adjustable leg assembly

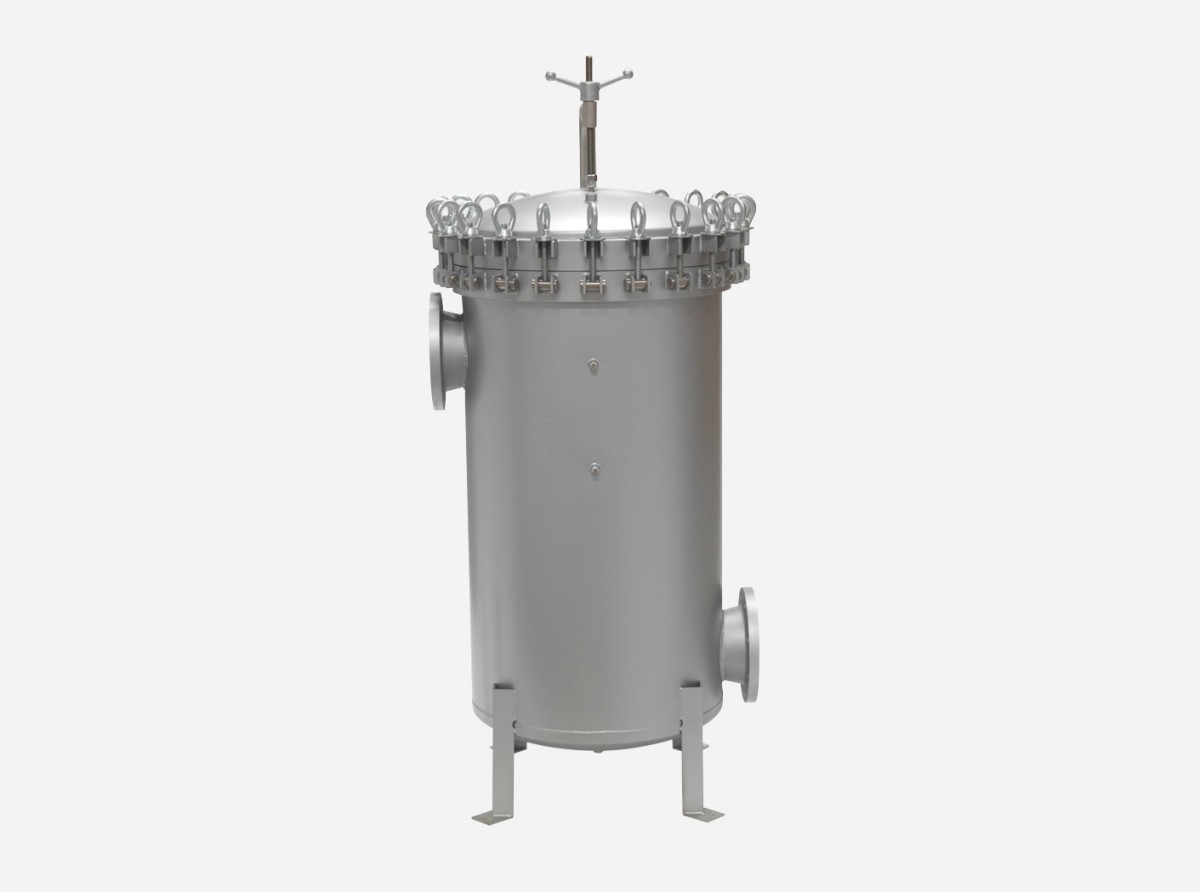

The multi-bag liquid housings feature heavy-duty 304L or 316L stainless steel construction for maximum durability. They are compatible with size 2 bags, and are a reliable solution for pre, coarse, and bulk liquid filtration.

Multi-bag housings are available with either a clamp closure for quick and easy bag change-out or a swing bolt and davit closure ideal for larger flow applications.

Features

Clamp closure housing:

• Clamp closure offers quick and easy bag change-out
• 10.3 bar / 150 psi pressure rating up to 121° C /  250° F
• 76.2 mm / 3 in. flanged connections

Swing bolt closure housing:

• Heavy-duty swing bolt closure and davit assembly are ideal for larger flow applications
• Low profile for easy bag change-outs
• 10.3 bar / 150 psi pressure rating up to 149° C / 300° F
• Eye nuts and davit handle are zinc plated to prevent gauling
