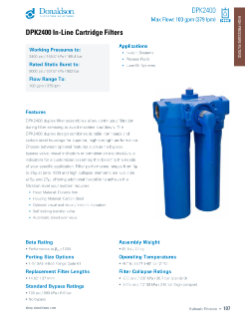

DPK2400 duplex filter assemblies allow continuous filtration during filter servicing to avoid machine shutdown. The DPK2400 duplex design combines durable iron heads and carbon steel bowls for superior, high-strength performance. Choose between optional features such as no by-pass, by-pass valve, visual indicators or combination electrical/visual indicators for a customized assembly that best fits the needs of your specific application.
Features
- Strong, durable iron head and carbon steel housing
- Deep pleat filters for higher dirt holding capacity
- Service indicator options – electrical/visual or visual options
- Available with no by-pass or with by-pass valves for design flexibility
- Fluorocarbon seals are standard
- Working pressure to: 165.4 bar / 2400 psi
- Rated static burst to: 552 bar / 8000 psi
- Flow range to: 379 lpm / 100 gpm
- Porting size options:
- 1-½" SAE 4-bolt flange code 61
- By-pass ratings of:
- 6.9 bar / 100 psi
- No by-pass
Benefits
- Allows continuous filtration during filter servicing
- Highly configurable to fit your application requirements
- Featuring our high-performance DT filters with multiple efficiency options – allowing you to achieve the performance you need for most any application
Applications
- In-plant systems
- Lube oil systems
- Process fluids
Available Media Types
- Donaldson high-performance DT cartridges with exclusive Synteq™ – synthetic fiber media for greater filtration efficiency and higher dust-holding capacity
- High collapse options
