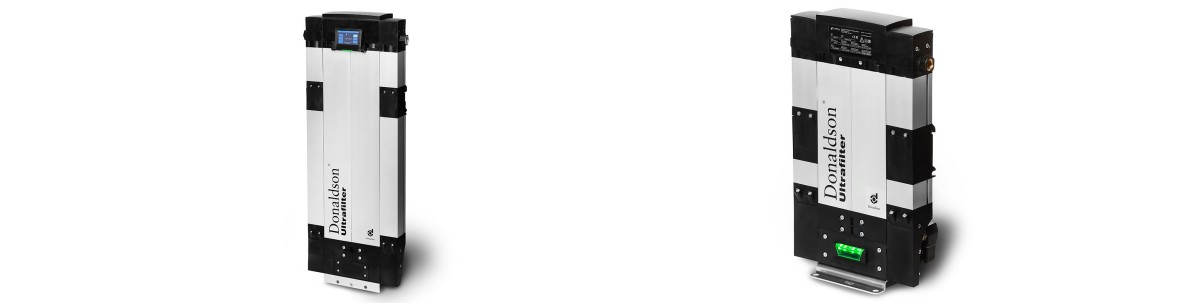

The Ultrapac™ Smart is a compressed air treatment system that combines many process steps to achieve pure compressed air - from pre-filtration and heatless regenerated adsorption drying to fine filtration and condensate removal. The compact stand-alone version can be used directly as a plug & play solution. Installation and maintenance costs can be significantly reduced by using this compact treatment unit to generate clean, compressed air.
Compressed Air Purification in Three Stages

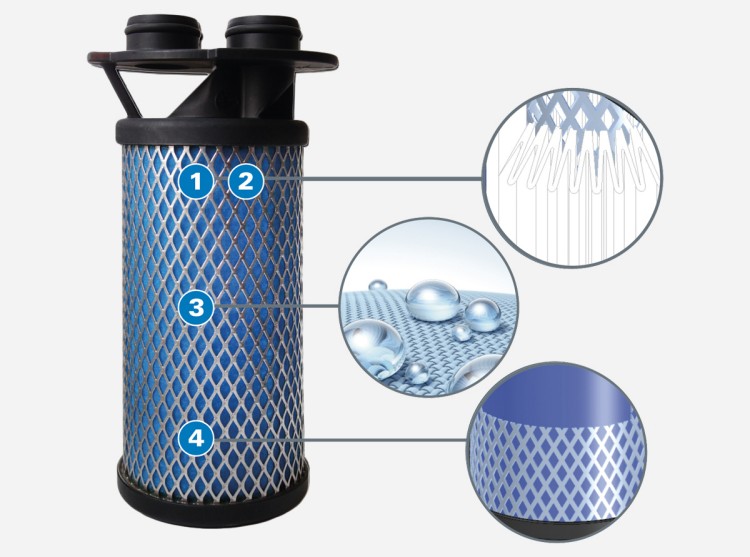

- The integrated pre-filter retains solid particles and liquid aerosols (oil/water).
- The adsorption dryer adsorbs the moisture in the compressed air up to a pressure dew point of -70 °C/-94 °F, at 70 % nominal load (standard -40 °C/-40 °F).
- In the last step, remaining solid particles up to 0.01 μm are retained in the integrated after-filter.
Thanks to the three-stage treatment system, compressed air quality according to ISO 8573-1:2010 is reliably achieved, which corresponds to quality classes 1-2:1-2.
