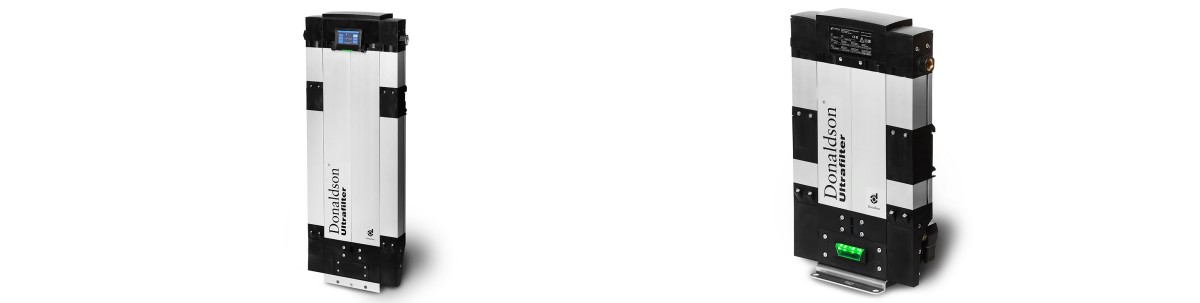

The Ultrapac™ Smart is a compressed air treatment system that combines all process steps to achieve pure compressed air - from pre-filtration and heatless regenerated adsorption drying to fine filtration and condensate removal. The compact stand-alone version can be used directly as a plug & work solution. Installation and maintenance costs can be significantly reduced by using this compact treatment unit to generate clean and silicone-free compressed air.
Compressed Air Purification in Three Stages

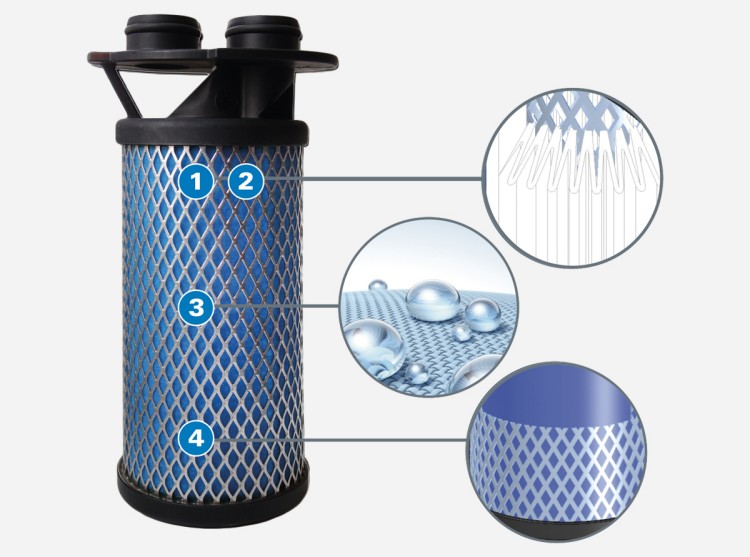

- The integrated pre-filter retains solid particles and suspended matter as well as liquid aerosols (oil/water).
- The adsorption dryer adsorbs the moisture in the compressed air up to a pressure dew point of -70 °C/-94 °F, at 70 % nominal load (standard -40 °C/-40 °F).
- In the last step, remaining solid particles up to 0.01 μm are retained in the integrated after-filter.
Thanks to the three-stage treatment system, a compressed air quality according to ISO 8573-1:2010 is reliably achieved, which corresponds to quality classes 1-2:1-2 as well as 0, specified according to the application and better than class 1.
To support process and product integrity within the company, the Ultrapac Smart is used as the final treatment stage directly at the point of consumption.
