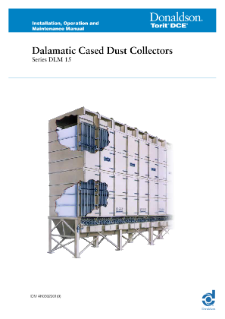

The Cased Dalamatic (DLMC) is a stand alone collector with support legs and hopper. The inlet is at the top of the collector to drive dusty air down towards the hopper. This downward air pattern helps to keep dust pulsed off of the bags moving towards the hopper and therefore reduces dust re-entrainment on the bags. This makes the DLMC a popular choice for light and fluffy dust applications.

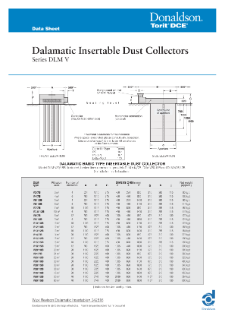

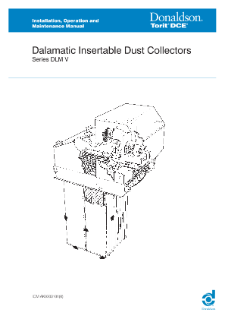

In contrast, the Dalamatic Insertable (DLMV) has no legs and hopper. The DLMV is used in applications such as bin venting where the collector is mounted on top of a bin or silo and the bags are often times actually inserted inside the top of the bin. As the bin or silo is being filled, dusty air is filtered by the DLMV with cleaned air exiting the collector. Once a dust cake forms on the outside of the bags, a pulse of compressed air inflates the bag and breaks the dust cake free of the bag depositing the material back into the bin or silo so no material is wasted.
Continuous Dust Collection
Provides continuous filtration of high dust concentrations at high filtration velocities and constant levels of resistance in almost any industry and application.
Unique modular design allows for installation in the most space restricted areas. Envelope-shaped bags maximize the amount of media in a given space and allow for increased space between bags, minimizing the chances of bridging.
Dura-Life™ Bag Filters
Provide better surface loading and better pulse cleaning reducing maintenance and operating costs.
A full range of sizes and types of bags are available for a wide variety of dust collection applications.
Unique Bag Design
The Dalamatic advantage is found in the breakthrough technology of Dura-Life bag filters in an envelope shape. The envelope shape provides greater movement of the bag to dislodge more challenging dust cakes during filter pulsing.
- Dust accumulates on the outer surface of the filter bag as air penetrates the media
- The blowpipe (jet tube) injects a burst of compressed air into the bag filter
- Airflow is then briefly reversed, inflating the bag filter and dislodging dust
- The dislodged dust cake falls into the collection hopper for final removal or directly back in the process. The envelope-shaped bag filter, which is mounted on a unique wire frame, ensures optimum airflow and thorough cleaning.
