What to Look for in a Weld Fume Extraction System

The ideal technology for your operation depends on answers to key questions

All forms of welding create fumes that pose exposure hazards. You can greatly reduce exposure levels by properly ventilating the workspace. Don’t assume that using a fan, opening a window, or even welding outside will adequately protect your welders. The American Conference of Governmental Industrial Hygienists (ACGIH) prefers fume extractors (also called dust or fume collectors) over natural ventilation for their ability to capture fumes near the source, before contaminants are dispersed throughout the facility.

While each welding facility is unique, the following questions will help you select the most appropriate fume extraction system for your operation.

What are my dust and fume hazards?

First, you need to understand the combustion risks present in your operation by analyzing your materials and process. You’ll find guidance for this analysis in Standards 652 and 484 of the National Fire Protection Association (NFPA). Many local governments are making these standards mandatory, and OSHA inspectors are known to enforce them as well. NFPA Standard 652 sets a deadline of September 7, 2020 to complete a dust hazard analysis and have a combustible dust mitigation plan in place. Once you identify your hazards, you can develop a fume extraction strategy specifically for your facility.

Workshops for Warriors in San Diego has multiple weld stations with source extraction arms tied into a central Donaldson Torit® Downflo® Oval Dust Collector.
How much weld fume does your facility generate?

Next, you need to determine the duty cycle of your operation and the volume of particulates your fume extractor will need to handle. Do you operate 24/7 or weld for eight straight hours during a normal workday? If so, you will likely produce a higher level of weld fume particulate and want to consider fume extractors that run continuously, have self-cleaning mechanisms, and also have long-lasting filters to minimize downtime. Robotic welding will also produce a large amount of weld fume with the same requirements.

On the other hand, if you do mostly manual welding and use the weld stations only on an intermittent basis, the ideal option may be a small portable fume extractor. This equipment can be turned on and off depending on demand.

Point-of-use fume extractor
What method of extraction will work best?

Identify where weld fumes are generated and what your facility lay-out allows in terms of equipment location. It’s always preferable to remove fumes close to the point of generation. Source fume extraction means each weld station has its own collection hood, extraction arm, or a workbench to capture fume specifically generated by that operation.

There may be layout considerations that limit the use of source collection, however. If there are overhead cranes, limited floor space, or no room for ductwork, these factors may dictate an ambient extraction method. In this method, no capture equipment is used at the weld site; rather, an ambient collector draws in fumes from the entire area.

Another factor to consider is whether you frequently rearrange your layout. Ambient extraction may not need to be reconfigured when you change your layout, while source extraction needs to move with the welding equipment.

A centralized fume collector outdoors
Where should equipment be located?

If you select source collection, you then need to decide where to locate the equipment in relation to the weld stations. Facilities with spread out workstations find it convenient to use a point-of-use layout where one collector is connected to one welding operation or station. Since each welding point has its own extractor, it’s smart to select an extractor with a small footprint that can be placed directly adjacent or close to each workstation.

In other shops, it might work best to use a centralized strategy. In these installations, one collector serves multiple workstations, and the stations are connected to the extractor through a network of ducts. In these layouts, the centralized collector is typically located some distance away from the welding points and maybe a good option if floor space is limited near the welding.

What type of filtration equipment is most appropriate?

Once you’ve determined your weld process, facility limitations, and extraction goals, you’re ready to select the extractor itself. This equipment draws in contaminated air, filters out particulates, and exhausts filtered air outdoors or possibly back indoors. Particles that settle out in the extractor are collected in waste containers.

Donaldson Torit® Downflo® cartridge collectors

There are two types of extractors – cartridge or filter-pack – named for the filter style inside the equipment. The filter is the component that captures the fume particulates. Both filter technologies work well, so which one you choose may be driven by the location of equipment and whether a point-of-use or a centralized collector arrangement is selected.

Cartridge systems come in a wide variety of designs and sizes. Their pleated filters are easy to change and provide maximum particle-holding capacity in a compact footprint. In this category are the Donaldson family of Downflo® collectors.

Donaldson Torit® PowerCore TG

Filter-pack systems work well as point-of-use extractors, for example, next to robotic weld cells, or integrated to work with the welding equipment by the manufacturer. The Donaldson Torit® PowerCore® TG is in this category.

Most Donaldson fume collectors come with a self-cleaning function where compressed air pulses the filters clean during operation, extending the life of the filter. This function requires a compressed air source.

When it comes to filters, it’s best to use one designed for sub-micron weld fumes, such as Donaldson’s Ultra-Web® fine fiber filters. The media traps dust on the surface, creating a dust cake that pulses off easily, which extends filter life.

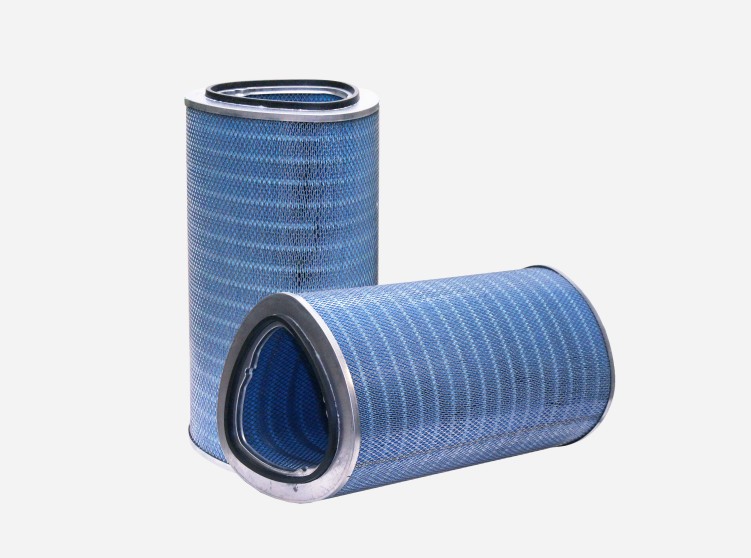

Cartridge filters with Ultra-Web® technology
Other best practices

Two other recommendations will help you select the ideal fume extraction system for your application:

  • Involve your welders in system design. Capture devices such as extraction arms should be maneuverable and long enough for workers to adjust as they move around parts. Getting their input upfront will help develop a system that they will be more inclined to use.
  • Ask a fume extraction professional for assistance. With many variables in the mix, it pays to work with someone knowledgeable who can help analyze your operation and help design the ideal solution. Your Donaldson representative can navigate you through the process.

We can help you get the optimal solution for your application.
