Overview



What Is a Downflo® WorkStation Dust Collector?

The Downflo® WorkStation (DWST) is a self-contained dust collection workstation designed for manufacturing operations where dust, fume, or airborne contaminants are generated in open work areas. Unlike traditional dust collection systems that rely on extensive ductwork or large containment hoods, the Downflo® WorkStation combines effective contaminant capture with an open design that allows unrestricted worker movement and visibility.

Designed specifically for in-plant areas where dirty and/or noisy operations are performed out in the open, the Downflo® WorkStation is commonly used for grinding, sanding, chipping, batch mixing, welding, and other industrial processes.

Applications

The Downflo® WorkStation is well suited for a variety of metalworking, woodworking and process manufacturing operations requiring effective source capture and high-efficiency filtration. Typical applications include:

  • Paint
  • Pigments
  • Composite materials
  • Limestone
  • Glass
  • Ceramics
  • Fiberglass
  • Granite
  • Wood
  • Steel
  • Grinding
  • Welding
  • Abrasive Blasting
  • Sanding
  • Aerospace
  • Fabricated Metals
  • Plastics



Flexible, Modular Dust Collection

Downflo®  WorkStations (DWST) fit anywhere on the plant floor and apply NO restrictions to worker movements or visibility. The full line of WorkStations is designed specifically for those in-plant areas where dirty and/or noisy operations are out in the open—grinding, sanding, chipping, batch mixing, or welding.

The Downflo WorkStation’s advantages are found in the collector’s exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media, the DWST delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

Triagonal Filter Shape

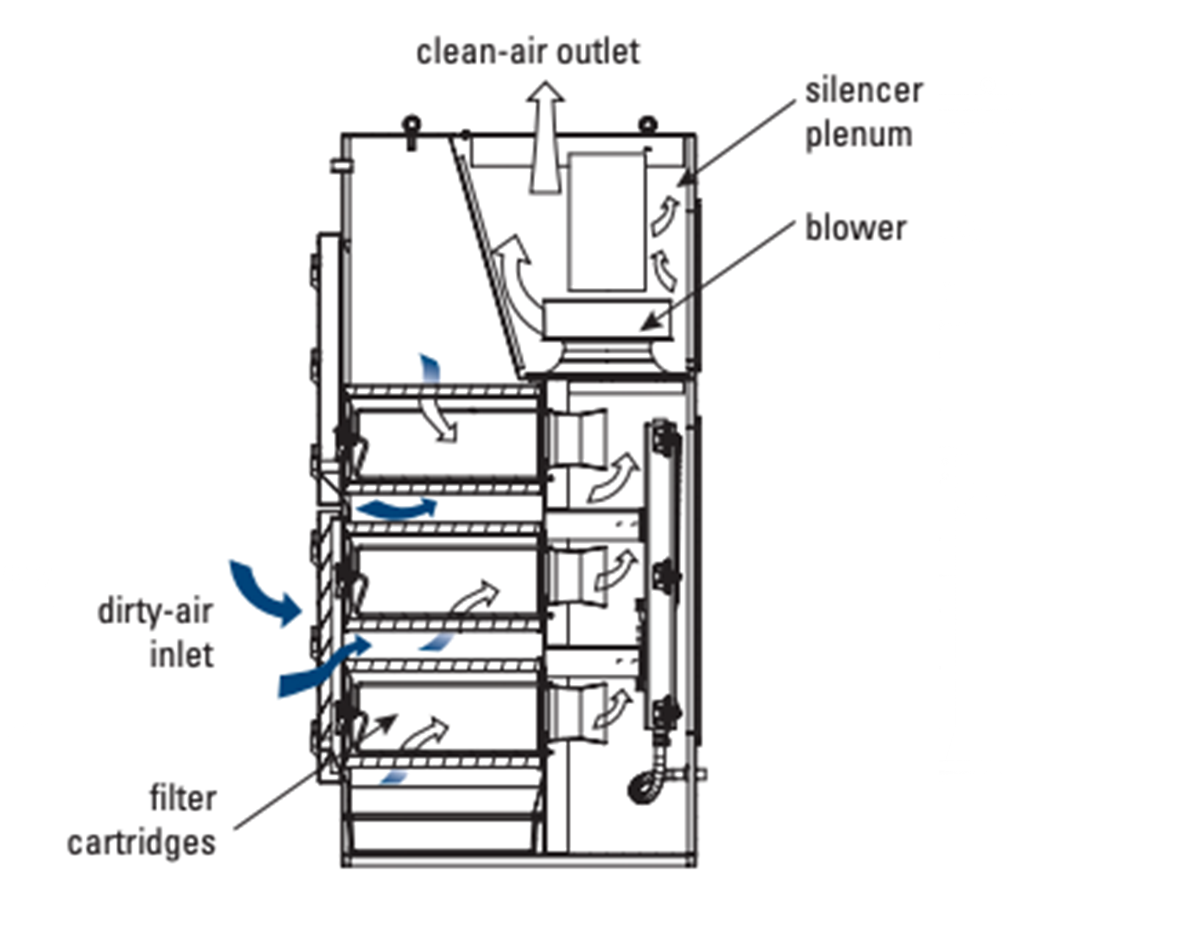

The goal of any pulse-cleaned dust collector is to remove the contaminant from the airstream and get the contaminant into a containment vessel. The unique filter shape positions more filter media at the bottom of the cartridge element, so pulse-cleaning energy directs the ejected dust toward its ultimate destination – the containment vessel.

Designed to help manage dust without restricting worker movement or visibility, the Downflo® WorkStations dust collection system (DWST) supports an efficient work environment. Whether you’re grinding, sanding, welding, or mixing, our advanced filtration technology is designed to enhance air quality and support compliance efforts – so you can focus on getting the job done right.

This dust collection system is designed to fit in most spaces and eliminate restrictions to worker movements or visibility. The full line of WorkStations is designed specifically for those in-plant areas where dirty and / or noisy operations are out in the open—grinding, sanding, chipping, batch mixing or welding.​​​​​​​​​​​​​​​​​​​​

The Downflo® WorkStation’s advantages are found in the collector’s exclusive design and proprietary components. Featuring a ledgeless design in combination with proprietary Ultra-Web® filter media, the DWST delivers exceptional performance in metalworking, woodworking, and process applications where high filtration efficiency and ledgeless construction is often a requirement.

DWS Offers: Flexible, Modular, Self-Contained Workstations

  • Proprietary Ultra-Web® cartridge filters provide cleaner air longer
  • Ledgeless construction minimizes dust build up inside the collector
  • Easy filter access requires no tools
  • Reversible louver inlets
  • No hoods or ductwork required

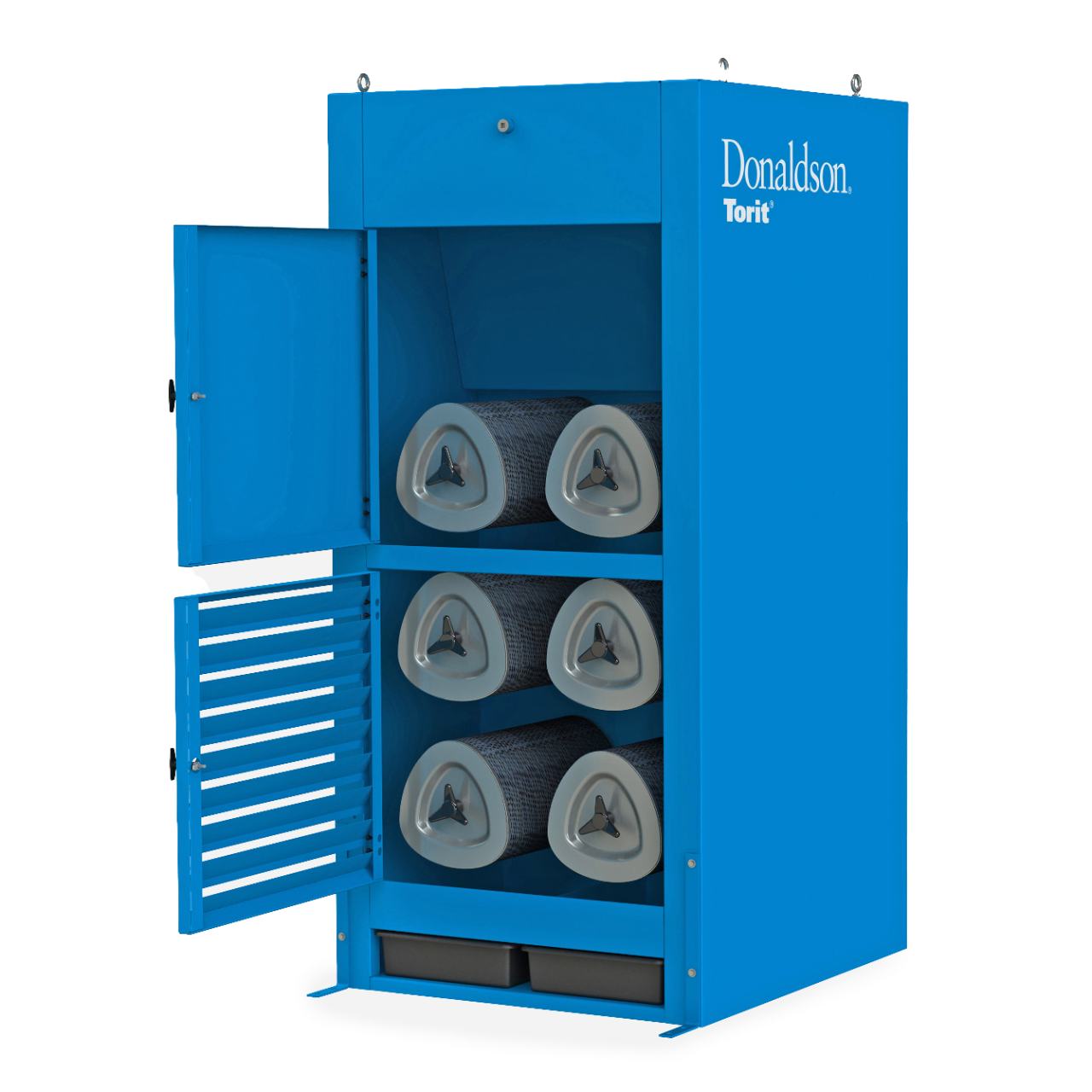

Downflo Workstation Dust Collector with its Door-Open and loaded with cartridges.

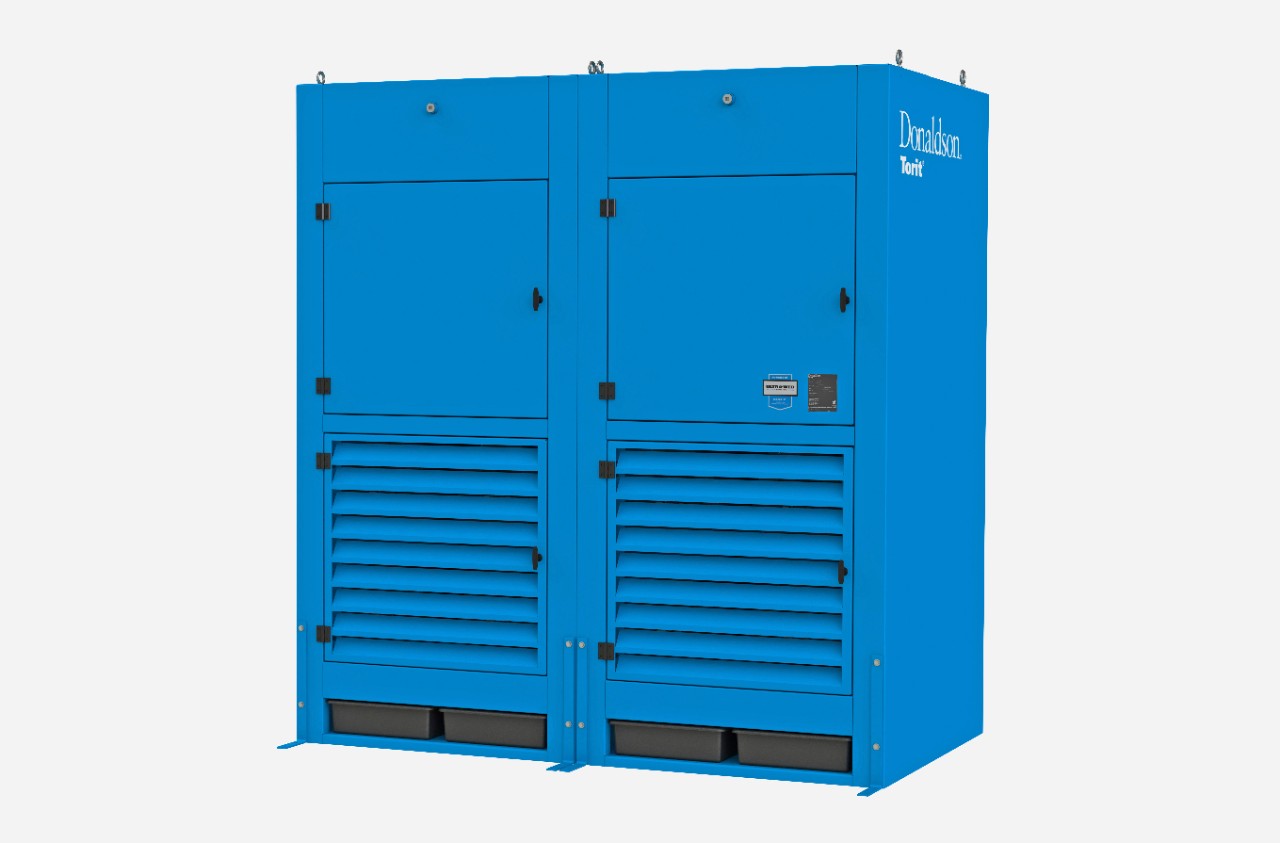

DWS Models 4-1 to 6-4

  • 8 standard model sizes
  • Customized sizes available
  • Many options and accessories



DWST Ambient

  • Heightened unit with bin arrangement for ambient air collection.



Engineered for Reliable Performance

The availability of Downflo Workstation models varies by region.  Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
