Overview

Donaldson's PP Filter Cartridge solutions, including polypropylene pleated liquid filter cartridges, offer a reliable and efficient method for particulate removal in various industries.

These pleated sediment filter cartridges are engineered for durability and performance, with robust construction, high filtration efficiency, and compliance with regulatory standards—making them a preferred choice for maintaining product purity and protecting process equipment.

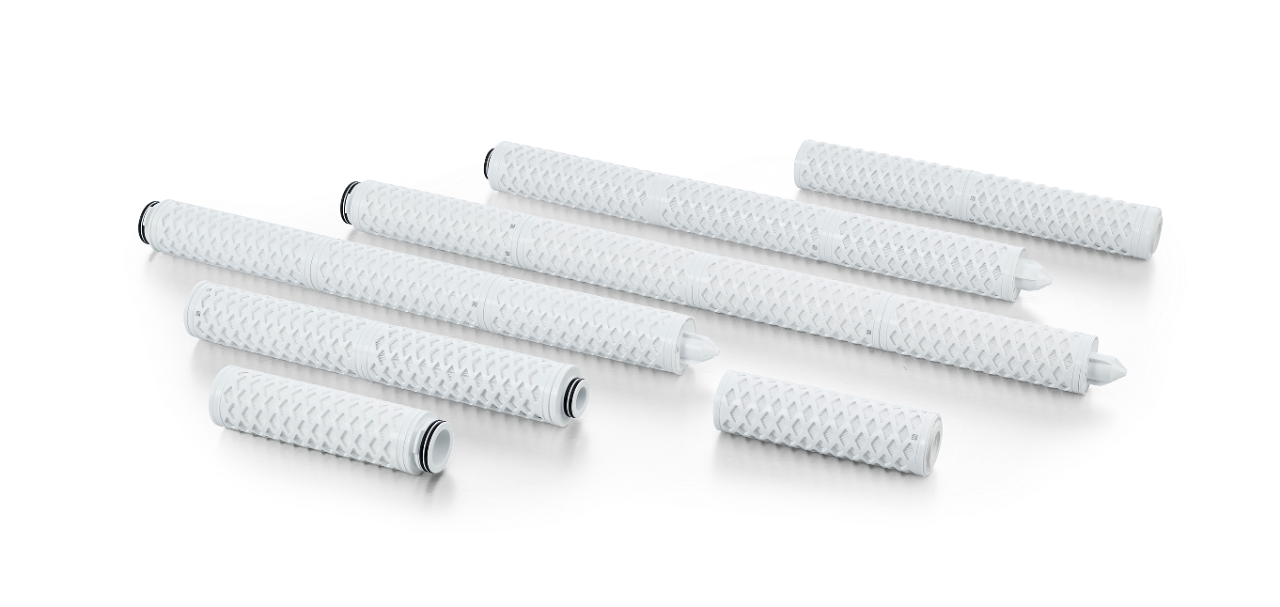

Donaldson's LifeTec™ polypropylene microfiber filter cartridge range features an advanced asymmetrical pleated depth media made from polypropylene microfiber. This design provides a graded pore structure, enhancing dirt-holding capacity and ensuring consistent filtration performance. The all-polypropylene construction offers broad chemical compatibility and low extractable levels, making these polypropylene pleated cartridges suitable for a wide range of fluids and applications, including use as a prefilter cartridge or as a pleated depth filter cartridge filter in critical processes.

Donaldson's polypropylene filter cartridges meet the EU and USA requirements for Food Contact Use in accordance with CFR (Code of Federal Regulations) Title 21 and EC/1935/2004 and subsequent amendments. The filter element is manufactured in accordance with the GMP requirements as defined in EC/2023/2006, has no migration of filter media, is non-fiber releasing, and is thermally welded.

All materials used do not contain any Substances of Very High Concern (SVHC) as defined in EC/1907/2006 and EC/65/2011.

LifeTec™ PP 100 N Liquid Filter Elements

The all-polypropylene construction of the LifeTec™ PP 100 N filter offers broad chemical compatibility and low extractable levels across a wide range of fluids and applications.

Features

  • Absolute particle removal
  • Manufactured in a Class 7 clean room facility
  • Asymmetrical pore structure for longer service life
  • Highly robust polypropylene construction protects against deformation
  • Excellent flow rate
  • Certified to NSF/ANSI Standard 42

Applications

Food and beverage filtration:

  • Bottled water
  • Soft drinks
  • Beer
  • Wine
  • Spirits
  • Syrups

Chemical purification:

  • Acids
  • Bases
  • Complexing agents
  • Alcohols, aldehydes
  • Etchants
  • Chlorinated and fluorinated solvents
  • Esters and ketones
  • Photolithographic liquids

LifeTec™ PP 100 CN Liquid Filter Elements

The Donaldson LifeTec™ PP100 CN was specifically developed for maximum safety, performance, and economics in protecting bottled water and soft drinks from Cryptosporidium and Giardia contamination.

This polypropylene pleated liquid filter cartridge has been tested and approved per NSF Standard 53 as an absolute barrier to Cryptosporidium and Giardia in processed food and beverage applications.

The 1-micron absolute-rated PP Filter Cartridge pleated filter element provides unmatched filtration performance, while its rugged, all polypropylene construction ensures durability and chemical compatibility, helping this polypropylene pleated cartridge withstand everyday hydraulic challenges in bottling applications.

Features

  • Absolute removal of Cryptosporidium and Giardia
  • Tapered pore structure for longer service life
  • Highly robust polypropylene construction protects against deformation
  • Manufactured in a Class 7 clean room facility
  • Excellent flow rate

Applications

Cryptosporidium control:

  • Purified bottled water
  • Bottled mineral water
  • Bottled spring water
  • Ingredient water

Food and beverage filtration:

  • Soft drinks
  • Beer
  • Wine
  • Spirits
  • Syrups

LifeTec™ PP N Liquid Filter Elements

The Donaldson LifeTec™ PP N filters offer broad chemical compatibility and low extractable levels in a wide range of fluids and applications. The LifeTec™ PP N filters deliver outstanding flow rates and high throughput, with nominal submicron particulate retention and high dirt holding capacity.

Features

  • Highly robust polypropylene construction protects against deformation
  • Manufactured in a Class 7 clean room facility
  • Outstanding flow rate
  • Extremely high dirt holding capacity
  • Asymmetrical filter matrix for longer service life
  • Certified to NSF/ANSI Standard 42

Applications

  • Bottled water
  • Soft drinks
  • Beer
  • Wine
  • Spirits
  • Syrups

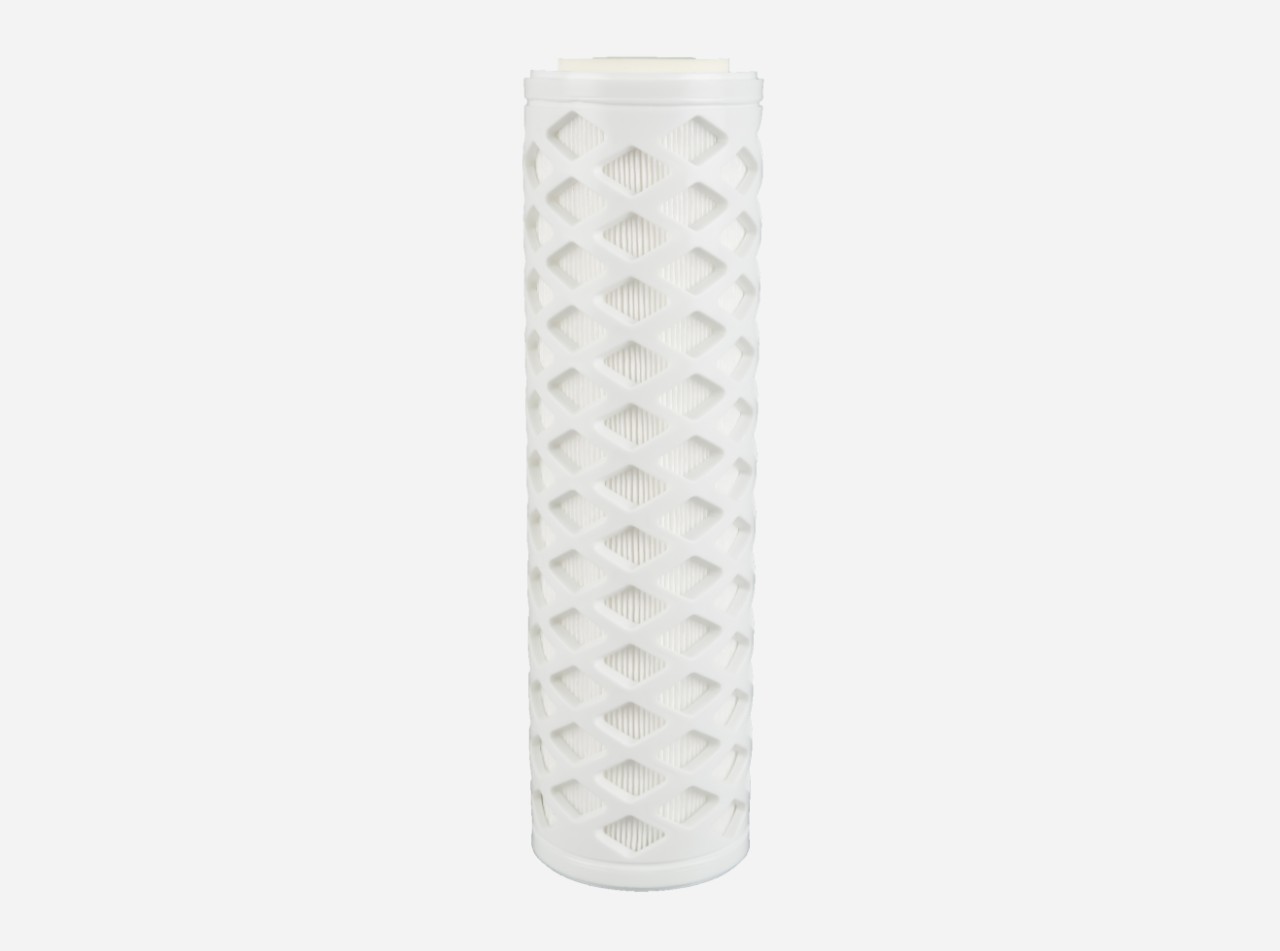

LifeTec™ PP-TF N Liquid Filter Elements

The durable design of the Donaldson LifeTec™ PP-TF N filter enables it to maintain consistent porosity and impurity retention throughout its service life without shedding or unloading contaminants. The integrated polypropylene microfiber filter cartridge structure enhances chemical resistance and contributes to its reliable performance as a prefilter cartridge in critical applications.

Features

  • Extremely high dirt holding capacity
  • Manufactured in a Class 7 clean room facility
  • Excellent flow rate
  • Regenerable
  • Highly robust polypropylene construction protects against deformation

Applications

Food and beverage purification:

  • Well water
  • Tap water
  • Mineral water
  • Soft drinks

Purification and filtration:

  • Cosmetics
  • Oils
  • Lubricants
  • Paints and dyes
  • Jet printer inks

Chemical purification:

  • Acids
  • Bases
  • Alcohols, aldehydes
  • Esters and ketones
  • Photolithographic liquids

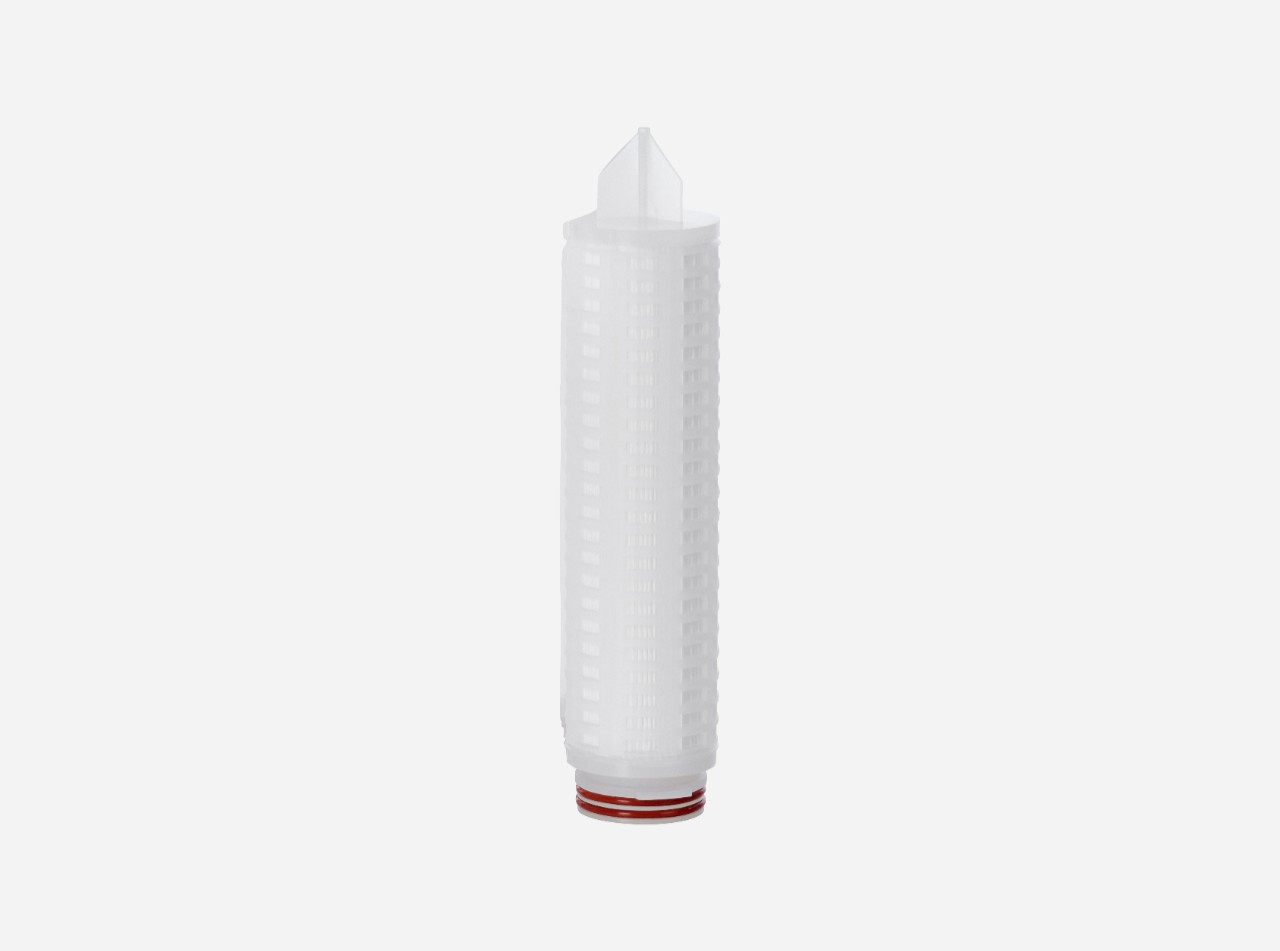

PP-Q Liquid Filter Elements

PP-Q filter elements deliver reliable nominal performance across a wide range of applications and industries. These high-quality polypropylene filter cartridges are manufactured in a white room environment to ensure consistent quality. All materials used in the PP-Q pleated sediment filter cartridges are compliant with FDA CFR Title 21 and meet USP Class VI plastics biological reactivity tests.

PP Filter Cartridges in the PP-Q series are produced in continuous 254 mm / 10 in. lengths and are available in all standard end cap configurations, making them compatible with a variety of systems.

Engineered for efficiency, these pleated depth filter cartridges significantly reduce particulate in process lines, helping to protect critical production equipment. Their pleated construction provides exponentially greater surface area than traditional melt-blown elements, resulting in higher dirt holding capacity, extended service life, and fewer changeouts.

Features

  • 100% polypropylene construction ensures broad chemical compatibility
  • Rigid, molded cage delivers superior structural integrity
  • Gradient, fixed pore structure increases dirt holding capacity and resists unloading under high differential pressure
  • 0.5 m² / 5.6 ft² of media surface per 254 mm / 10 in. length supports high throughput, effective particle retention, and reduced maintenance costs

Applications

Food and beverage purification

  • Bottled water
  • Soft drinks
  • Beer
  • Wine
  • Spirits
  • Syrups

Purification and filtration:

  • Cosmetics
  • Oils
  • Lubricants
  • Paints and dyes
  • Jet printer inks

Chemical purification:

  • Acids
  • Bases
  • Alcohols, aldehydes
  • Esters and ketones
  • Photolithographic liquids

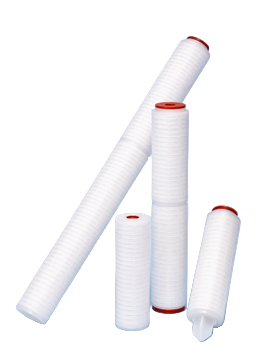

PP100-Q Liquid Filter Elements

PP100-Q filter elements deliver absolute-rated filtration performance for a wide range of applications across many industries. These pleated polypropylene filter cartridges are manufactured in a controlled white room environment, and all materials comply with FDA CFR Title 21 and meet USP Class VI biological reactivity standards.

Engineered to deliver exceptional particulate reduction, these absolute-rated depth filters help protect sensitive process equipment and maintain process efficiency. Compared to melt-blown filters, the pleated construction of PP100-Q provides exponentially more surface area, resulting in higher throughput, fewer changeouts, and reduced operational costs.

Features

  • 100% polypropylene construction ensures broad chemical compatibility
  • Rigid, molded cage enhances structural integrity under pressure
  • Gradient, fixed pore structure supports increased dirt holding capacity and resists unloading under high differential pressure
  • 0.7 m² / 7 ft² of media surface area per 254 mm / 10 in. length offers high throughput, reliable particle retention, extended service life, and reduced maintenance

Applications

Food and beverage purification:

  • Bottled water
  • Soft drinks
  • Beer
  • Wine
  • Spirits
  • Syrups

General filtration and process purification:

  • Cosmetics
  • Oils
  • Lubricants
  • Paints and dyes
  • Jet printer inks

Chemical filtration:

  • Acids
  • Bases
  • Alcohols, aldehydes
  • Esters and ketones
  • Photolithographic liquids

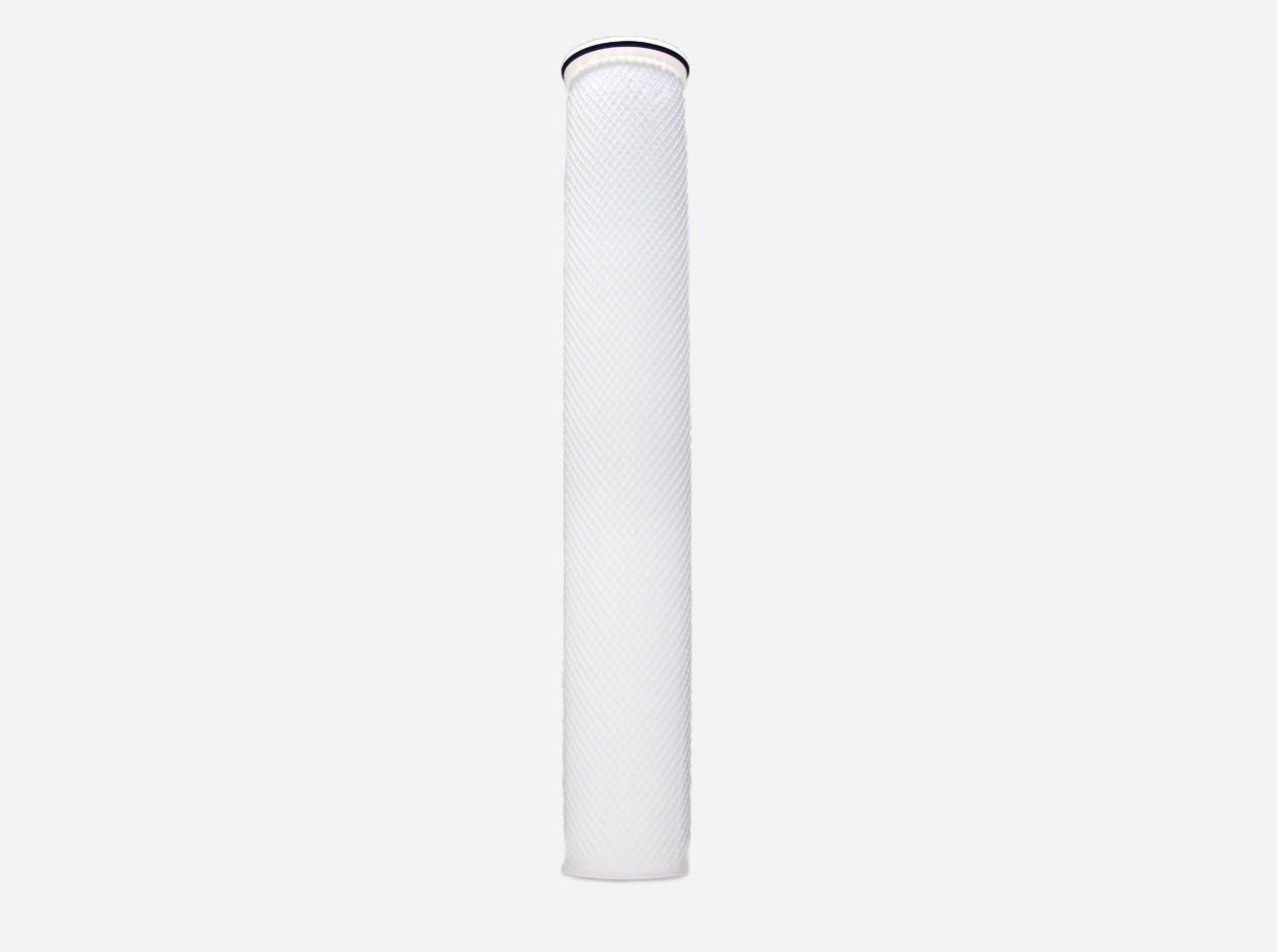

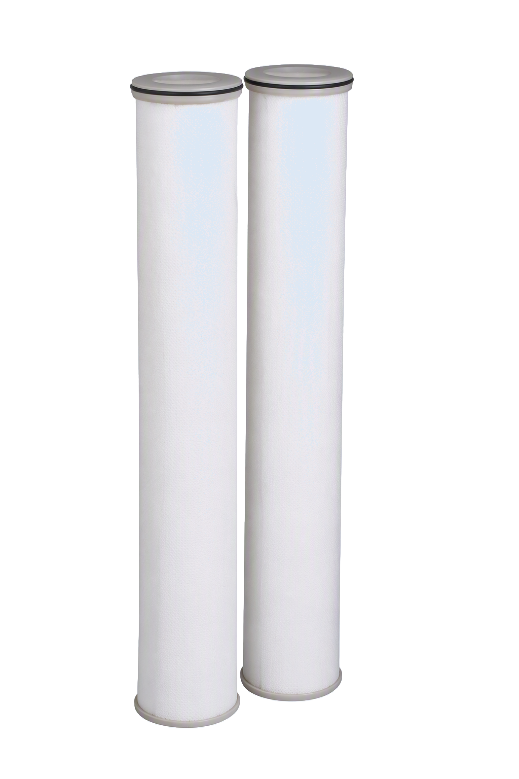

PP100-HF Liquid Filter Elements

Donaldson PP100-HF filter elements deliver high-flow, absolute-rated filtration performance for a wide range of industrial and sanitary liquid applications.

These high-capacity polypropylene filter cartridges are engineered with a 152.4 mm / 6 in. outer diameter, enabling significantly higher throughput compared to standard 50.8–76.2 mm / 2–3 in. liquid filter cartridges. Available in 1016 mm / 40 in. and 1524 mm / 60 in. lengths, PP100-HF elements are designed for quick changeouts, featuring plug connection end caps and integrated handles for user-friendly maintenance.

Features

  • Developed for cost-effective pre-filtration of process liquids
  • Absolute-rated filter media for consistent particle retention
  • Low clean pressure drop for energy-efficient operation
  • Fast and easy installation with plug-style end caps and integrated handles

Applications

  • Food and beverage purification:
  • Bottled water
  • Breweries and spirits
  • Dairy and yogurt
  • Food ingredients
  • Pet food manufacturing
