Overview
What is a Cabinet Series Baghouse Dust Collector
Cabinet Series dust collectors are self-contained, intermittent-duty collectors with envelope style filters. The Cabinet series collectors provide highly efficient, low maintenance air cleaning. Filters are cleaned using the standard manual filter shaker.
Designed to increase the versatility of the collector, standard options include a dust drawer, hopper package for a 5-gallon pail or 55-gallon drum, indoor and outdoor exhaust deflectors, HEPA filter packs, and exhaust silencers. Four filter media choices and three construction options are among the many options available to customize the collector to the specific application.The Donaldson Torit® Cabinet Dust Collector's efficient, compact design covers a wide range of bag collector applications. Replacing dust collector bags is fast and tool-free with the one-piece EZ Filter Pack™.
Features
- Reliable and cost-efficient filtration on nuisance dust generated in industrial operations
- High collection efficiency of 99.9% allows recirculation of heated and/or air-conditioned plant air
- Manually-operated filter shaker makes filter cleaning easy
- All 60 Hz motors 1 HP and larger are compliant with the Energy Independence and Security Act of 2007 (EISA)
- Quick access to dust drawers and dust pails provides easy and safe maintenance

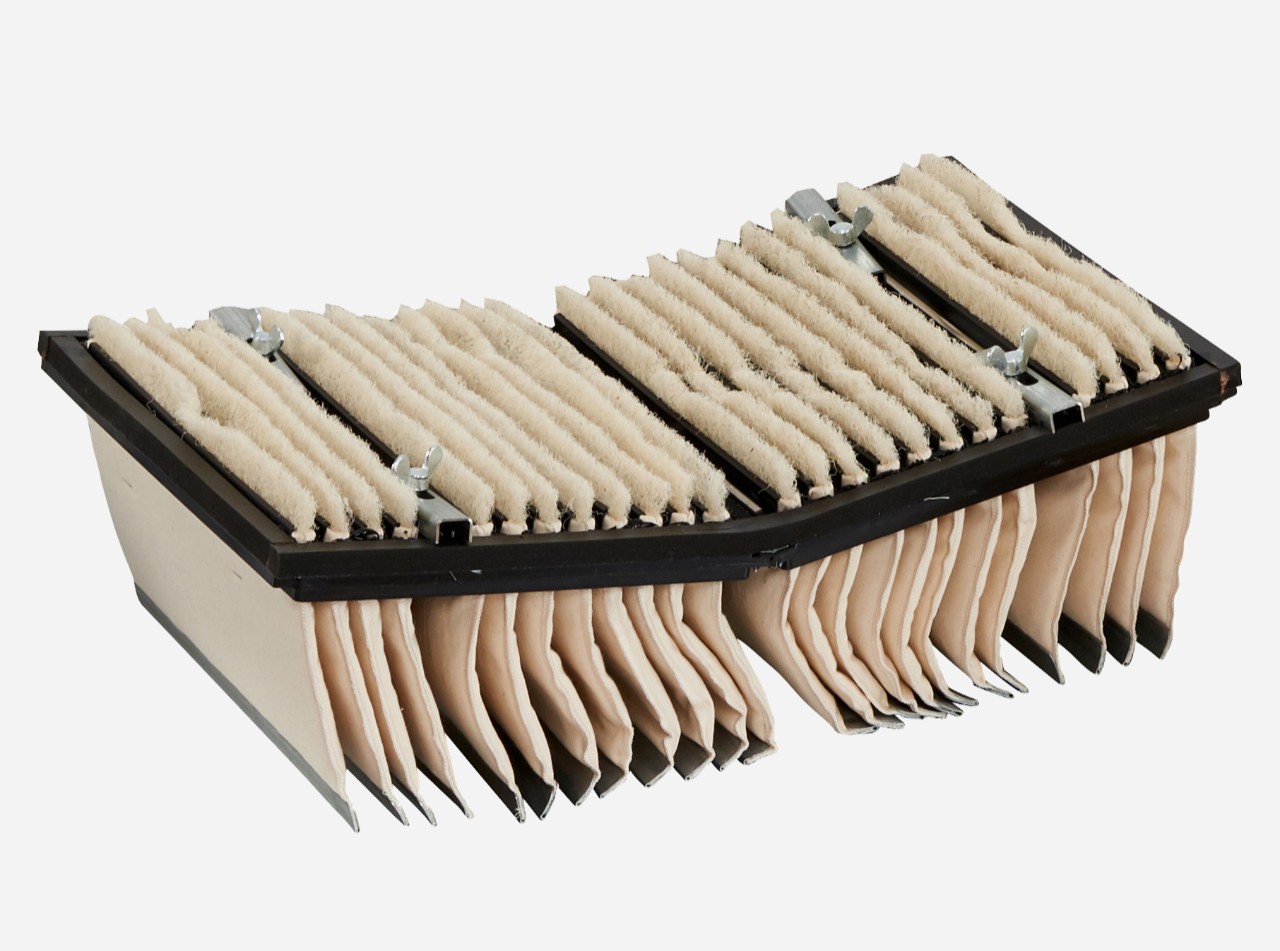

EZ Filter Pack
Filter changes have never been easier with the EZ Filter Pack™, a one-piece, lightweight filter bag that installs without tools and provides a positive pressure seal
Excellent Efficiency on Nuisance Dust for Intermittent-Duty Applications
- Abrasive blasting
- Buffing & polishing
- Dental labs
- Grinding
- Machining
- Metalworking
- Packaging
- Precious metals
- Textiles
Easy Maintenance
- Factory installed filter packs include standard cotton sateen bags, polyester inserts for better airflow, galvanized bag clips, slide latches, and center support bar
- One-piece construction includes a closed-cell urethane gasket to ensure a positive pressure seal
- Four filter media selections and three construction choices provide a variety of options to customize the unit for your specific application
*EZ Filter Pack available in the Cabinet Series 50-80 only. Not available on Cabinet 90.
| Cabinet Series Features | Standard | Optional |
|---|---|---|
| Heavy-Gauge, Fully-Welded Cabinet | ||
| Galvanized Shaker Bar | ||
| Factory Installed Cotton Sateen Filter Packs | ||
| Dynamically Balanced Steel Fan Wheel | ||
| Inlet Locations on Top and All Three Sides | ||
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | ||
| TEFC Motor* | ||
| 115/230/60/1 or 208-230/460/60/3 Voltages (Availability Based on Collector Size) |
||
| 10-Year Warranty | ||
| Brass Shaker Bar | ||
| Aluminum Fan Wheel | ||
| 208.2 mm / 55 gal Drum Pack | ||
| Slide Gate | ||
| Hopper or Dump Hopper | ||
| Inlet Collar Kit | ||
| Exhaust Deflector | ||
| Chamber, Attenuator, or Stack Silencer | ||
| Suction-Tube Assembly | ||
| Outrigger Pack | ||
| HEPA Filter | ||
| Motor Starter | ||
| Casters | ||
| Magnehelic** Gauge | ||
EZ Filter Pack (Cabinet 50-80 only)
|
*All 60 Hz motors 1 HP and above are EISA compliant.
**Magnehelic® is a registered trademark of Dwyer Instruments, Inc.
Looking to improve dust control? Contact your Donaldson Representative to find the right Cabinet Series model for your application. Availability may vary by region.
All products, specifications, and availability are subject to change without notice and may vary by region or country. Compatibility with combustible dust depends on local regulations. Certain products may not be suitable for combustible dust applications in some locations. Please contact your Donaldson Representative for guidance on product suitability in your area.
