Overview

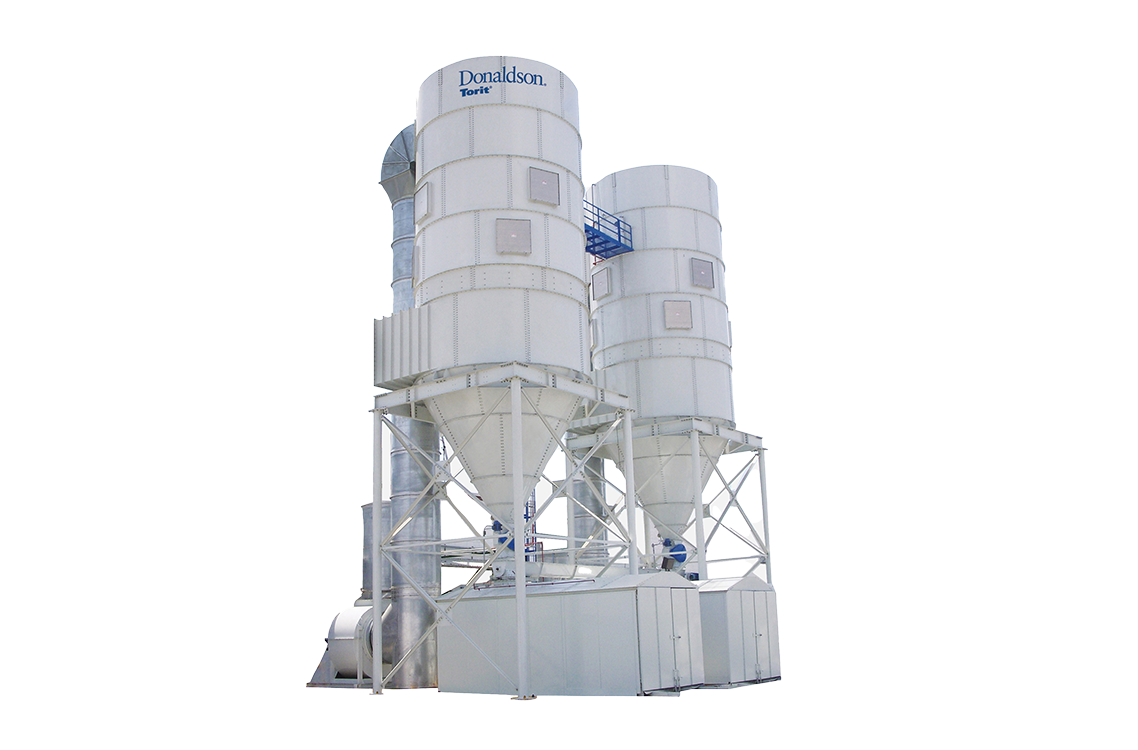

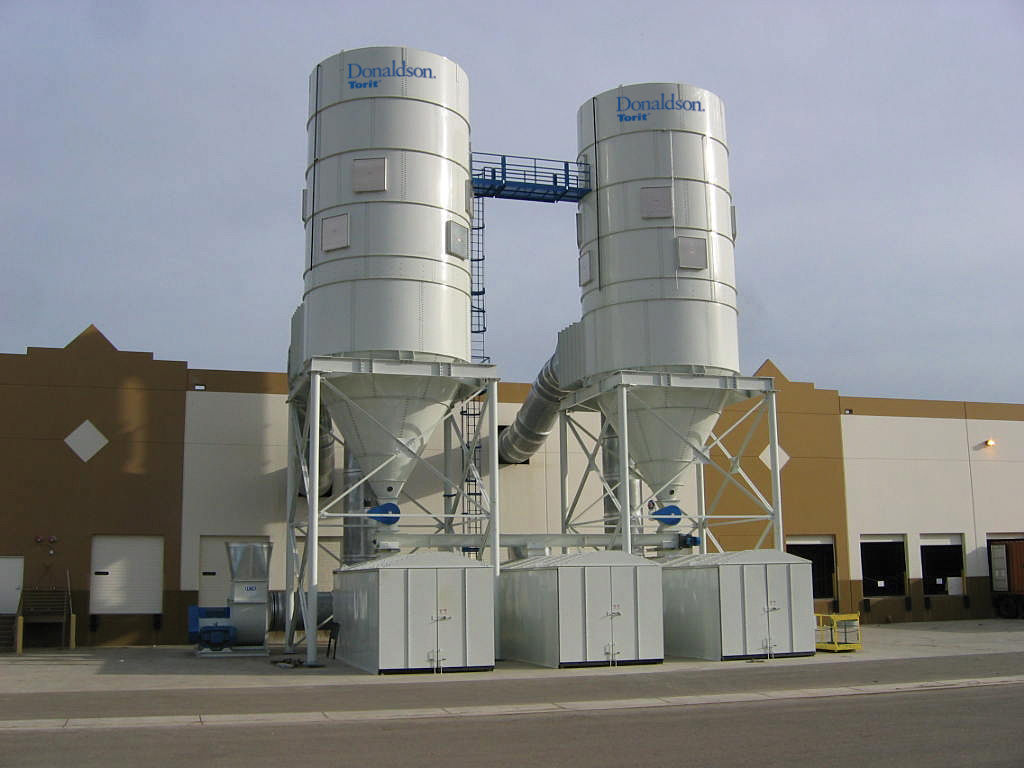

What is an LP Baghouse Dust Collector
A Donaldson® LP Baghouse Dust Collector is a reverse-air baghouse designed for continuous-duty, high-airflow dust collection applications where customers want dependable operation, low maintenance, and do not want to rely on compressed air for filter cleaning. The LP cleaning system does not require compressed air. This can help reduce utility costs and eliminate maintenance associated with pulse-cleaning systems. The key differentiator is the patented cleaning arm with a flow-stop plate that prevents dust from being re-entrained onto adjacent bags after cleaning.
Applications
The Donaldson® LP Baghouse is designed for high-airflow dust collection applications in grain processing, bulk material handling, minerals processing, wood products manufacturing, foundries, chemical processing, and other industrial operations that generate large volumes of dust. Its continuous reverse-air cleaning design makes it well suited for facilities seeking reliable performance, low maintenance requirements, and reduced energy consumption.
Benefits of the LP Baghouse
- Continuous reverse-air cleaning helps maintain process airflow during operation
- Flow-stop plate technology minimizes dust re-entrainment and reduces pressure drop
- No compressed air required for filter cleaning
- Dura-Life™ filter bags provide extended filter life and fewer changeouts
- Fewer moving parts help reduce maintenance and downtime
- Single inlet, outlet, and hopper design can simplify installation and can help lower system costs
The Donaldson Torit® LP Baghouse dust collector provides superior bag filter cleaning performance in a reverse air design. This unique system design reduces your maintenance cost and downtime.
The LP advantage has a cleaning arm with a flow-stop plate that keeps air from flowing through the bag filters before and after cleaning. Dust from cleaned bag filters cannot be re-entrained onto adjacent bags, resulting in lower pressure drop and reduced energy costs. Combine this with Dura-Life™ “Twice the Life” bag filters as standard and this LP Baghouse is better than any other reverse air collector on the market today.
Features
- Flow-stop plate cleaning arm reduces dust re-entrainment
- Single inlet, outlet and hopper reduces ducting and hopper outlet costs
- LP cleaning provides a constant process airflow and fewer moving parts, which reduces maintenance and disruptions to system airflow
- LP cleaning system requires no compressed air
- Optional live bottom hopper grinds dusts to prevent bridging in hopper
- Award winning Dura-Life “Twice the Life” bag filters
Contact your Donaldson Sales Representative to order. Availability varies by country.
| Collector Design | Standard | Optional |
|---|---|---|
| Clean-Side Bag Removal | ||
| Walk-In Clean Air Plenum | ||
| 10-Gauge Carbon Steel Construction on 72LP - 252LP | ||
| 3/16" Carbon Steel Construction on Panelized 312LP - 684LP | ||
| 1/4" Carbon Steel Construction on Panelized 780LP - 882LP | ||
| Heavy Duty 7 gauge plate Tubesheet | ||
| Heavy-Duty 3/16 Gauge Plate or Greater Tubesheet on Panelized 312LP - 882LP | ||
| Rated - 17" (431.8 mm) Water Gauge on 72LP - 252LP | ||
| Rated - 20" (508.0 mm) Water Gauge on 312LP - 882LP | ||
| Internal Sweep Arm Cleaning Mechanism | ||
| Explosion-Proof Reverse Air Fan & Motor* | ||
| Aluminum Fan Wheel | ||
| Flanged Inlet, Outlet & Body | ||
| Easy-Lift Lifting Ears | ||
| Tangential Inlet on 72LP - 252LP & 684LP - 882LP | ||
| Involute Inlet on Panelized 312LP - 594LP | ||
| Ladders and Platform Assemblies | ||
| Stainless Steel Construction |
| Bags and Cages | Standard | Optional |
|---|---|---|
| Dura-Life Twice the Life Felt Snap-In Bag Filters | ||
| Galvanized Snap-In Bag Cage | ||
| Variety of Filter Bag Media Options |
| Paint System | Standard | Optional |
|---|---|---|
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | ||
| Durable Industrial Finish Exterior | ||
| Standard Colors: Torit Blue or Storm White | ||
| Premium Duty Finish | |
|
| Custom Colors |
| Hopper Design | Standard | Optional |
|---|---|---|
| 60° Hoppers | ||
| Flanged Hopper Discharge (per specification) | ||
| Hopper Access Panel | ||
| Coupling for High Level Indicator | ||
| High Level Indicator |
| Support Structure | Standard | Optional |
|---|---|---|
| 762 mm / 30 in. Clearance Leg Pack (Beneath 609.6 mm / 24 in. FT Valve) | ||
| Custom Clearance Leg Packs |
| Electrical Controls, Gauges, and Enclosures | Standard | Optional |
|---|---|---|
| Magnehelic** Gauge | ||
| Photohelic** Gauge | ||
| Photohelic Gauge (Weatherproof) | ||
| iCue™ Connected Filtration Service |
| Safety Features | Standard | Optional |
|---|---|---|
| Sprinkler Kit Assembly | ||
| Explosion Vents | ||
| Interior Light for Walk-In Plenum | ||
| Ladder Saftey System |
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty |
*All 60 Hz motors 1 HP and above are compliant with EISA.
**Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.
Frequestly Asked Questions
Q. How Are Dura-Life Bags Different from Standard Polyester Bags?
A. Dura-Life bags are made from polyester material that is created through a hydro-entanglement process instead of a needle punch process. The hydro-entanglement process creates a more consistent and uniform filter material. The material is comparable in thickness to standard polyester, but weighs about 1/3 less. The fibers are smaller and the hydro-entanglement process creates a loftier and lighter weight fabric that filters more effectively.
