Overview

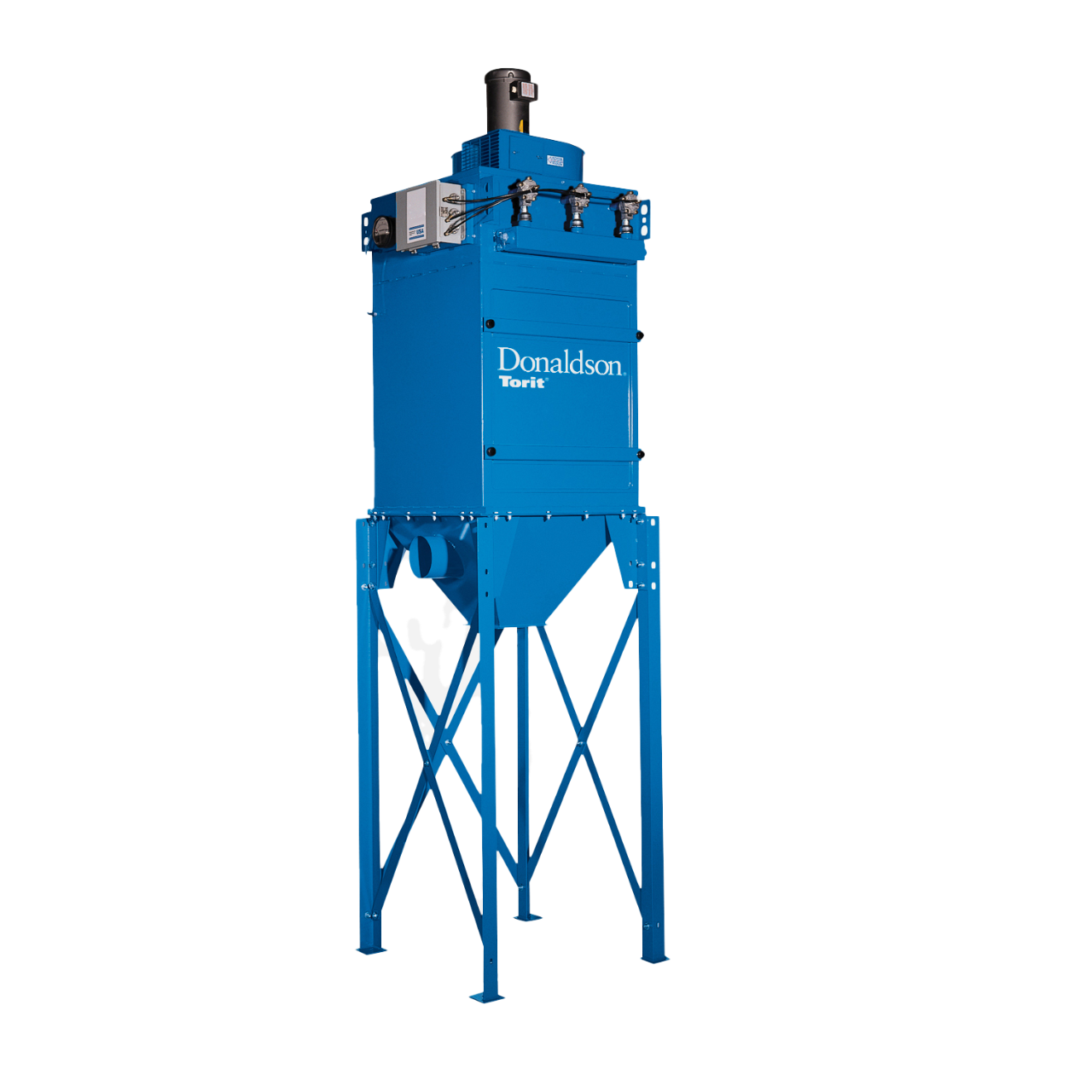

T​he Donaldson TD series features a continuous-duty style cartridge dust and fume collector using pulse jet technology for online filter cleaning. Our TD collectors offer efficient filtration for applications ranging in size from 510 to 3398 m3/h / 300 to 2000 cfm. Ultra-Web® cartridge filters featuring fine fiber technology optimize high filtration efficiency and long filter life.

  • Low operating pressure drop to support reduced energy costs
  • Optional tangential inlet on round TD housings pre-separates dust for high loading applications
  • Helps support OSHA Clean Air Standards

Equipment Options

Cartridge Filter Options:

  • Ultra-Web FR (MERV 15)*
  • Fibra-Web (MERV 14)
  • Ultra-Web SB (MERV 15)*
  • Torit-Tex (MERV 16)
  • Ultra-Tek (MERV 12)

Hopper Discharge:

  • Slide Gate Pack
  • 18.9 L / 5 gal Pail Pack
  • 208.2 L / 55 gal Drum Cover
  • Rotary Airlock
1, 2, 3, 5, 7.5, and 10 HP Blowers Photohelic®† Gauge
Solid-State Timer Bolt-On Support Legs
Adjustable Damper (Blower) Inlet Adapters
Explosion Vents Magnehelic®† Gauge

*The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 36 meters per minute / 118 feet per minute and loading up to 101.6 mm / 4 in. water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency. MERV 15 available in U.S. only.** Based on clean filters.

†Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.

Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
