Overview

Working with materials that create sticky or agglomerative dust can be a challenge. To help prevent the downtime and hours of clean-up caused by a clogged filtration system, you need dust control solutions specifically designed to handle the challenging dust.

Easy Installation — Ships with bags installed.

Flexible Design — Allows installations in work areas with low headroom or a small footprint and allows the Torit® Backward Inclined fan to be mounted on top or side as a custom option.

Reduced Downtime — Long-lasting filters, quick filter replacements, and Donaldson’s Industrial Filtration Services help you optimize run-time.

Smart Collector – Powered by iCue™ Connected Filtration Technology, your Smart Collector provides operational insights through automated alerts and a dashboard that’s accessible from your computer or smart devices. It automates data capture for compliance reporting, provides valuable insights to optimize equipment performance, and enhances service quality through data-driven support.

Unique Filter Bag Improves Efficiency

The Dalamatic Dust Collector Series uses Dura-Life™ bag filters in a unique envelope shape that provides greater movement of the bag to dislodge challenging dust cakes. With better surface loading, Dura-Life bags provide improved pulse cleaning and a low pressure drop coompared to other models, which results in extended bag life, helps save maintenance time and cost, supports energy savings and filtration efficiency. Dura-Life Filter Bags provide twice the life of standard 16 oz. polyester bags.

Reduce Filter Changeout Time with the Advanced Technology of the Donaldson Dalamatic® G2 Dust Collector

The Donaldson Dalamatic® G2 baghouse dust collector is the latest innovation designed to help you effectively control challenging and sticky dust. This continuous-duty collector is simple to install, easy to maintain, and provides a low total cost of ownership.

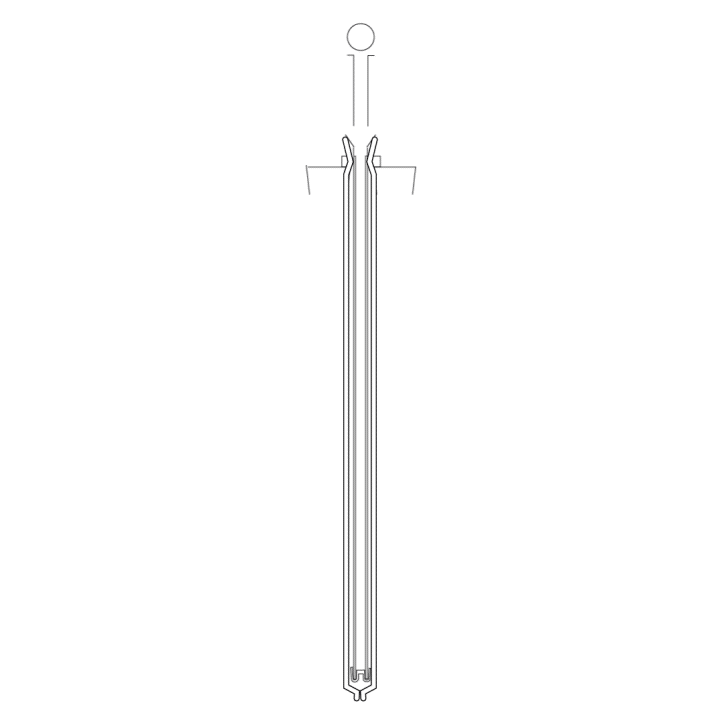

Dura-Life™ bag filters in a unique envelope shape provide greater movement of the bag to dislodge challenging dust cakes. Dura-Life™ bag filters in a unique envelope shape provide greater movement of the bag to dislodge challenging dust cakes.

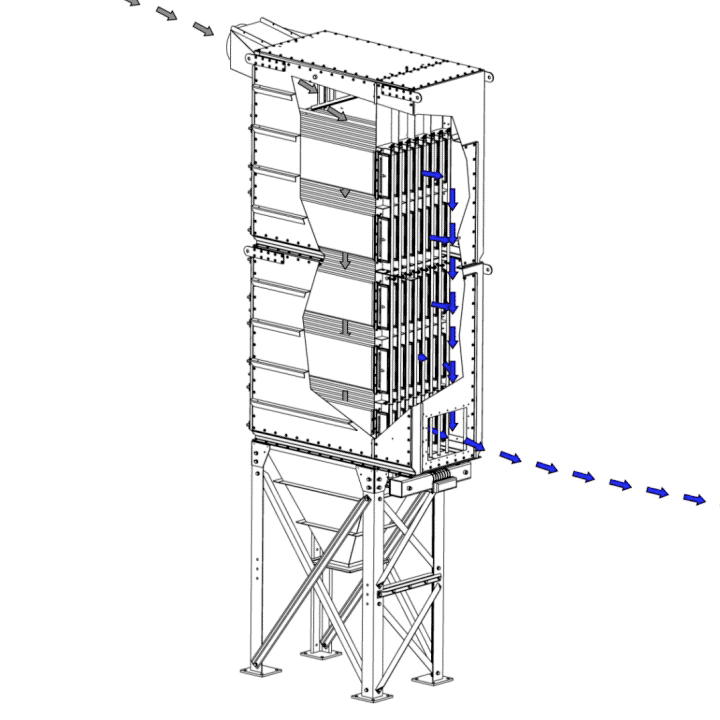

Downward airflow in the DLMC G2 promotes material drop out, which results in a lower pressure drop and longer filter life leading to a lower total cost of ownership. Downward airflow in the DLMC G2 promotes material drop out, which results in a lower pressure drop and longer filter life leading to a lower total cost of ownership.

Simplified Maintenance — With easy-open hinged doors and access from the production (or dirty-air) side, there is no need to remove jet tubes/blowpipes for service or pull caked filters through a tight tube sheet hole. The cage stays in the collector during filter change-outs, making replacement easy and light. Compared to earlier models, filter changeout times are reduced by up to 75% with 20% fewer filters to replace.

Low Total Cost of Ownership — The Dalamatic G2 collector supports low total cost of ownership with reduced maintenance costs and few filters to buy over the life of the collector. The G2’s reduced compressed air consumption makes it one of the best collectors in the industry.

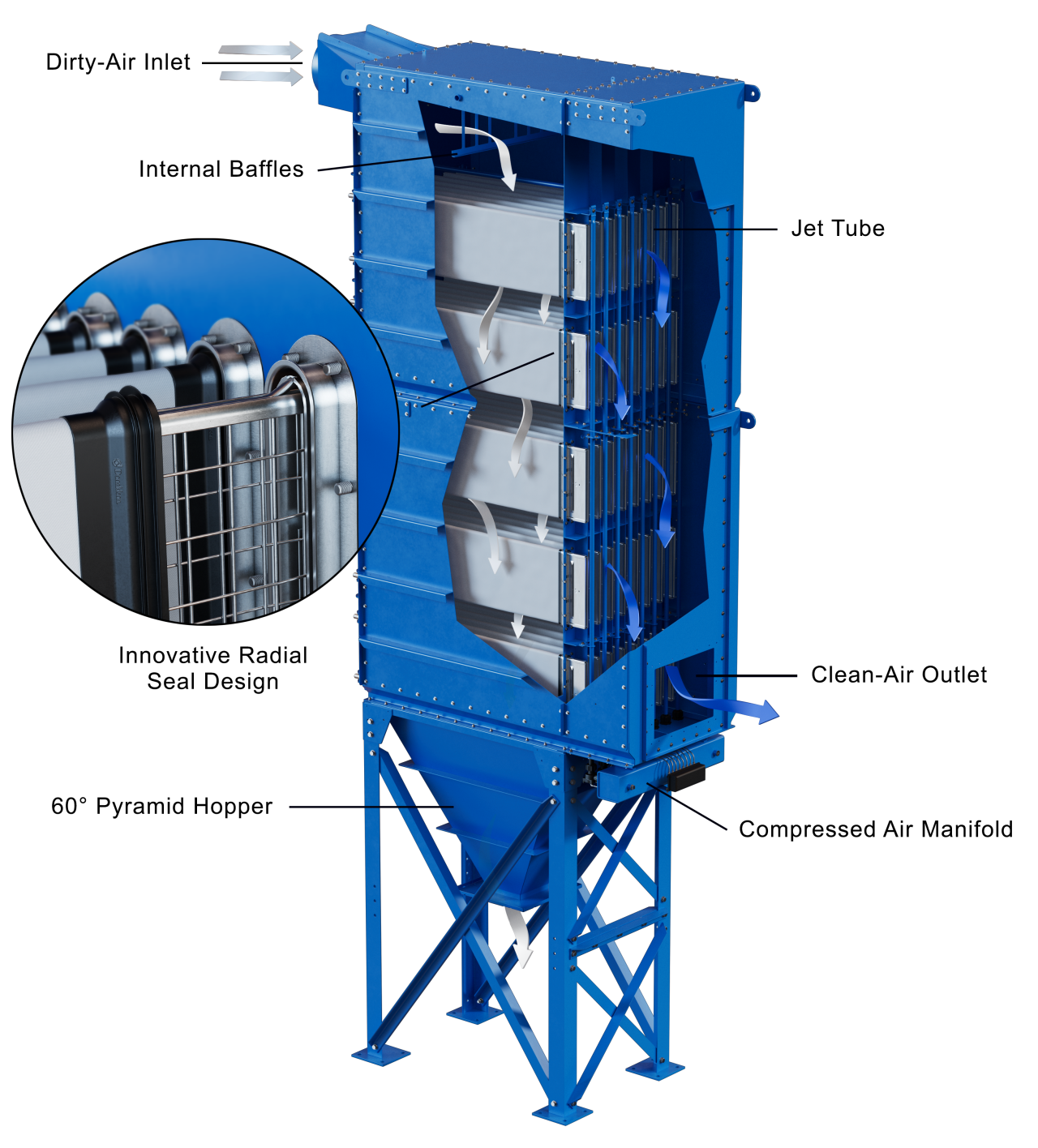

Radial Seal Technology Reduces Changeout Time

The Dalamatic G2 system features a revolutionary Radial Seal filter design and fixed cages, which reduce the number of steps required in a filter change from 10 to 5. That reduces the time for filter changeouts by up to 75% compared to earlier designs.

The availability of Dalamatic dust collector models vary by region.  Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.



Typical Applications

  • Crushing/milling
  • Material handling
  • Transport belts
  • Elevators
  • Weighing/sacking
  • Drying
  • Grinding
  • Mixing/blending



Typical Materials

  • Minerals
  • Grain
  • Animal feed and supplements
  • Cattle Feed
  • Pharmaceuticals
  • Gypsum
  • Cement
  • Sand
  • Paper
  • Rice
  • Wheat
  • Wood
  • Food

Collector Design Standard Optional
Mild Steel Construction
Horizontal Bag Removal
High Temperature Construction
Mountable Fan



Bags and Cages Standard Optional
Dura-Life Twice the Life Polyester Felt Bags
Variety of Bag Media Options
Anti-Static Bag Filters



Paint System Standard Optional
Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance
Premium Duty Finish
Custom Colors



Hopper Design Standard Optional
Pyramid Hoppers
Single-Outlet Hopper



Support Structure† Standard Optional
Standard Leg Pack
Leg Extensions



Electrical Controls, Gauges & Enclosures Standard Optional
Solid-State Control Panels and Valves in NEMA 4 Encl.
Solid-State Control Panels and Valves in NEMA 9 Encl.
Control Panels and Valves with Heater in NEMA 9 Encl.
Magnehelic* Gauge
Solenoid Enclosure NEMA 9
Photohelic®* Gauge
Delta P Control, Delta P Plus Control
Compressed Air Filter and Regulator
Donaldson’s Industrial Filtration Services



Saftey Features Standard Optional
Sprinkler Pack
Explosion Vents



Warranty Standard Optional
10-Year Warranty



All products, specifications, and availability are subject to change without notice and may vary by region or country. Compliance with food industry regulations depends on local legislation. Certain products may not be suitable for food processing applications in some locations. Please contact your Donaldson Representative for guidance on product suitability and regulatory compliance in your area.

† Donaldson Torit equipment is designed to IBC guidelines for specific wind speed exposure and seismic spectral acceleration at grade level.
* Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc
