Overview
The Donaldson PowerCore™ CP Series dust collector delivers powerful filtration performance in a compact design. Its innovative construction requires less steel and helps optimize floor space, contributing to low operational costs.
The key is PowerCore filter packs. These packs combine Donaldson's Ultra-Web® media technology with a rugged fluted-media configuration to deliver extended service life, efficient cleaning, and resistance to bridging.
Small
Bin vents are designed to fit into the tightest spaces.
Smart
An optimized airflow management system delivers optimal pulse cleaning while minimizing airflow restriction.
Cost-Effective
Innovative PowerCore filtration technology designed to help reduce freight and installation costs, filter changeouts, maintenance costs, and eliminate entry requirements for filter changes.

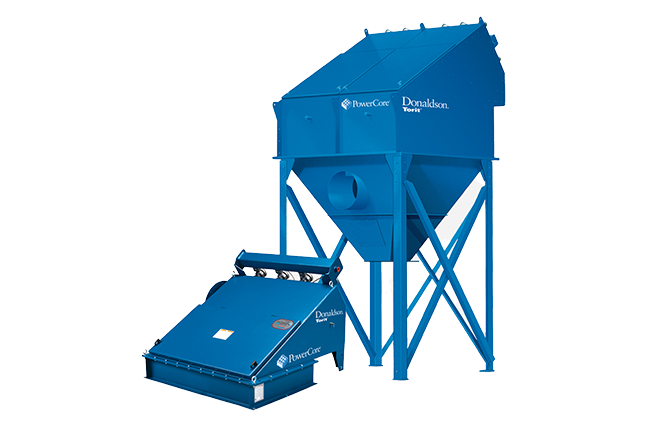

Today’s streamlined and lean manufacturing facilities demand peak performance even within the smallest spaces. Torit® PowerCore dust collectors are available as standalone models (CPC) that can be ducted to many different applications, as well as bin vent models (CPV) used on applications like silos, conveyor transfer points, conveyor discharges, blenders and mixers.
A standalone PowerCore CPC Series dust collector is 50% smaller than a traditional baghouse and a CPV bin vent collector is up to 70% smaller than other bag bin systems. With the PowerCore technology, you can save space, install at point of use, eliminate duct work and replace a large central dust collector.
Standalone
The PowerCore CPC dust collectors are available in a range of airflows from 1,189 to 56,067 m3/h / 700 to 33,000 cfm, use less floor space and fit into tight spaces.
Bin Vent
Torit PowerCore CPV bin vent systems, with airflows of 765 to 13,932 m3/h / 450 to 8,200 cfm, deliver powerful technology in a small package. The comparison to traditional bag-style bin vents is dramatic. CPV bin vent collectors are almost 70% shorter than other bag-style bin vents and effectively address the frequent challenge of tight space limitations. These bin vents can be installed at point-of-use on silos, conveyor transfer points, conveyor discharges, blenders and mixers.
Smart Collector
This collector is enabled with iCue™ Connected Filtration Technology. The system continuously tracks your equipment providing performance details, actionable insights, and alerts directly to your personalized dashboard on your connected device. You can leverage real-time data and analytics to help maximize uptime, increase maintenance efficiency, and manage your operation’s critical compliance data.
Powercore™ Filter Pack—not a Bag, Not a Cartridge
An entirely new approach to dust collectors, the PowerCore filter pack is small, lightweight, and easily handled. Tired of changing big, dirty filter bags? One 178 mm / 7 in. PowerCore filter pack replaces up to SIX 2.4 m / 8 ft standard fabric filter bags. Removed with one hand and no tools in minutes—not hours or days—PowerCore filter packs save time, maintenance and money. The PowerCore filter pack's obround shape, in conjunction with Donaldson's unique Ultra-Web® media, traps more dust on the surface of the media flutes than conventional filter bag materials. Fluted channels are alternatively sealed allowing air to enter through an open flute (red arrow) and forcing it to exit an adjacent flute (blue arrow). Fluted media construction prevents bridging in fibrous or agglomerative applications.
PowerCore Filter Pack Replacement — Easy. Fast. Clean. No Tools, Cages or Entry Required
- Lift up filter access door (clean side of the system).
- Loosen the captive hardware and remove the pulse accumulator.
- Lift out the filter pack for easy replacement.
Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
Frequently Asked Questions:
Q. Is the PowerCore Filter a Bag or a Cartridge?
A. The PowerCore filter is neither a bag nor a cartridge. It’s a filter pack with a handle. We’ve configured the media into a corrugated flute structure, which not only makes the pack rigid and sturdy, but allows more media to be used effectively in a smaller volume. The media is then rolled into an “ob-round” shape that is only 17.8 mm / 7 in. deep by 55.88 mm / 22 in. long. This dust collector has been designed to replace conventional baghouses with fabric or pleated filter bags. You’ll be amazed at how easy it is to change out the PowerCore filter packs.
Q. How Can the PowerCore™ CP Series Collectors Be So Much Smaller Than a Traditional Baghouse?
A. There are two reasons the Torit PowerCore CP Series collectors are smaller: the filter packs and the collector design. One 17.8 mm / 7 in. PowerCore filter pack replaces six traditional 2.4 m / 8 ft fabric filter bags. We are able to include a large amount of filter media area in the 17.8 mm / 7 in. space because of the unique corrugated configuration method. With shorter filter packs, the size of the collector can be reduced. The collector is designed to be smaller than traditional baghouses. By engineering the airflow patterns inside the collector, we have been successful in reducing the amount of space required while maintaining excellent filtration performance.
Q. What Kind of Dust Can Torit PowerCore CP Handle?
A. We’ve tested and approved Torit PowerCore for many industries where baghouses are typically applied, including:
- Cement & Gypsum
- Food Products
- Mining & Quarry
- Grain – Milling & Processing
- Paper & Packaging
- Plastics
- Glass
- Textiles
- Rubber
- Wood – Lumber, Furniture & Millwork (including very fine wood flour)
We continue to test and develop Torit PowerCore solutions for other dust challenges. Donaldson Torit will always recommend the best filtration solution for the specific application, whether it’s a cartridge, baghouse, or Torit PowerCore.
Q. What Kind of Filter Media Is Used in PowerCore Filter Packs?
A. Our best: Donaldson- developed the unique Ultra-Web® filter media. It’s made of two layers—a sturdy substrate bonded with a thin layer of fine fibers—that capture both small and large particulate—resulting in high performance media.
Q. Can I Retrofit My Current Collector with PowerCore Filter Packs?
A. Not at this time. Torit PowerCore uses an advanced filtration technology. The filter packs, tubesheet, pulse-cleaning system and engineered airflow of the collector have been optimized as an integrated system. Retrofitting an existing collector is not advised.
Q. Are Torit PowerCore And PowerCore Filter Packs Available from Other Manufacturers?
A. No. Torit PowerCore and PowerCore filter packs are only available from Donaldson.
