Overview
Donaldson’s Ultrapure Smart ALG and Ultrapure HL-ALG breathing air systems combine advanced filtration and adsorption technologies in compact, modular designs. These solutions provide reliable breathing air treatment to remove moisture, particulates, oil aerosols, oil vapor, CO, CO₂, NOx, SO₂, and odors – helping you comply with critical standards such as Pharmacopée Européenne, DIN EN 12021 or USP 29-NF24 for both medical air and industrial breathing air systems.
Key purification stages include:
1. Pre-Filtration with UltraPleat™ Filter Technology – Removes coarse and fine particles, oil aerosols, and moisture to help protect downstream components.
2. Drying Stage with Adsorption Technology – Achieves pressure dewpoints as low as -40°C/-40°F and helps reduce CO₂, SO₂, and NOx levels.
3. Activated Carbon Adsorption – Removes oil vapors, hydrocarbons, and odors to support improved air purity.
4. OX Catalyst – Converts carbon monoxide (CO) into carbon dioxide (CO₂), supporting compliance with strict air quality requirements.
5. After-Filtration with UltraPleat™ Technology – Captures remaining particles before air reaches the point of use.

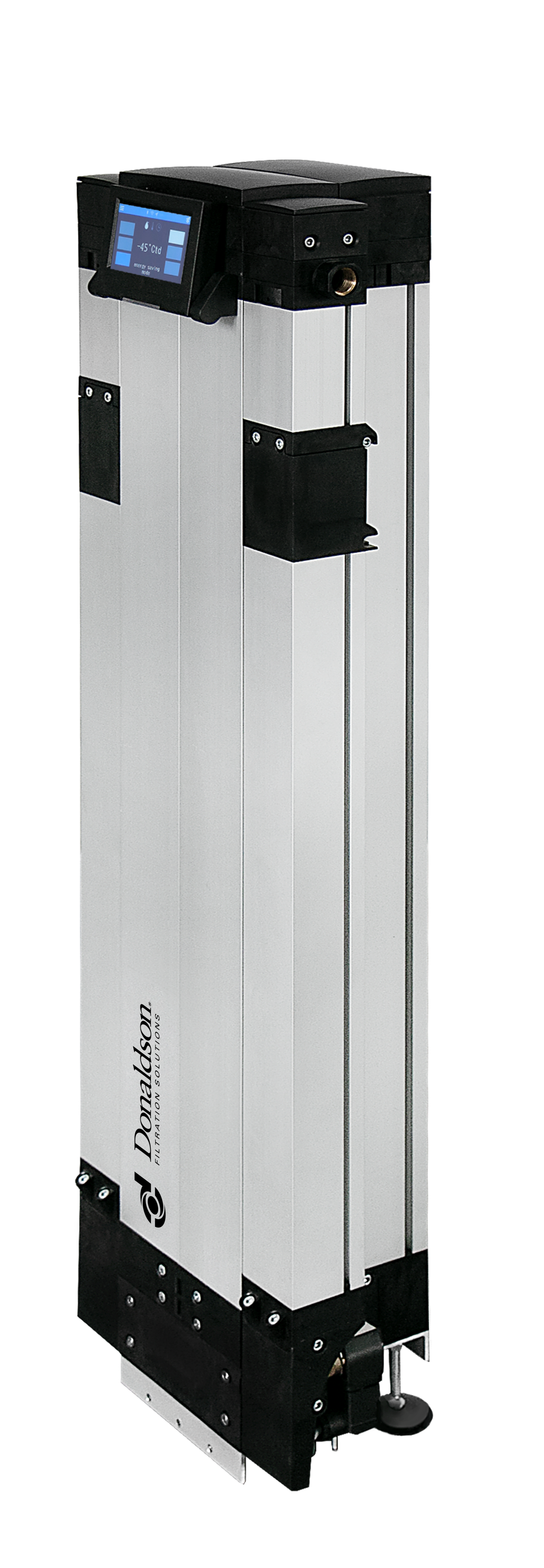

Ultrapure Smart ALG Breathing Air System
Compact Purification for Lower Flow Requirements
Designed for compact installations and low flow demands, the Ultrapure Smart ALG breathing air system provides reliable breathing air treatment with flow rates from 5 to 100 m³/h (3 to 60 scfm) at 7 bar g (100 psig). This fully integrated, plug-and-play breathing air purifier is an ideal choice for environments requiring small to medium air volumes.
Main Features & Specifications
- Five-stage purification process with pre-filter, adsorption dryer, activated carbon, OX catalyst and after-filter
- Compact, space-saving design with integrated UltraSilencer for low noise
- All silicone-free materials for silicone-free breathing air.
- Stable pressure dewpoints: -70°C / -100°F at 70% load, -40°C / -40°F at 100% load.
- Ultraconomy dewpoint control (Superplus) supports better utilization of desiccant capacity by adjusting cycle times.
- High efficiency with low consumption of regeneration air.
- Designed for quick and easy service and maintenance.
Applications
- Medical air supply in clinics and smaller healthcare facilities*
- Paint booths and finishing lines requiring localized breathing air filtration systems
- Industrial workplaces needing a compact, easy-maintenance breathing air purifier

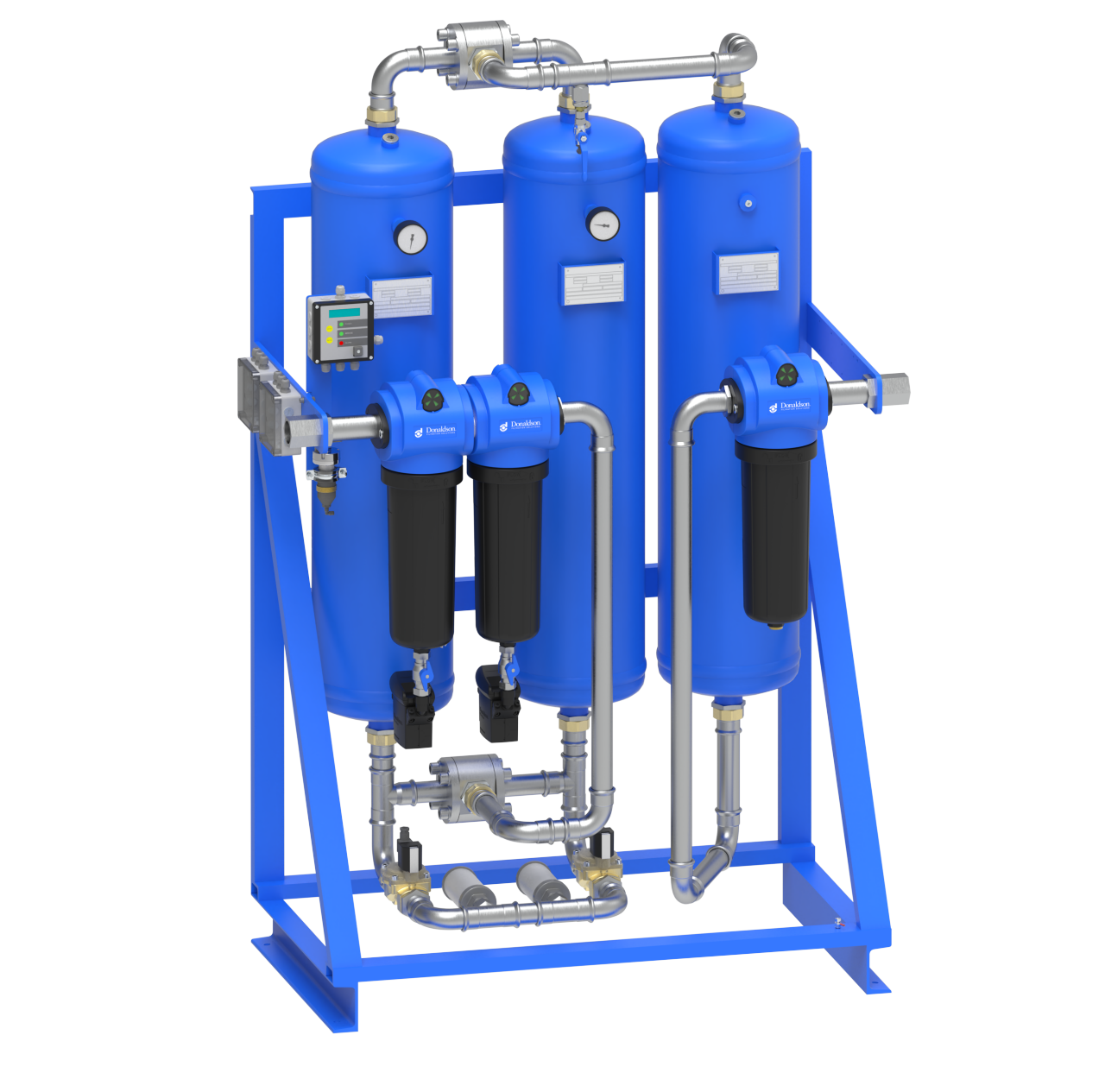

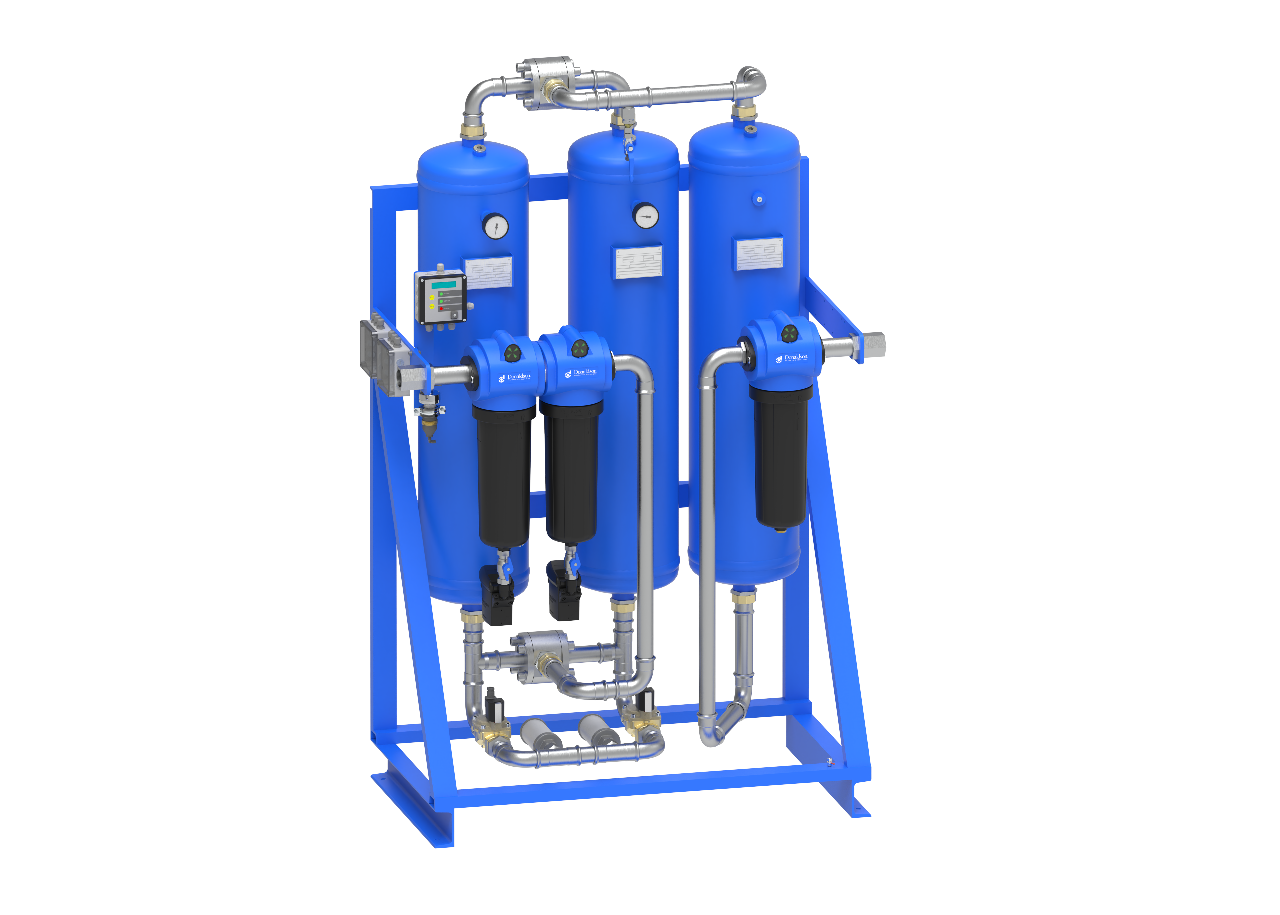

Ultrapure HL-ALG Breathing Air System
High-Capacity Breathing Air Purification for Demanding Applications
The Ultrapure HL-ALG breathing air system is built for operations requiring continuous, medium- to high-volume purified air. With flow capacities from 100 to 1,000 m³/h (60 to 600 scfm) at 7 bar g (100 psig), it provides reliable breathing air quality even under challenging environmental conditions, including high humidity and temperatures.
Main Features & Specifications
- Five-stage purification process with pre-filter, adsorption dryer, activated carbon, OX catalyst and after-filter
- High-capacity design for continuous operation in demanding environments
- All silicone-free materials for silicone-free breathing air.
- Stable pressure dewpoints: -70°C / -100°F at 70% load, -40°C / -40°F at 100% load.
- Ultraconomy dewpoint control (Superplus) supports better utilization of desiccant capacity by adjusting cycle times.
- High efficiency with low consumption of regeneration air.
- Designed for quick and easy service and maintenance.
Applications
- Medical air systems for hospitals and high-demand healthcare facilities*
- Industrial breathing air system for laboratory environments requiring high-purity air
- Automotive painting and finishing requiring large volumes of breathing air treatment
- Heavy industrial environments with high-volume breathing air purifier requirements
*Breathing air for medical and/or hospital applications is subject to higher purity standards than breathing air in the industrial sector. Review local rules and regulations
Availability varies by region. Please contact your local Donaldson representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
