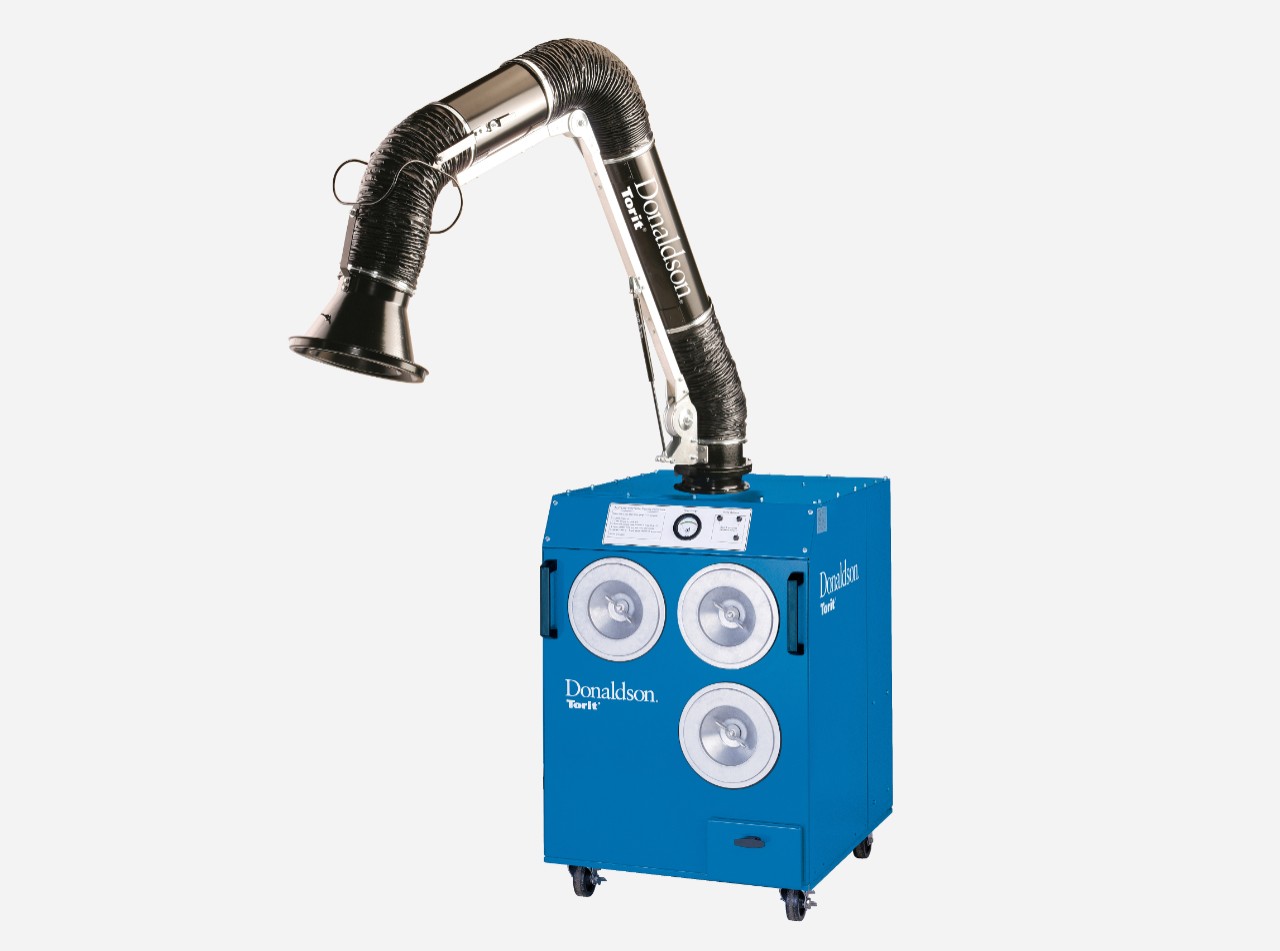

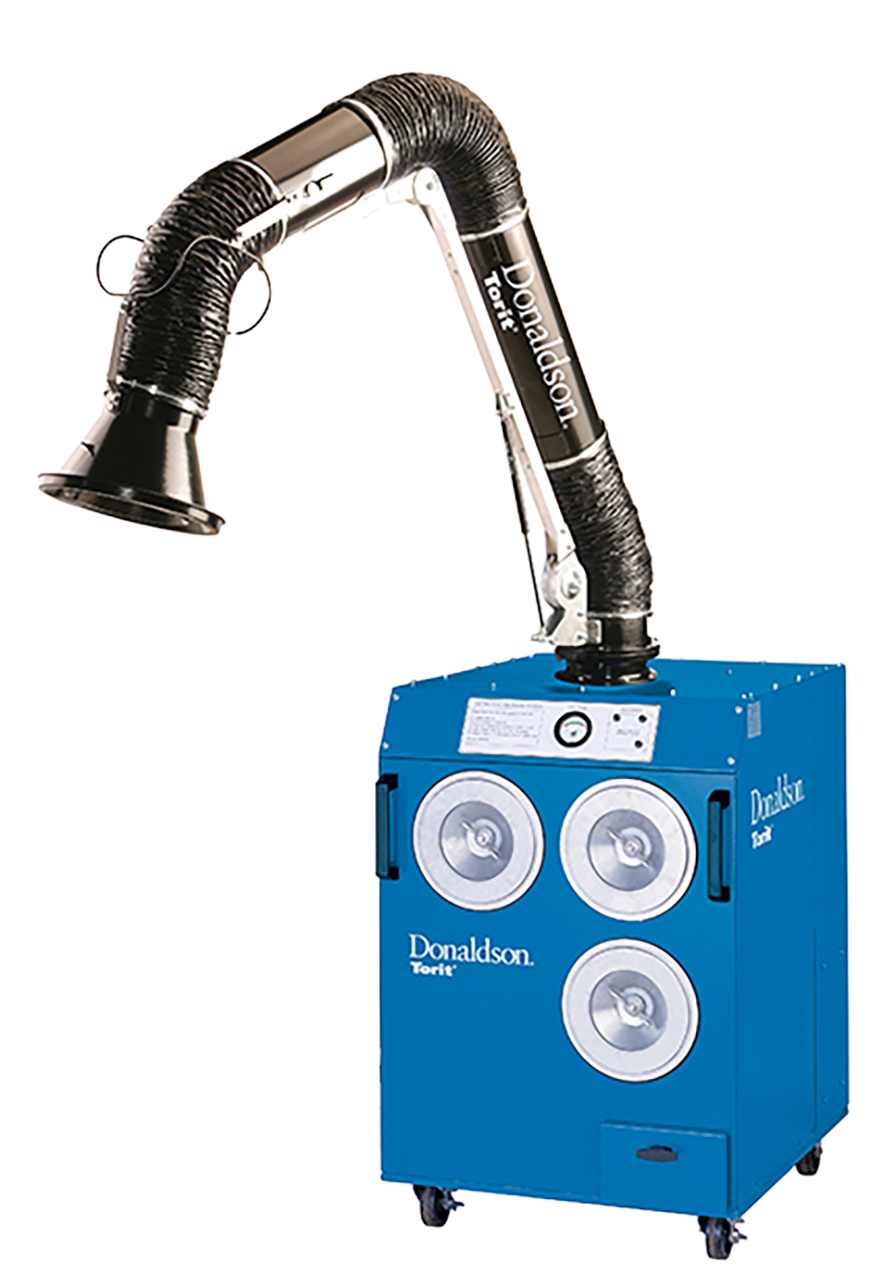

Easy-Trunk™ Collector

  • For heavier duty or more frequent plant operations
  • Built-in pulse filter cleaning system
  • Push buttons conveniently located on front of unit and/or on fume hood
  • Ultra-Web® fine fiber filters provide high MERV* 15 filtration efficiency per ASHRAE 52.2-2007
  • “Plug and go” operation
  • Fits easily through standard doorway

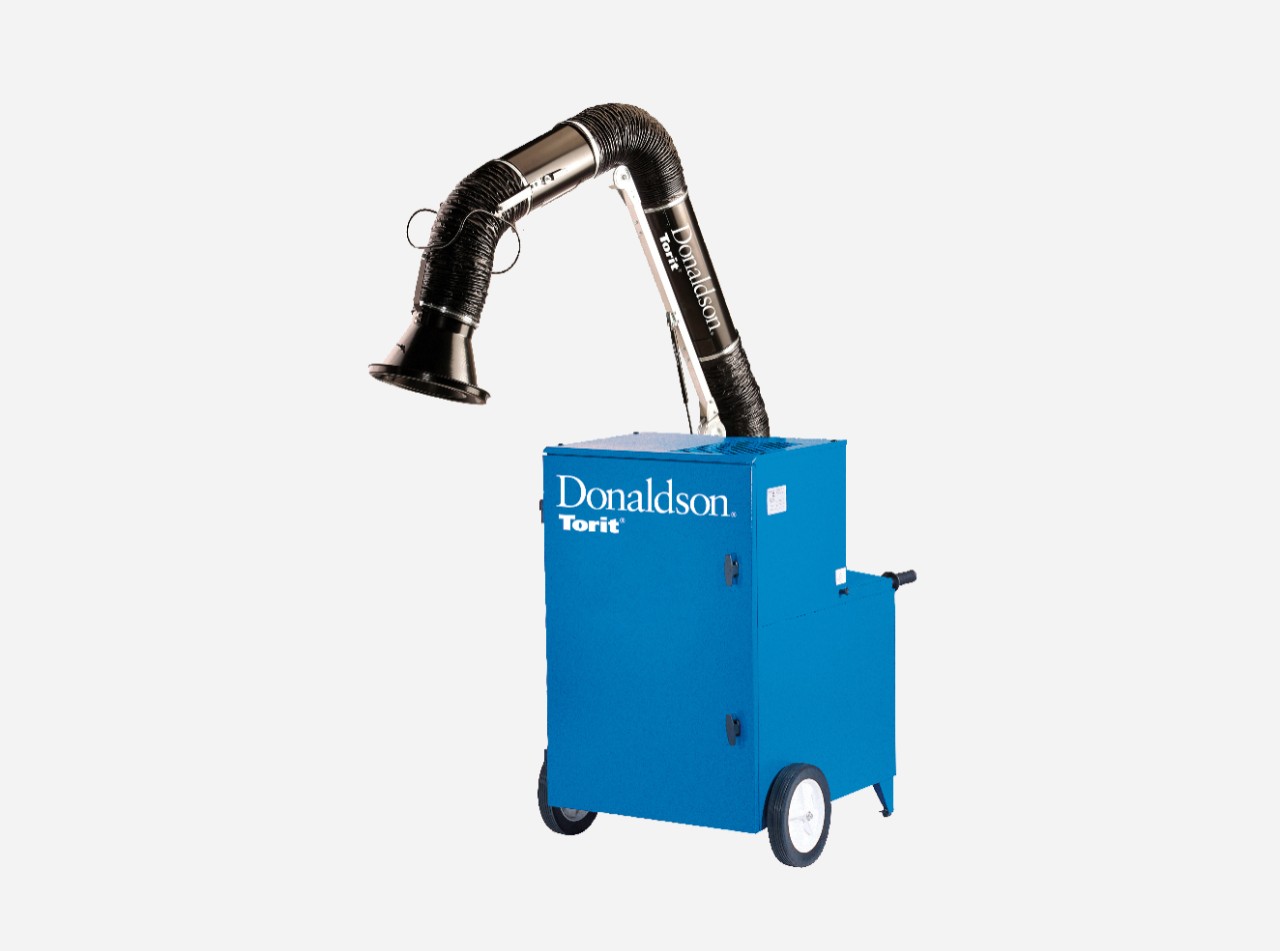

Porta-Trunk™ Collector



  • For light duty or infrequent plant operations
  • Static (non-pulsed) filter system
  • Operating controls conveniently located on fume hood
  • Ultra-Web fine fiber filters provide high MERV* 15 filtration efficiency per ASHRAE 52.2-2007
  • “Plug and go” operation
  • Fits easily through standard doorway



*The Minimum Efficiency Reporting Value (MERV) of this filter cartridge has been determined through independent laboratory testing using ASHRAE 52.2 (2007) test standards. The MERV rating was determined at a face velocity of 36 meters per minute / 118 feet per minute and loading up to 101.6 mm / 4 in. water gauge. Actual efficiency of any filter cartridge will vary according to the specific application parameters. Dust concentration, airflow, particle characteristics, and pulse cleaning methods all affect filtration efficiency. MERV 15 available in U.S. only.

Easy-Trunk & Porta-Trunk Features Standard Optional
Ultra-Web® FR cartridge filters
1.5 HP TEFC motor 115/60/1 voltage
Extraction arm: 152.4 mm x 2.0 m / 6 in. x 6.5 ft
Hood-mounted light with switch
Fully assembled and wired 10-year warranty
Extraction arm: 152.4 mm x 3.0 m / 6 in. x 10 ft

The Easy-Trunk and Porta-Trunk compact, portable fume collectors effectively filter smoke, dust, and fumes from applications including:

  • Metalworking
  • Welding
  • Grinding



All products, specifications, and availability are subject to change without notice and may vary by region or country. Compatibility with combustible dust depends on local regulations.

Certain products may not be suitable for combustible dust applications in some locations. Please contact your Donaldson Representative for guidance on product suitability in your area.
