Overview

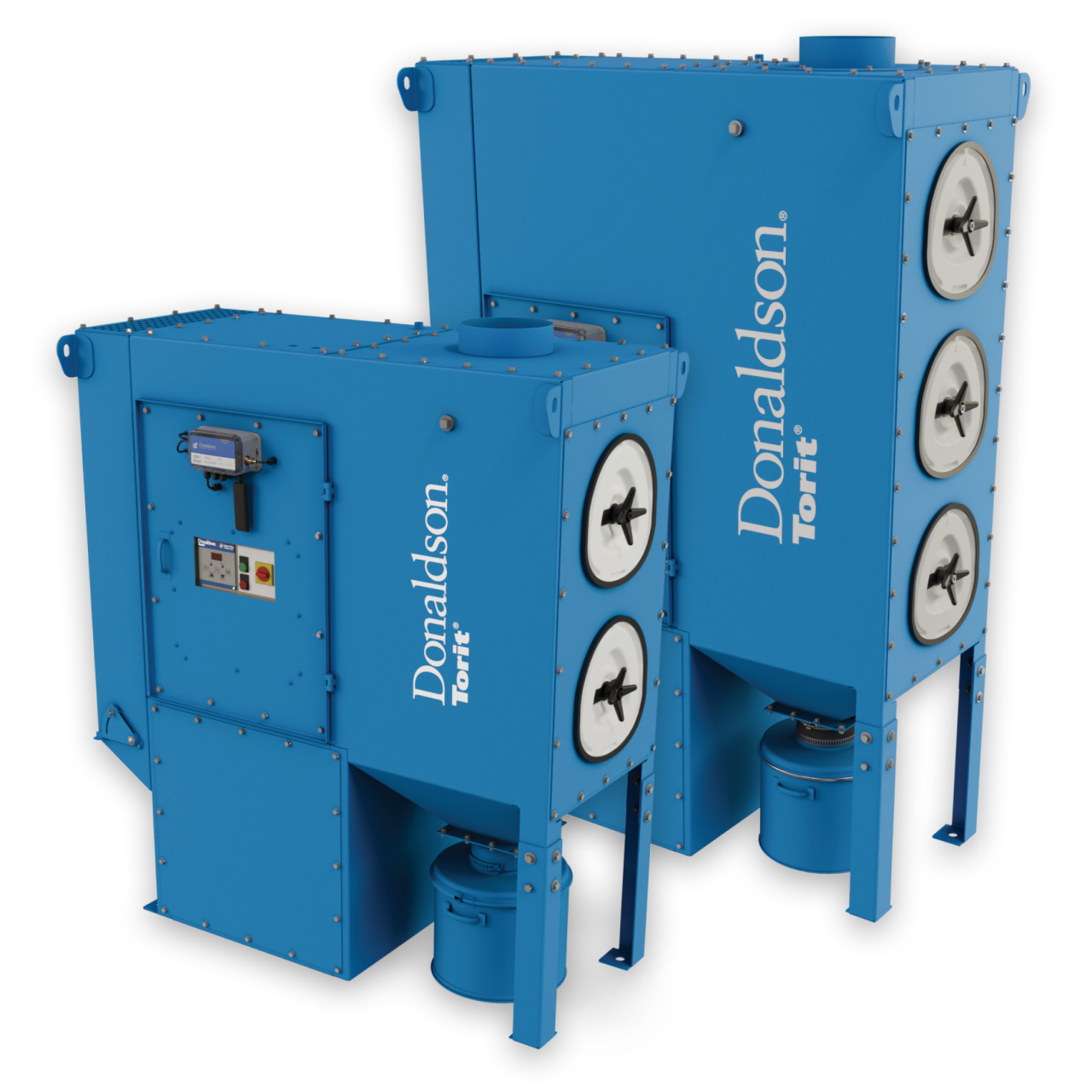

With high-efficiency cartridge filters and easy installation, DFPRE units provide a compact and powerful dust collection solution. They feature a customizable design available in various sizes and configurations, capable of operating across a broad airflow range.

Easy Installation

  • Ships pre-assembled for streamlined set-up
  • Pre-wired fan and controls
  • Compressed air regulator
  • Low side inlet for convenient duct connection to OEM equipment
  • Compact design provides for simple handling

Flexible and Configurable

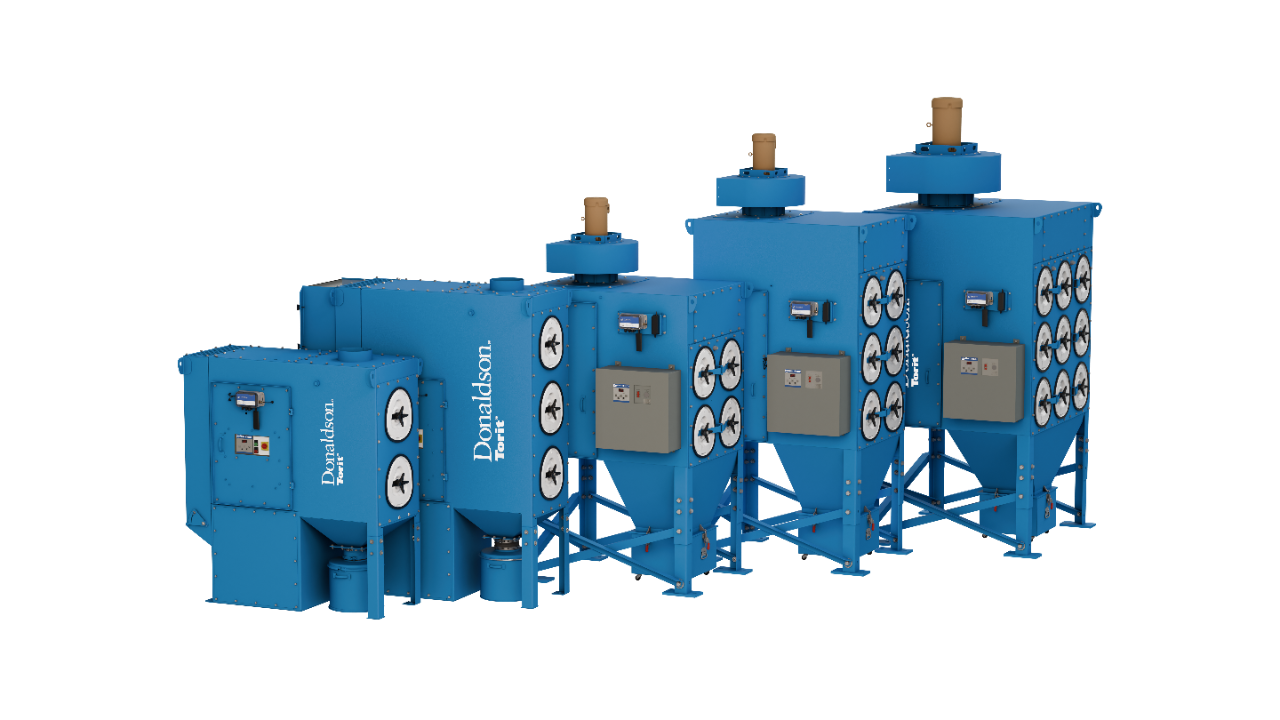

  • With its multitude of configurations and adaptable design, the DFPRE is designed to fit site specific requirements, making it suitable for a wide range of applications.
  • Multiple integrated fan options to tailor the operating airflow and static pressure to your unique process needs.
  • Side-mounted explosion vents or flameless vents to provide a complete and robust package for a variety of combustible dust applications.

Compatibility with combustible dust depends on local regulations. Certain products may not be suitable for combustible dust applications in some locations. Contact your Donaldson sales representative to discuss additional fire mitigation strategies as necessary.

Maximized Performance

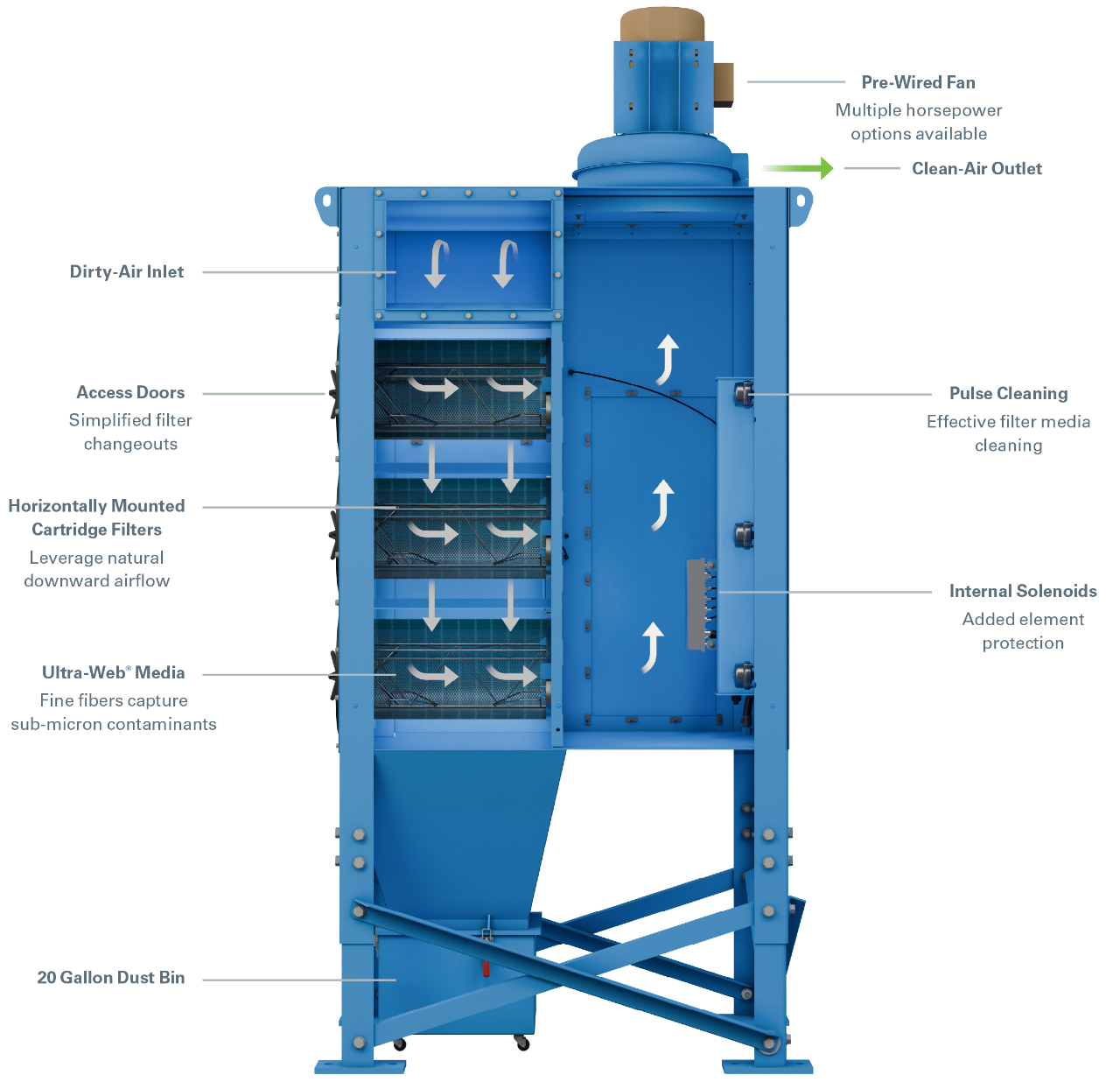

  • Enhanced airflow design directs incoming air to the inlet dropout plate for reduced filterloading.
  • Enhanced media surface area and pulse cleaning maximizes filter life.
  • Increased airflow per cartridge results in a lower cost per CFM

The availability of DFPRE models and features varies by region.  Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.

Industry-Leading Filtration Design

Our horizontally mounted triagonal filters – made with industry-leading Ultra-Web® fine fiber technology – have more filter media at the bottom of the cartridge so pulse-cleaning energy directs the ejected dust toward its ultimate destination – the containment vessel.

Ultra-Web® filtration technology features a layer of fine fibers (0.2 - 0.3 microns in diameter) on the surface of the media to capture sub-micron contaminants. This makes the dust cake come off easily during automated cleaning cycles, providing clean air longer.

With its efficient cartridge filters and advanced downward airflow, the DFPRE requires fewer filters for the same filtration power as other dust collection systems, supporting:

  • Reduced filter replacement costs
  • Reduced maintenance
  • Reduced floor space requirement

Products, specifications, and availability are subject to change without notice and may vary by region or country. Contact your Donaldson Representative to learn more.
