Overview

Donaldson's premium LifeTec™ filter elements are specifically designed as high-performance and efficient filtration solutions for steam. LifeTec™ filter elements for pre-, fine and sterile filtration offer enhanced technology to optimize your process and product integrity.

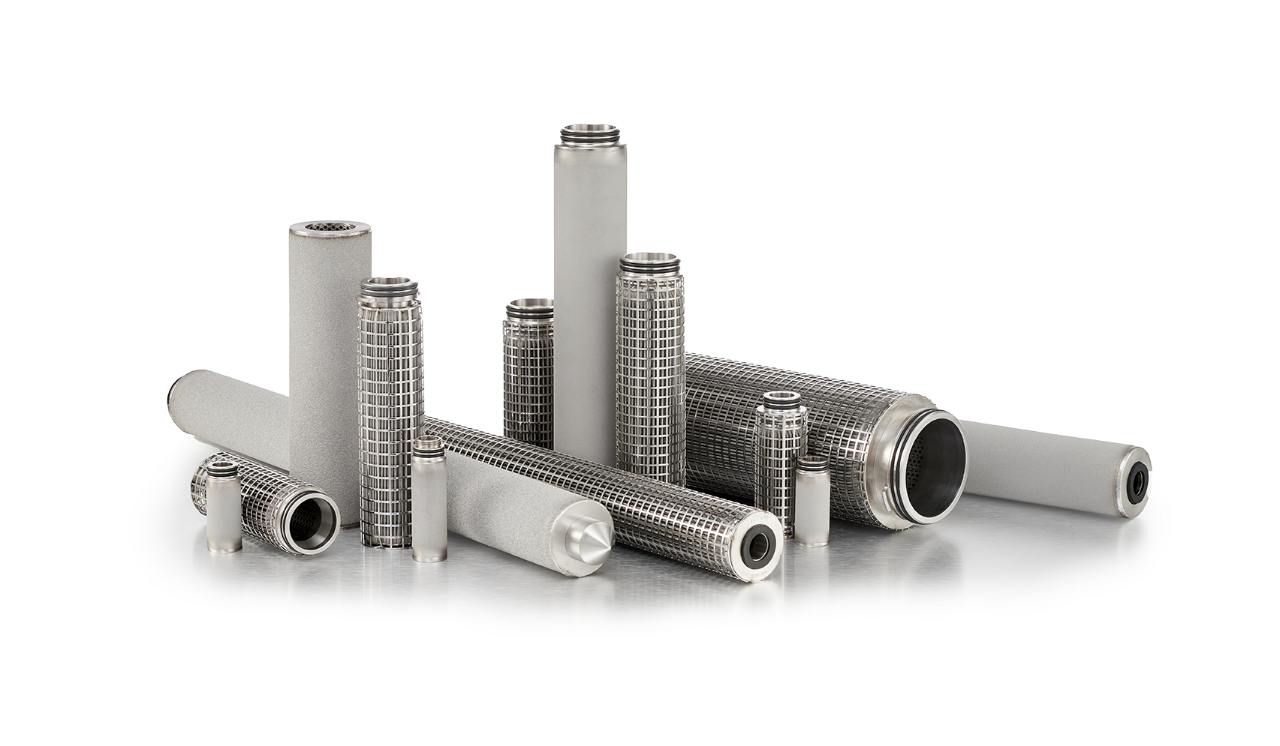

LifeTec™ P-GSL N Steam Filter Element

The Donaldson LifeTec™ P-GSL N is a regenerable, pleated, stainless steel steam filter cartridge that captures contaminants such as particles, abrasion of valves and sealings, and rust. It can be used in higher capacity applications where low pressure drop and reduced space are critical.

All components meet the USA requirements for Food Contact Use in accordance with the Code of Federal Regulations (CFR) Title 21, and the EU requirements for Food Contact Use according to 1935/2004/EC, making it a reliable food grade steam filter.

Features

  • Absolute particulate retention rates at 1 to 250 microns in steam
  • 100% stainless steel construction, contains no binders, adhesives, additives, or surfactants
  • Pleated, stainless steel media
  • Regenerable by back-flushing or ultrasonic cleaning
  • Higher flow rates at a low pressure drop
  • Longer service life which leads to a lower cost of ownership

Applications

  • Pre-Filtration (Entrainment Separator)
  • Direct injection cooking
  • Sterilize-in-Place (SIP)
  • Peeling
  • Pasteurization
  • Sanitizing
  • Heat exchangers
  • PRV/valve protection
  • Humidity control
  • Rust capture



P-GS Steam Filter Element

Donaldson® P-GS elements are designed for filtering steam and gases.

Filtered steam is required whenever steam comes in direct contact with food product or product contact surfaces. It is also necessary to protect sterile filter integrity when using steam to sterilize filter elements. Filtered steam is recommended for the protection of precision modulating system components like pressure reducing valves, and to maintain efficiency of any heat transfer equipment.

All components meet the USA requirements for Food Contact Use in accordance with the Code of Federal Regulations (CFR) Title 21, and the EU requirements for Food Contact Use according to 1935/2004/EC, making it a reliable food grade steam filter.

Features

  • Thirteen lengths, three micron ratings and connection options
  • High-quality continuous 316L sintered stainless steel filter media construction
  • Heavy-duty design
  • 50+% porosity level
  • Multiple regenerative methods are possible, including back- flushing, ultrasonic cleaning, and solvent cleaning with hydrogen peroxide and other chemicals
  • The filter element is manufactured according to ISO 9001

Applications:

Steam Filtration

  • Direct injection cooking
  • Sterilize-in-Place (SIP)
  • Peeling
  • Pasteurization
  • Sanitizing
  • Heat exchangers
  • PRV/valve protection
  • Humidity control
  • Rust capture
