Overview

Donaldson’s compressed air filter elements combine advanced media technologies with efficient design - helping extend equipment life and support clean, consistent airflow. Whether you're using a coalescing filter and particulate filter in one unit, or selecting a dedicated inline air compressor filter, each element is built for high contaminant retention, low pressure drop, and system flexibility.

Our UltraPleat™ pleated media features a structure of coated high-tech fibers, delivering exceptional fine particulate filtration, oil mist removal, and liquid/gas coalescence. This makes them ideal for applications involving the removal of both liquid contaminants (oil mist, water) and solid particles (dust, dirt, rust).

We offer elements compatible with Donaldson DF, SG, HD, EG, P-EG, and PG-EG housings - along with competitive fit replacements. Many series are available in HTNX (high temperature) and HTCR (corrosive-resistant) configurations for rugged environments. Whether you need a first stage filter, a dual-stage filtration system, or high-efficiency oil removal filters, Donaldson has you covered.

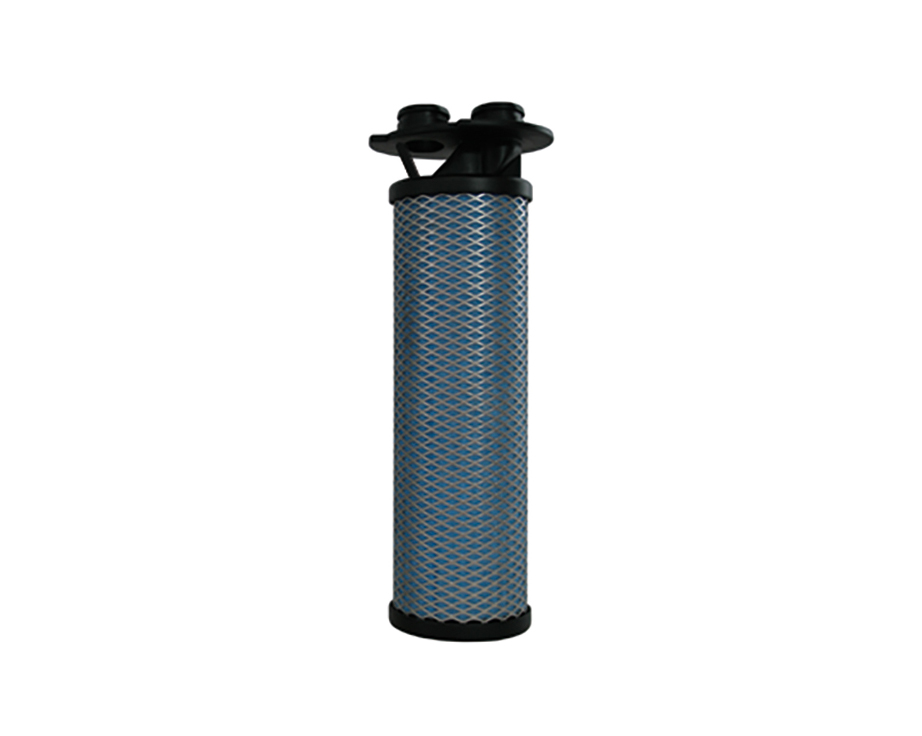

S Filter Element Series with UltraPleat™ Media Technology

Submicron Coalescence and Particulate Filters for Sensitive Applications

S Series filters combine coalescing prefilter and fine dust removal in one compact, pleated solution. With hydrophobic and oleophobic media, they are ideal as a final filter element before sensitive equipment.

Main Features & Specifications

  • UltraPleat™ pleated media with hydrophobic/oleophobic coating
  • Flow-optimized design
  • Stainless steel and reinforced polymer construction
  • High surface area with low pressure drop
  • Adjustable coding clip for direction flexibility

Application

  • Central air systems: Pre-filtering before air dryers
  • Final filtration for control and process air
  • Automotive paint and finish lines
  • Compatible with DF housings

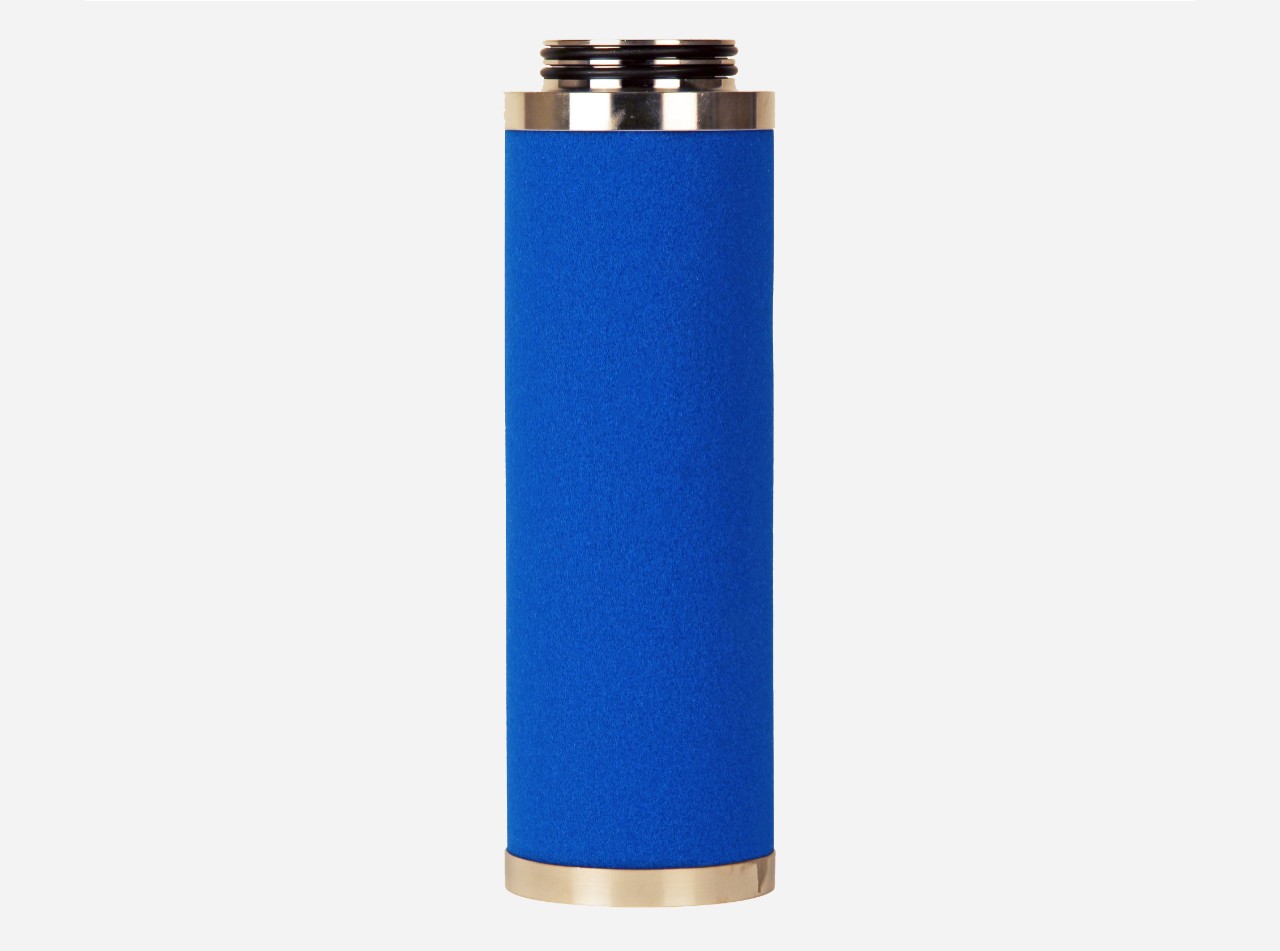

SMF with UltraPleat™ Media Technology/ SMFP / P-SMF

Submicron Absolute Filters for High-Purity

SMF Series filters are designed for absolute aerosol and dust filtration, capturing down to 0.01 micron (at 1 bar abs). They serve as dry particulate filters where ultra-clean, oil-free compressed air is required.

Main Features & Specifications

  • Borosilicate glass fiber media
  • Retains liquid aerosols and solid particles
  • High dirt-holding capacity
  • Corrosion-resistant stainless steel sleeve design
  • Available in HTNX and HTCR versions

Application

  • Sterile air processes and cleanrooms
  • Harsh environments with corrosive gases
  • Compatible with SG, HD, EG, P-EG, and PG-EG housings

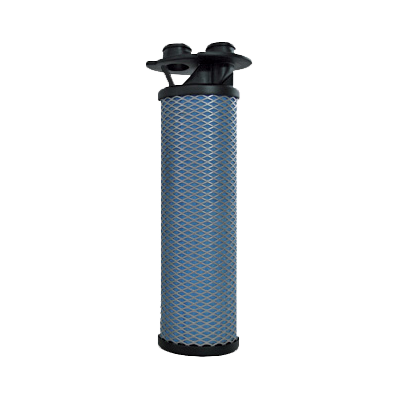

M Filter Element Series with UltraPleat™ Media Technology

Micron-Grade Coalescence Filters for Industrial Applications

M Series elements provide a balance of coalescing and particulate filtration, suitable for use as a primary air filter in industrial compressor setups. Their structure supports long service intervals with low maintenance.

Main Features & Specifications

  • UltraPleat™ media with oleophobic/hydrophobic coating
  • Pleated media with high surface area
  • Reinforced housing for durability
  • Integrated coalescence sleeve for stable flow
  • Adjustable coding clip

Application

  • Prefiltering before air dryers
  • Air compressor pre filters for general processes
  • Spray painting, packaging, and assembly lines
  • Compatible with DF housings

MF with UltraPleat™ Media Technology / MFP / P-MF

Micron-Grade Absolute Filters for Harsh Environments

MF Series filter elements function as coalescing filters and dry particulate filters, offering absolute retention of aerosols and fine solids. A great choice for dual-stage filtration systems in clean environments.

Main Features & Specifications

  • Large-area UltraPleat™ media
  • Corrosion-resistant stainless steel frame
  • 0.01micron retention (at 1 bar abs)
  • High chemical and thermal resistance (HTNX/HTCR variants available)
  • Silicone-free (MFP)

Application

  • Cleanroom air systems
  • High-throughput air compressor filters
  • Compatible with SG, HD, EG, P-EG, and PG-EG housings

FF with UltraPleat™ Media Technology / FFP / P-FF

Fine Filter Elements for Aerosol and Particle Control

FF and FFP elements are built for tough environments requiring oil vapor filtration and solid particulate removal - supporting long service life in downstream applications.

Main Features & Specifications

  • UltraPleat™ media or microfiber fleece media
  • Expanded stainless sleeves for durability
  • 0.01micron retention (at 1 bar abs)
  • Silicone-free (FFP)
  • HTNX and HTCR versions available

Application

  • Inline air compressor filters
  • Removal of aerosols and odor-causing vapors
  • Compatible with SG, HD, EG (FF, FFP) and P-EG, PG-EG (P-FF) housings

V Filter Element Series

Depth Filters for General Micron-Grade Air Treatment

The V Series is a durable first stage filter element, ideal as a prefilter for heavily contaminated gas conditions in compressed air systems. It helps prevent clogs in air lines and protect downstream filters from overloading.

Main Features & Specifications

  • Wrapped depth media for coarse particle capture
  • Oleophobic/hydrophobic polyester fleece
  • Flow-optimized for air savings
  • Direction-adjustable coding clip

Application

  •  After filtration in adsorption dryers
  • General air line protection
  • Coalescing and particulate filter element for air compressor setups
  • Compatible with DF housings

CF Filter Element Series

Coarse Filter Elements for High-Capacity Pre-Filtration

CF Series filters act as industrial pre filters and air compressor coarse filters, providing high-volume dust and dirt filtration upstream of fine and coalescing filters.

Main Features & Specifications

  • Depth media for coarse contaminants
  • 100% particle retention ≥ 5 microns
  • Low pressure drop

Application

  • First stage filters in multi-stage systems
  • Removal of dust, dirt, and rust particles
  • Compatible with SG, HD, and EG housings

Looking for Activated Carbon Filters?

If you're searching for high-performance oil vapor filters to eliminate hydrocarbons, odors, and fine particles, visit our oil-free section. Explore activated carbon filter elements specifically designed for applications where oil-free air is critical.



Availability varies by region.  Please contact your local Donaldson representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
