What is a Gas Turbine Air Inlet Static Panel Filter?
A gas turbine air inlet static panel filter is a high-performance air filtration solution used in gas turbine air intake systems to protect compressors and critical turbine components from airborne contaminants. Designed with a rigid, pleated panel configuration, static panel filters are designed to help deliver efficient particle removal, low airflow resistance, and extended service life. These gas turbine inlet filters are widely used in power plants, offshore facilities, industrial operations, and other demanding environments where clean intake air can help support turbine performance and help reduce maintenance costs.
Overview: Gas Turbine Air Inlet Static Panel Filters

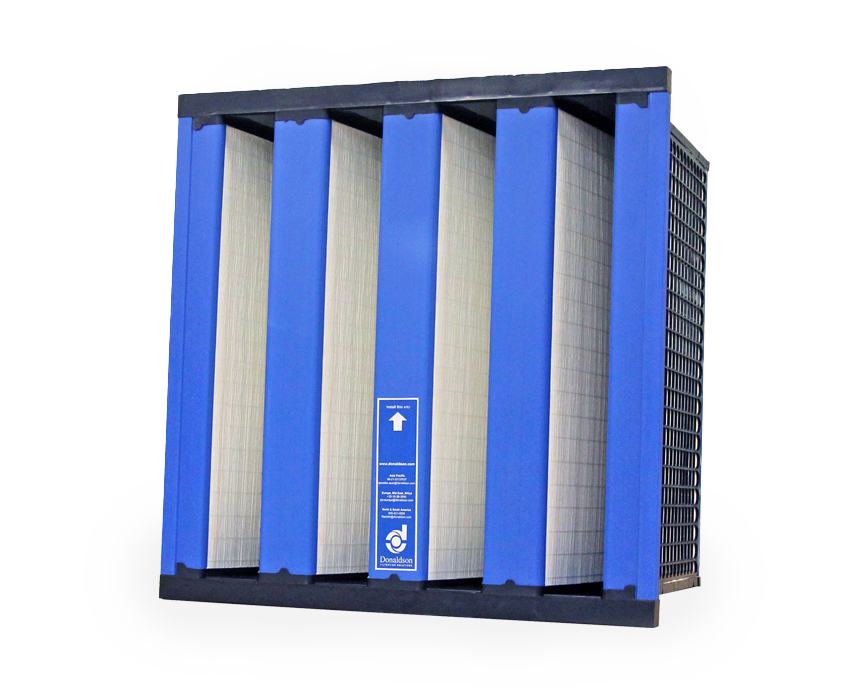

No matter where your gas turbines operate—coastal, desert, or industrial environments—you need filtration you can count on. Donaldson Turbo-Tek™ minipleat panel filters are engineered to help you optimize turbine performance, reduce maintenance time, and control operating costs.

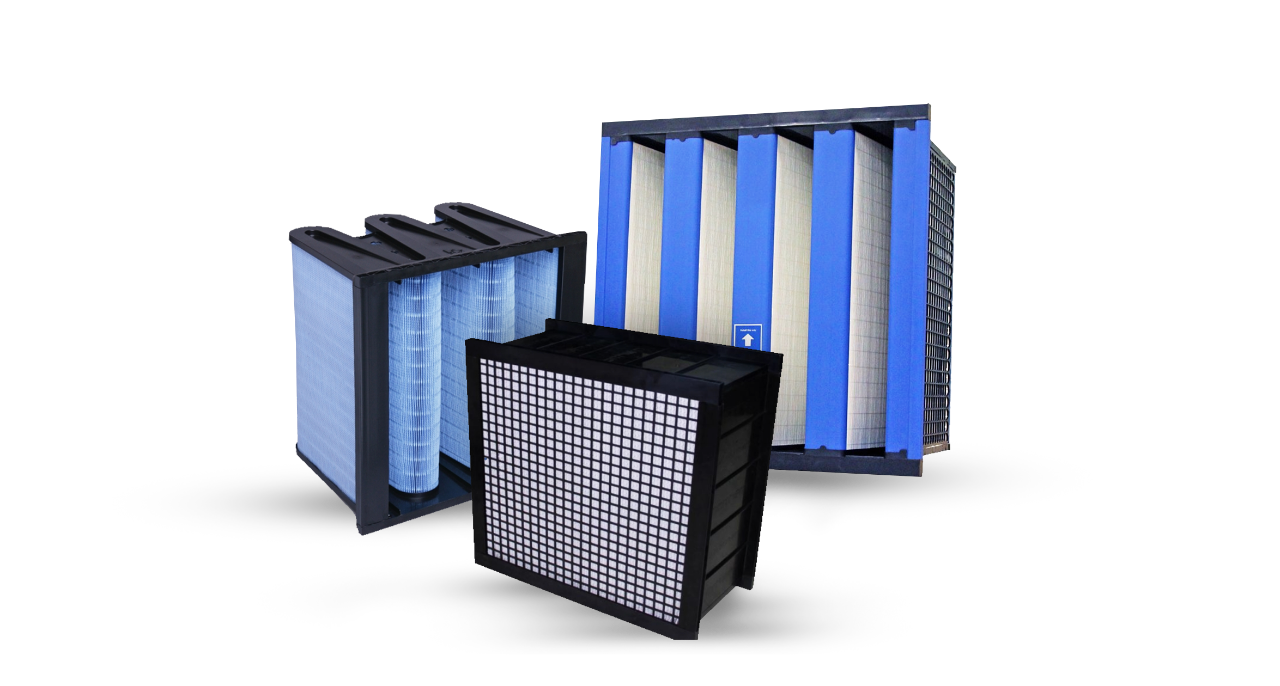

Built for durability and easy installation, Donaldson’s panel filters come in various media types, filtration efficiency ratings, and configurations. Designed for high dust-holding capacity and low pressure drop, these filters help deliver clean air, supporting longer service intervals and more uptime for your turbomachinery operations.
Benefits of Gas Turbine Air Inlet Static Panel Filters
Boost Power Output and Turbine Availability
Turbo-Tek™ static panel filters help maintain gas turbine compressor performance by minimizing deposit buildup. High-efficiency particulate air filtration helps reduce compressor fouling, improve fuel efficiency, and support turbine uptime.
Optimize Fuel and Maintenance Costs
Our advanced media removes fine and corrosive particulates before they reach your turbine compressor section. This line of protection may help you reduce unexpected failures, unscheduled outages, and major maintenance events.
Water and Oil-Resistant Media for Harsh Environments
Donaldson’s panel filters are constructed with watertight media and vertical pleat orientation for enhanced water drainage. Designed to resist water and oil ingress, these filters are ideal for coastal, humid, and industrial filtration environments.
Performance Ratings
Filter Efficiency
- Available from M6 to E12 efficiency
- Rated from Er1 to Er5
- Meets demanding gas turbine air filtration standards
Watertightness Rating
- Engineered for water resistance and drainage performance in wet or foggy conditions
Filter Specifications for Static Inlet Systems
- Efficiency Grades: M6 to H13 (per EN779:2012 and EN1822 standards)
- Panel Depths: 12” / 292mm and 17” / 440mm
- Pressure Rating: Withstands 25” / 6250mm water static burst pressure—ideal for fog, snow, and coastal weather
FAQs: Gas Turbine Air Inlet Static Panel Filters
How do static panel filters work in a gas turbine air intake system?
Static panel filters capture dust, dirt, salt, moisture, and other airborne contaminants as intake air passes through the filter media. The filtered air then flows to the turbine compressor, helping reduce fouling, corrosion, and erosion that can impact turbine performance and reliability.
What contaminants do static panel filters remove?
Gas turbine static panel filters are designed to remove a wide range of airborne contaminants, including:
· Dust and dirt
· Fine particulate matter
· Pollen
· Sand and desert dust
· Salt aerosols
· Industrial pollutants
· Oil mists
· Moisture and water droplets
Removing these contaminants helps protect critical turbine and compressor components.
How do static panel filters help improve turbine efficiency?
Static panel filters help maintain cleaner compressor surfaces by reducing the ingestion of airborne contaminants. Cleaner compressors may operate more efficiently, helping support airflow, power output, and overall turbine performance while reducing the need for compressor cleaning.
How do static panel filters help prevent compressor fouling?
Compressor fouling occurs when contaminants accumulate on compressor blades and surfaces. High-efficiency static panel filters capture these particles before they reach the turbine, helping support compressor cleanliness and reducing performance degradation over time.
Are static panel filters suitable for coastal and offshore environments?
Yes. Static panel filters with water-resistant and hydrophobic media are often used in coastal and offshore installations where airborne salt and moisture are significant concerns. This can lead to lower lifecycle maintenance costs and improved turbine availability in harsh marine environments.
Can static panel filters be used in desert environments?
Yes. Static panel filters are commonly used in desert and arid environments where turbines are exposed to high concentrations of airborne dust and sand. Proper filter selection is important to maximize dust-holding capacity and filtration efficiency under these conditions.
How do static panel filters help reduce maintenance costs?
By preventing contaminants from reaching critical gas turbine components, static panel filters help reduce compressor washing frequency, minimize fouling-related maintenance, decrease the risk of unplanned outages, and extend equipment service intervals. This may help contribute to lower lifecycle maintenance costs and improved turbine availability.
