The sophistication of today's diesel engines and equipment requires higher fuel and fluid cleanliness levels than ever before. Donaldson bulk tank filtration systems can help save on costly component replacement, prevent unplanned downtime, and reduce fuel-efficiency loss due to injector wear – ultimately lowering your overall equipment ownership costs.

Bulk Diesel and Lube Filters

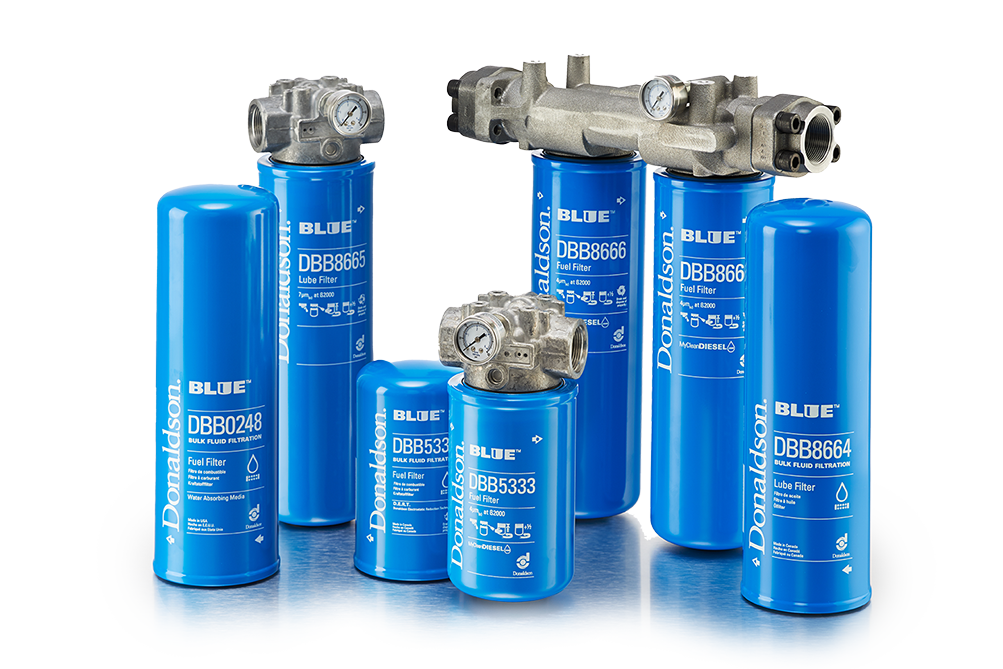

Donaldson Bulk Fuel filters provide exceptional cleanliness in a single pass. The Donaldson Blue® spin-on filter design enables fast, simple, and clean servicing without specialized tools. Our Donaldson-exclusive media offers greater protection from contamination during service than traditional cartridge-style filters, further enhancing high initial filtration efficiency. Filters can be used individually or configured into high-capacity systems using a variety of different head and manifold options.

Features

  • Different filter models are available to filter diesel fuels, coolants, thin oils, transmission oil, hydraulic oil, engine oil, and gear oil
  • Donaldson Electrostatic Reduction Technology (DERT) prevents filter media damage from electrostatic discharge
  • Cleans to target cleanliness in a single pass
  • Modular design can be configured for virtually any flow rate or usage level
  • Fast and easy to service

Benefits

  • Unsurpassed cleanliness for all your bulk diesel and lube
  • Donaldson Blue fuel filters deliver the cleanest fuel – period
  • Prevent unplanned downtime for your operation
  • Systems can be customized to meet specific application requirements
  • Easy to install and service

Applications

  • Single pass filtration for clean fluid transfers; High efficiency kidney looping; Inlet and outlet filtration at bulk storage tanks; Dispenser polishing filtration on fuel pumps and hose reels; Mobile and stationary applications

Heads

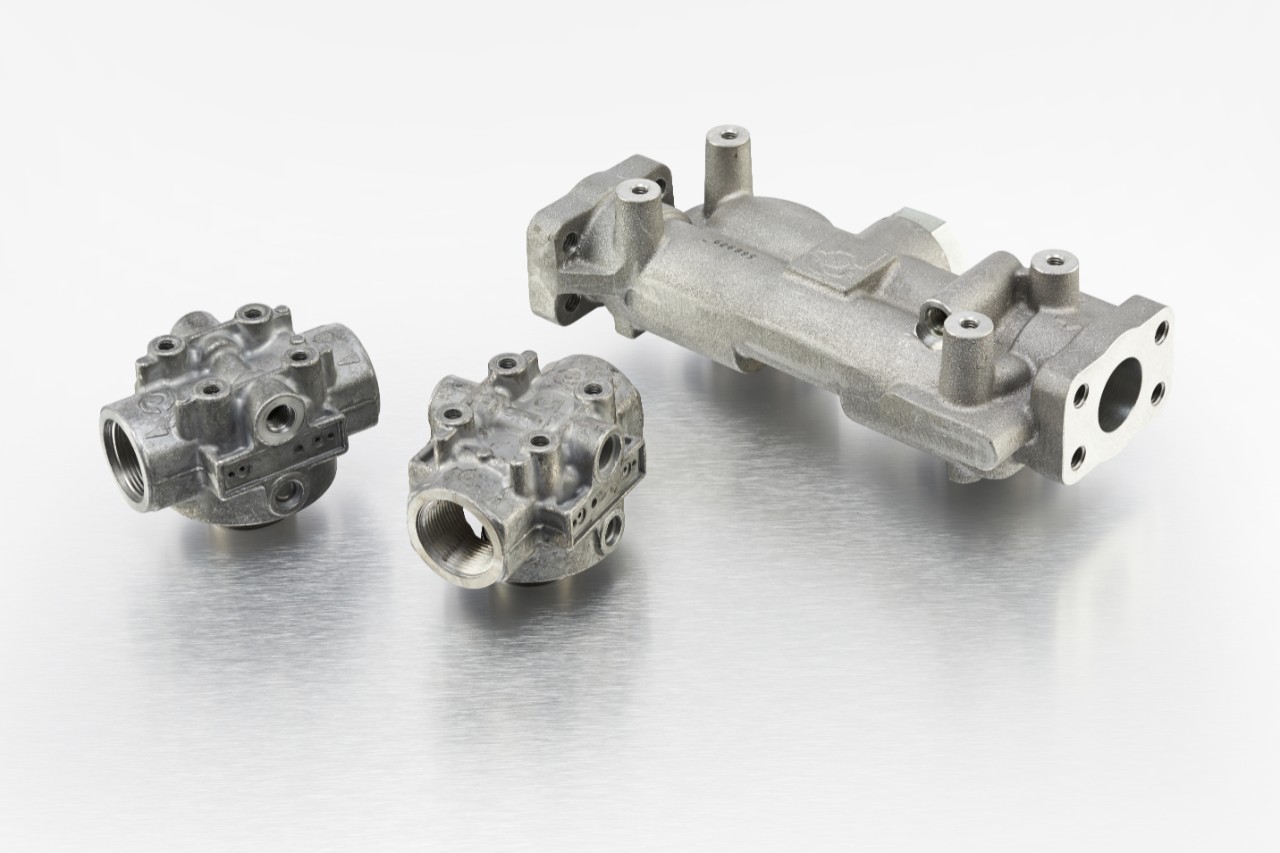

Donaldson Bulk Fluid heads feature robust, aluminum construction. Combined with the proper Bulk Fluid filters, these heads are an integral part of ensuring your critical equipment receives the cleanest possible fuel and oil.

Features

  • Aluminum head with steel inserts to minimize metal-to-metal bonding or galling between the head and filter
  • Fluorocarbon seals are compatible with most fluids
  • Pre-ported for optional pressure gauges or service indicators
  • SAE and NPTF connection options available

Benefits

  • An integral part of delivering the cleanest possible fuel and oil
  • Application flexibility
  • Reliable performance

Applications

  • All diesel fuels and lubricants; Use only with Donaldson Clean Solutions Filters; Single Filter SAE, NPTF, and Dual Filter SAE Connections

Manifolds

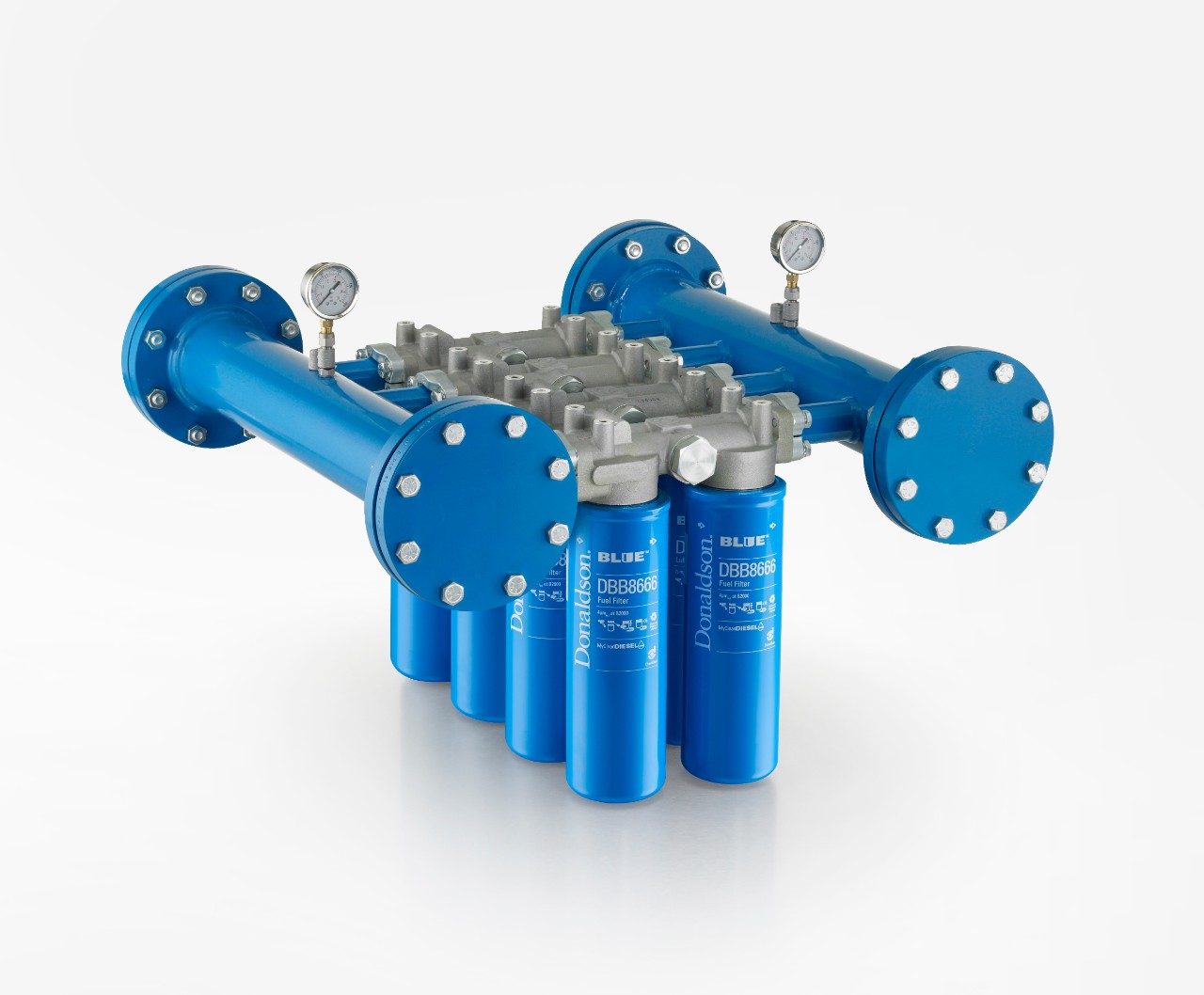

Clean Solutions Filter Manifolds expand capacity or increase flow rate beyond the capability of a single or dual filter head. Manifolds handle flow rates up to 2650 lpm / 700 gpm. Two or more manifolds can be plumbed together to accommodate even larger flow rates.

Manifolds split the flow evenly between the individual filters. Fluid passes through only one of the filters on its way across the manifold. Dividing the flow between multiple filters plumbed in parallel slows velocity and reduces the pressure drop through each filter.

When used with Clean Solutions filters, they are an integral part of ensuring that your equipment receives the cleanest possible fuel and oil.

Features

  • Fast, easy, and safe to service
  • Requires no electrical or air hook-ups
  • Large capacity in a small footprint
  • Flexible mounting options (horizontal or vertical)

Benefits

  • Prevents unplanned downtime
  • Cost-effective high-capacity system

Applications

  • Bulk fuel and lubricant filtration and water removal; High flow transfer into or out of tanks and dispensing; Hard-to-filter high viscosity oils; Inline industrial filtration of gear oils and lubricants; Kidney loop applications

DEF Filters

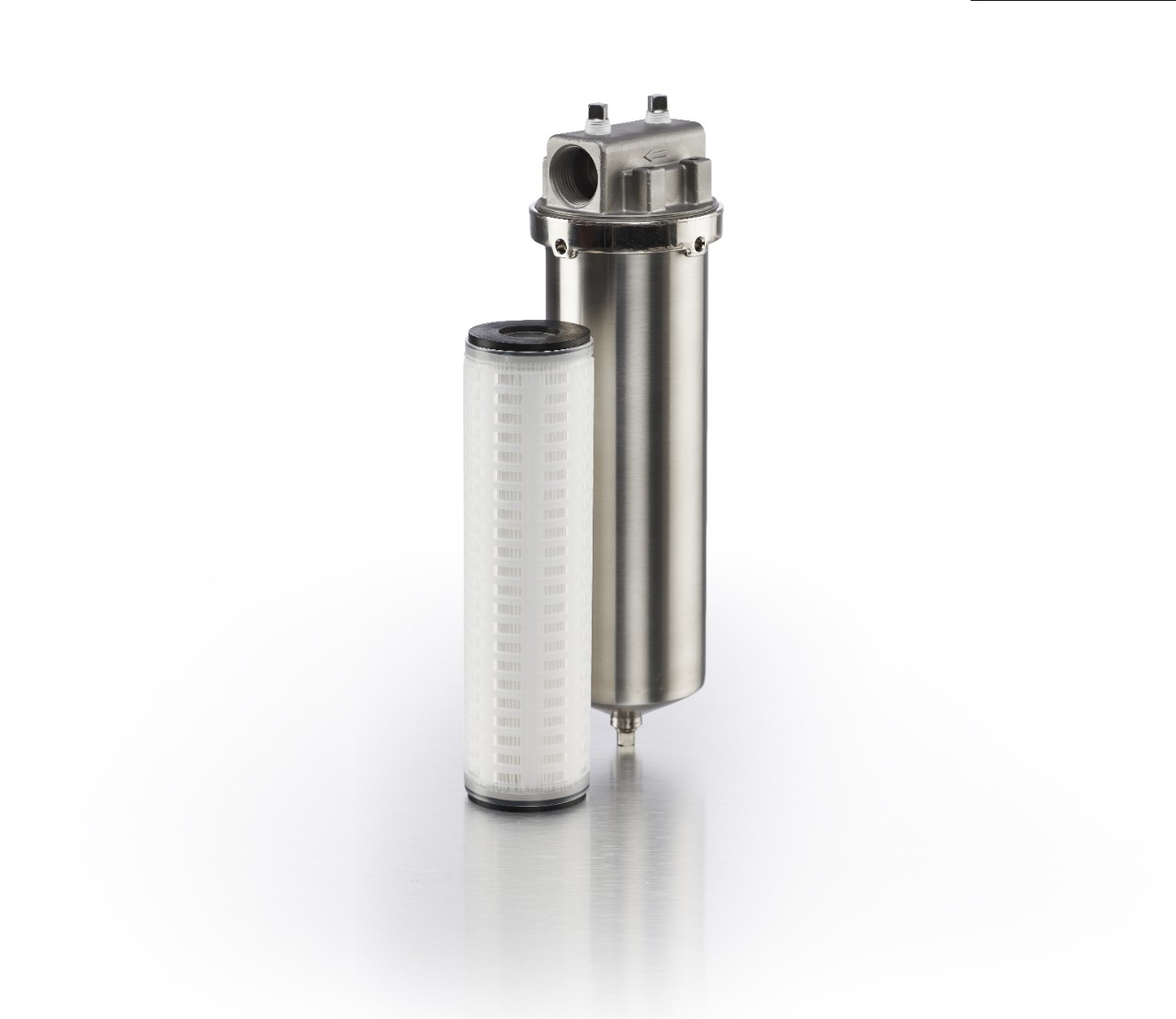

The Diesel Exhaust Fluid (DEF) Filter offers a convenient, effective way to deliver clean DEF into your equipment.  If DEF is not filtered, urea crystals and other contaminants picked up during storage and handling can cause malfunction of the SCR system. The Donaldson Clean DEF Filter removes harmful particulate, preventing plugged dosing valves and enabling the SCR to do the important job of reducing harmful NOx emissions.

Features

  • Beta 5000 efficiency at 1 micron
  • 316 stainless steel housing
  • Heavy-duty construction
  • Maximum working pressure of 20.7 bar / 300 psi
  • Leak-free o-ring seal
  • Integrated gauge/sample ports

Benefits

  • Stops dirt before it reaches the on-board DEF filter
  • Extends the life of the on-board DEF filter
  • Ensures proper function of the SCR system
  • Helps prevent vehicle or equipment power reduction

Applications

  • DEF dispensers up to 38 lpm / 10 gpm
