Overview

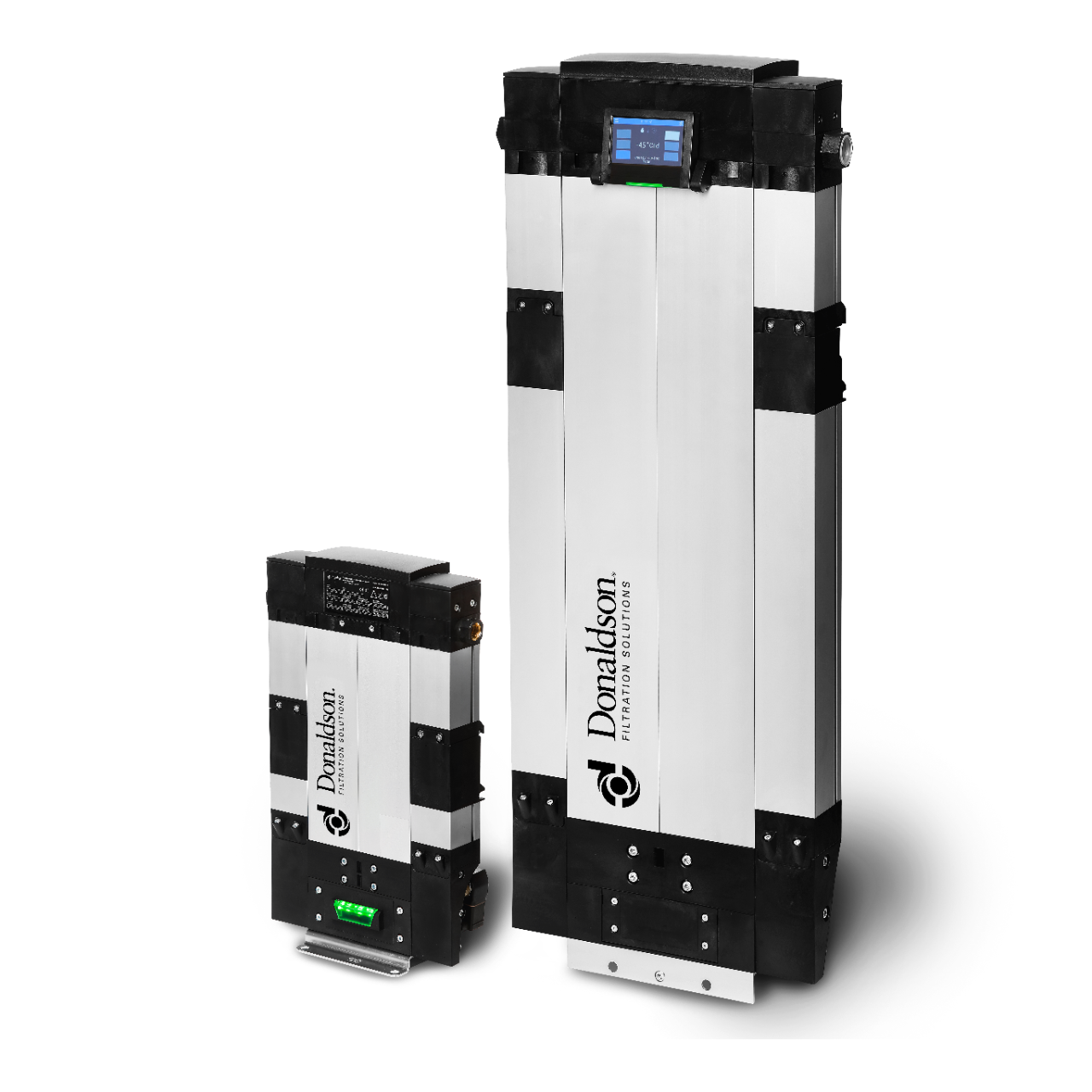

With their space-saving design, Ultrapac Smart™ modular heatless desiccant dryers can be the ideal drying solution for industries with space constraints and lower air flow requirements as well as point of use applications. The modular adsorption compressed air dyers come with pre-filters, after-filters, and condensate drains, providing you with a complete system in which:

  • An integrated pre-filter retains solid particulates and liquid aerosols (oil/water);
  • The adsorption dryer captures the moisture in the compressed air; and
  • The remaining solid particulates are retained in the integrated after-filter.

Depending on operating conditions, the compact desiccant dryers can be used to comply with purity class 1-2:1-2:1-2 according to ISO 8573-1:2010.



Features

  • Modular, compact design for flexible configurations.
  • Flow range from 5 to 100 m³/h / 3 to 60 scfm at 7 bar g / 100 psig.
  • Ultraconomy dewpoint control (Superplus) supports better utilization of desiccant capacity by adjusting cycle times.
  • All silicone-free materials for silicone-free compressed air.
  • High efficiency with low consumption of regeneration air.
  • Connected and Industry-4.0 ready.
  • UltraSilencer reduces noise and helps support your safety compliance program.
  • Easy maintenance and service.
  • Stable pressure dewpoint: -70°C / -100°F at 70% load, -40°C / -40°F at 100% load.
  • Compact stand-alone version can be used to support reduced installation and maintenance costs.



UltraPleat™ Media Technology for Enhanced Efficiency

The innovative UltraPleat™ filtration technology used in our filters allows high separation efficiency of liquid particles and a high retention capacity for solid particles at low differential pressures, improving the efficiency of your dryer.

  • High-tech fiber filter media
  • Pleated form and structure
  • Special filter media coating
  • Outer stainless steel support sleeve



Smart Controller Variants

Superplus

  • Touch display
  • Alarm contact
  • Smart connectivity
  • Ultraeconomy (dewpoint control)
  • Intermittent operation (compressor coupling / remote on/off switch)

Standard

  • LED signal
  • Alarm contact
  • Intermittent operation (compressor coupling / remote on/off switch)

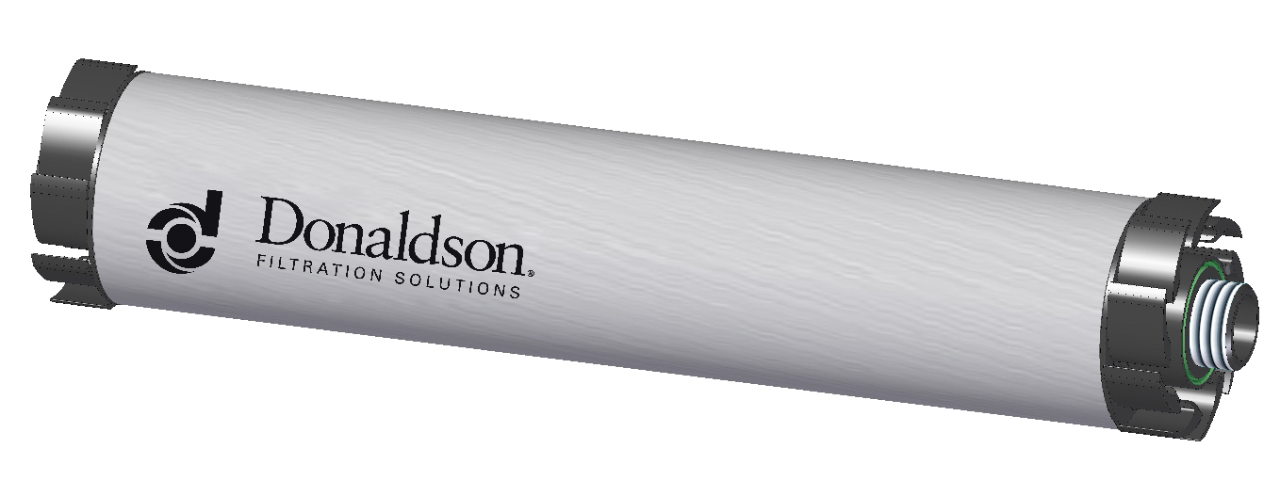

Silencer for Quiet Working Environment

The Ultrapac™ Smart dryers come with silencers to help reduce noise emissions in the workplace. The powerful UltraSilencer allows the moisture removal systems to operate in the range of just 60 dB, which matches the volume of a normal conversation.

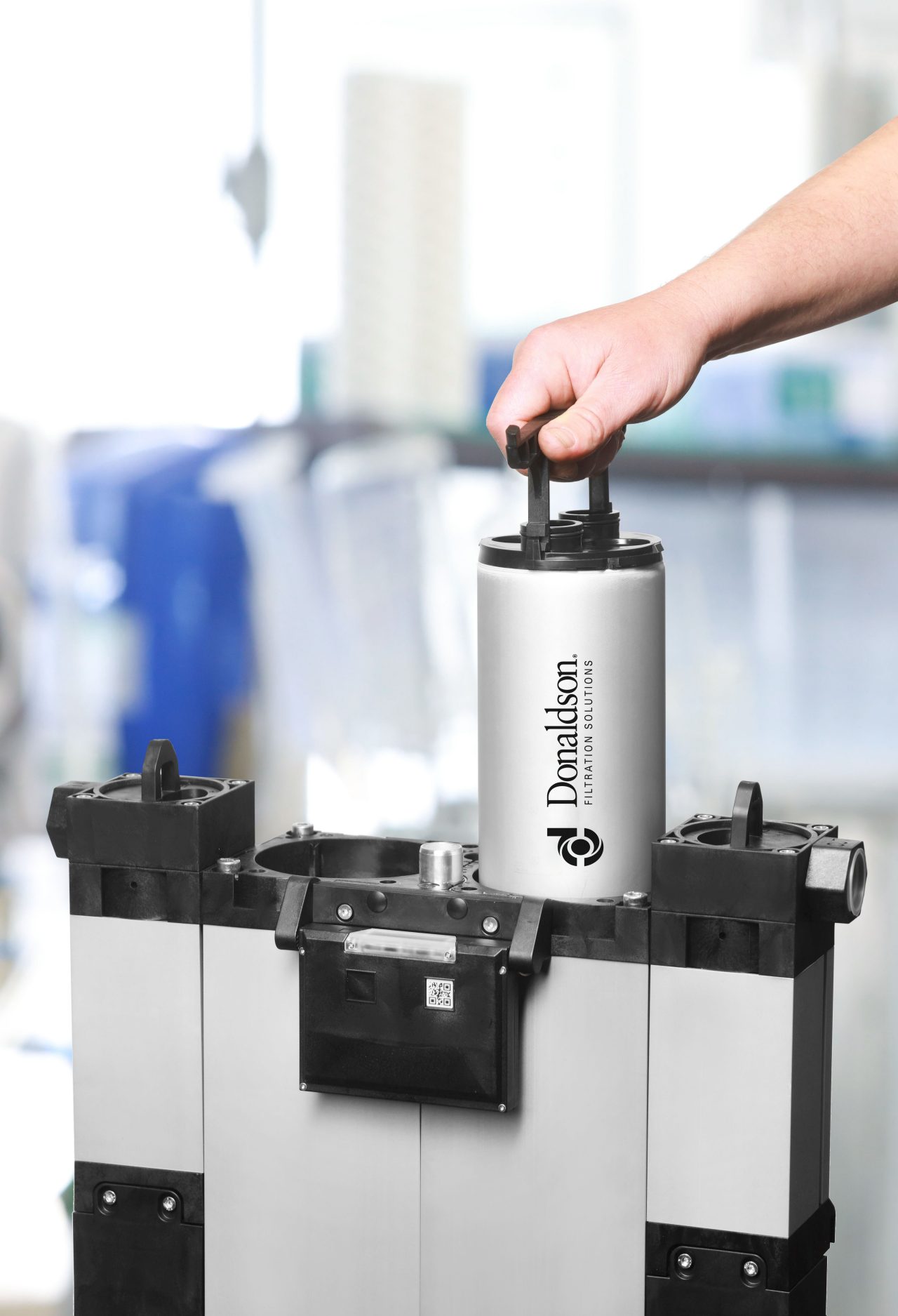

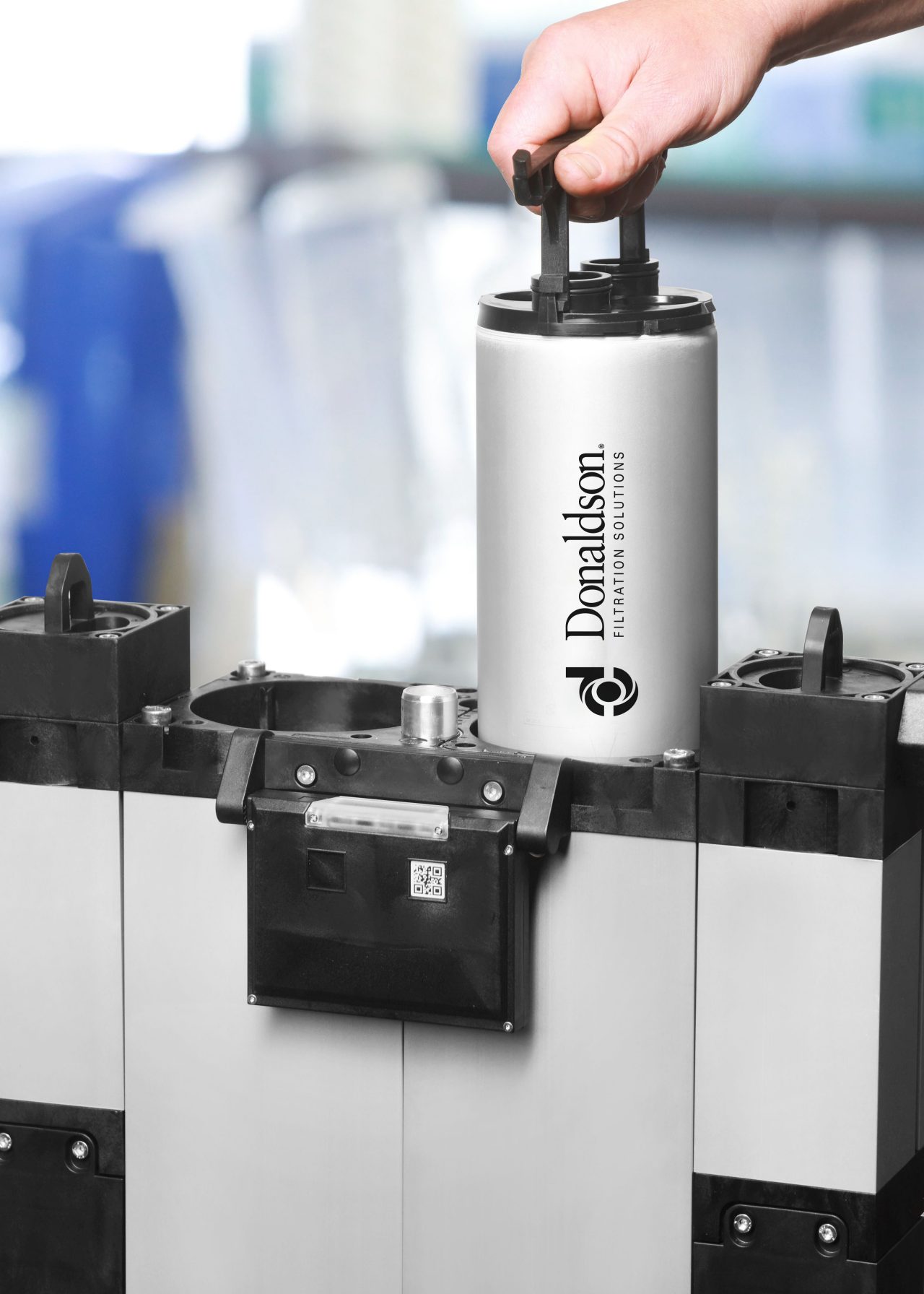

Service-Friendly Cartridge Exchange for Short Downtimes

Designed for simple maintenance and service, our modular desiccant dryers are equipped with accessible components that can be quickly and easily exchanged.



Oil-Free & Breathing Air Packages

Based on Ultrapac™ Smart dryer technology, we also developed the following oil-free and breathing air solutions:

The Oilfreepac™ Smart OFP dryer packages include integral activated carbon adsorbers for removing oil vapors and hydrocarbons for critical applications where the demand is oil-free and odor-free air.

The Ultrapure Smart ALG breathing air systems supply breathing air for most relevant international standards.

Applications

  • Point-of-use compressed air drying directly at workstations
  • Pre-filtration and drying before sensitive equipment and control systems
  • Laboratories and analytical instrumentation
  • Electronics manufacturing and precision assembly lines
  • Food and beverage production requiring clean, dry air
  • Automotive paint shops and surface finishing processes
  • Packaging and bottling lines
  • Pharmaceutical production



Availability varies by region. Please contact your local Donaldson representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
