Overview
What is the Downdraft Bench Dust Collector

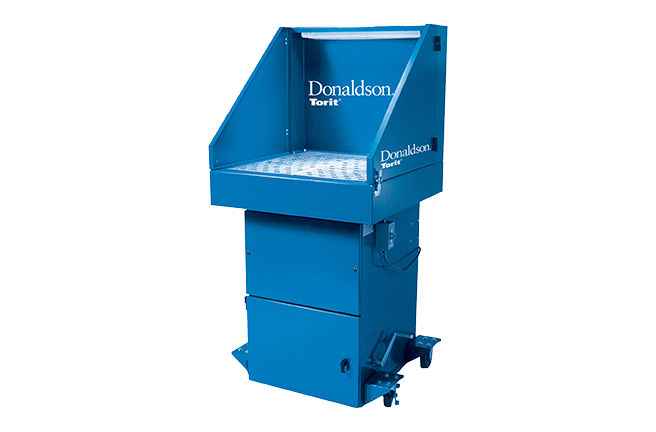

The Downdraft Bench, Model DB-800 is a self-contained, intermittent-duty dust collector with envelope-style filters. Designed as a workstation for grinding, polishing, hand sanding, and dry buffing applications, the DB-800 features cotton sateen filter bags, prewired controls, and a LED light fixture.
Direct-drive, forward-curve fan provides 200-fpm minimum face velocity across the slotted-steel work surface designed to hold up to 50-lb per square foot. Hinged side panels open to accommodate larger work pieces, and a manually operated filter shaker allows on-demand filter cleaning. Replace filters easily with the one-piece EZ Filter Pack™ and dispose of dust contained in the dust drawer from the front of the collector.
Applications
The Downdraft Bench provides excellent efficiency on nuisance dust generated in industrial operations, such as grinding, buffing, and polishing without rouge, and hand-sanding operations.
- Grinding: The Downdraft Bench has a baffle that limits particles from directly impinging on the filter bags, reducing the risk of bag damage.
- Buffing and Polishing: Buffing and polishing operations without rouges.
- Hand Sanding: Light-duty hand sanding only. Avoid applications with explosive dust or welding operations.
The Donaldson Torit® DB-800 Downdraft bench is compact and ergonomically designed for finishing small parts. It combines a heavy gauge and welded cabinet and direct drive fan to help provide trouble-free service. With the hinged side panels, it is a great solution to accommodate long work pieces.
- Heavy-duty welded cabinet and direct drive fan provide long-lasting, dependable service
- Hinged side-wing panels open to accommodate longer workpieces
- Quick access to dust drawer provides easy maintenance
- Built-in fluorescent light illuminates work area
- Manually-operated shaker makes bag filter cleaning easy
EZ Filter Pack™ filter for tool-free installation and helps provide a positive pressure seal.
Please contact your local Donaldson Representative for specific availability in your region. All products, specifications, and availability are subject to change without notice.
