Overview
The award-winning Rugged Pleat Baghouse is ideal for the heavy and/or abrasive dust applications typically found in woodworking, mining, grain processing, and other industries. Combining a cyclone pre-cleaner and baghouse into a single unit, the Rugged Pleat handles heavy dust loads and large air volumes and uses a PD pump cleaning system to provide energy-efficient filter cleaning. But, the Rugged Pleat goes even further, incorporating advanced Donaldson filtration technology that leaves the competition behind.

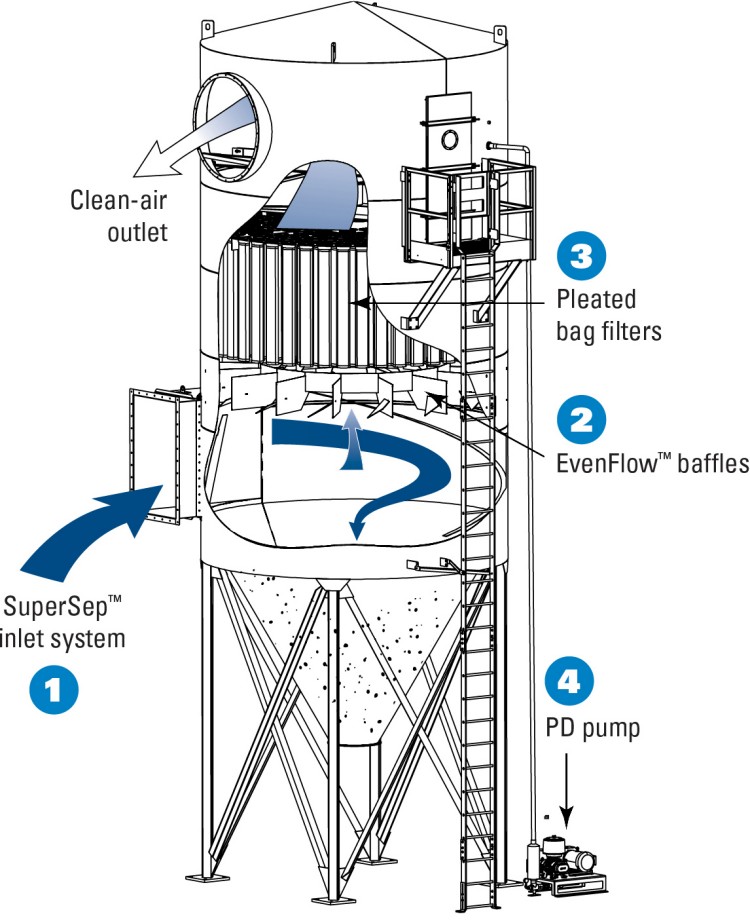

- SuperSep™ inlet system
- Pre-separates up-to-97% of heavy dust before it even reaches the filters
- EvenFlow™ baffles
- Helps to reduce turbulence and evenly distribute airflow to all filters
- Ultra-Web® Spunbond Pleated Filter Bags

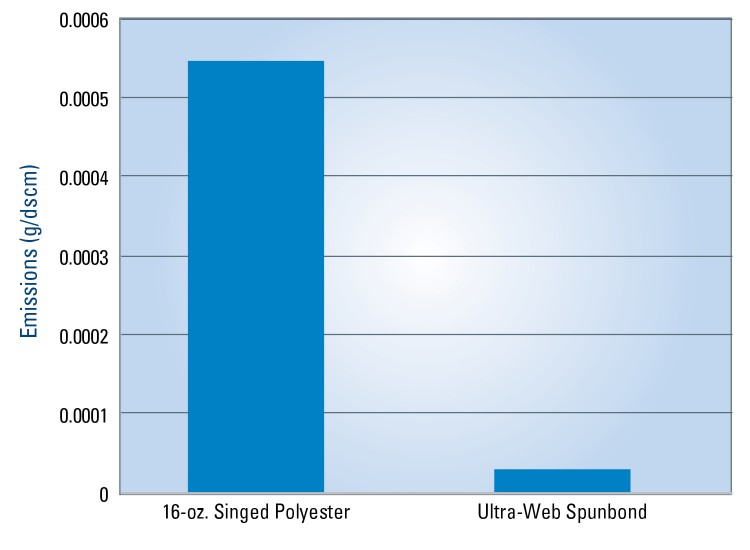

- Ultra-Web® Spunbond media provides 94% fewer emissions than standard 16-oz. singed polyester felt and is more durable for heavy dust applications
- PD pump
- Comes with the collector and provides energy-efficient pulse air with reduced condensation for fewer problems with moisture in the winter due to freeze-up.
- PerfectPulse™ cleaning system
- Delivers every pulse directly over the filter to ensure more effective bag cleaning and support longer filter life
- Up to 44% Fewer Filters*
- Optimally-sized Pleated Filter Bags designed to maximize the amount of media per filter, resulting in 44% fewer filters to service
Intelligent Filter Design
The advanced construction and optimally-sized pleated filters of the Rugged Pleat enable the collector to provide the same airflow capacity as traditional round baghouses with up to 44% fewer filters. With fewer filters, the downtime needed for change-outs is easily reduced.
Rugged Pleat filters are only 5 feet tall so they are much easier to handle than conventional 8-, 10- or 12-foot bags and cages.
Advanced Filter Technology
Donaldson has continually advanced our proven Ultra-Web® fine fiber technology. Ultra-Web® provides a very fine, continuous fiber of 0.2-0.3 microns in diameter to form a web-like net that traps dust on the surface of the media. Combining Ultra-Web® technology with a sturdy spunbond polyester substrate, Ultra-Web® SB pleated bag filters provide longer life, reduced downtime, and reduced emissions.
Ultra-Web® Spunbond Pleated Filter Bag Benefits
- Media is more efficient in capturing submicron dust particles (0.3 micron and larger)
- Longer filter life and better pulse cleaning due to surface loading technology
- Lower energy use with better pulse cleaning and lower operating pressure drop
- More clean air, supporting longer filter life, and help to increase cost savings

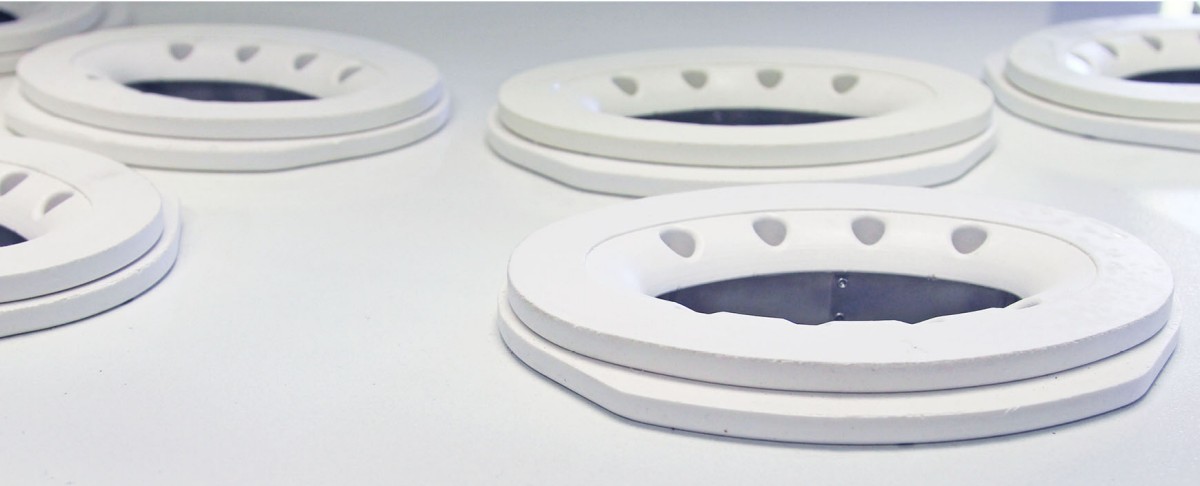

- Built-in venturi and tertiary holes to increase pulse pressure longevity to improve pulse effectiveness and filter cleaning without creating dead space below the tubesheet
Control Panel

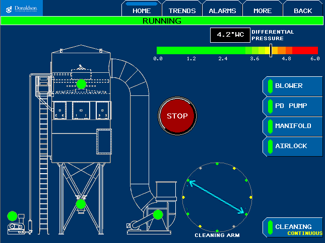

The Rugged Pleat baghouse also offers a new, easy-to-use control panel. It provides at-a-glance monitoring of the complete system, so you know that your Rugged Pleat collector is running at optimal performance.
It also offers features such as an airflow controller which can increase fan speed as filter life progresses to help your system run more efficiently to help lower your energy costs.
Features
| Collector Design | Standard | Optional |
|---|---|---|
| All-Welded 10 ga (minimum) Construction |  |
|
| Heavy-Duty 1/4-in (6.4 mm) Tubesheet Construction | |
|
| PD Pump (TEFC Motor Drive) for Cleaning System | |
|
| 1/3 HP TEFC Motor* for Manifold Drive | |
|
| SuperSep™ inlet system | |
|
| Evenflow™ baffles (with SuperSep™ inlet) | |
|
| Round Outlet | |
|
| Rectangular Outlet | |
|
| High Body Inlet | |
|
| Ladder & Platform Assemblies | |
|
| Stainless Steel Construction | |
|
| Internal Service Light | |
| Pleated Bag Filters | Standard | Optional |
|---|---|---|
| Ultra-Web Spunbond Pleated Bags with Donaldson Seal Lock Top | |
|
| Ultra-Web Spunbond Pleated Bags with BoltsafeTM Hardware | |
|
| Variety of Media Options | |
| Hopper Design | Standard | Optional |
|---|---|---|
| 60° Conical Hoppers | |
|
| Hopper Access Cover | |
|
| Outlet Transitions for various Airlock Sizes | |
|
| Outlet Transition for Live Bottom Hopper | |
|
| Hopper Service Port | |
|
| Hopper Level Indicators | |
|
| 3” (76.2 mm) Hopper Water Overflow Check Valve | |
| Support Structure† | Standard | Optional |
|---|---|---|
| Steel Support Legs shipped installed | |
| Electrical Controls, Gauges and Enclosures | Standard | Optional |
|---|---|---|
| Magnehelic®** Gauge | |
|
| Rugged Pleat Perfect Pulse Timer PLC in NEMA 4 Enclosure | |
|
| Pulse Solenoid Valve in NEMA 9 Enclosure | |
|
| iCue™ Connected Filtration hardware and 1 year service agreement | |
|
| Rugged Pleat PerfectPulse Controller with HMI screen in NEMA 12 Enclosure | |
|
| Rugged Pleat PerfectPulse Control Panel with HMI screen, motor starters in NEMA 12 Enclosure | |
| Safety Features | Standard | Optional |
|---|---|---|
| Sprinkler Taps | |
|
| Explosion Vents | |
|
| Ladder Safety System | |
| Paint System | Standard | Optional |
|---|---|---|
| Prime Coated Interior | |
|
| Textured Multi-Coat Paint Finish with 2,000-Hour Salt Spray Performance | |
|
| Premium Duty Paint | |
|
| Custom Colors | |
| Warranty | Standard | Optional |
|---|---|---|
| 10-Year Warranty | |
** Magnehelic and Photohelic are registered trademarks of Dwyer Instruments, Inc.
† Donaldson Torit equipment is designed to IBC guidelines for specific wind speed exposure and seismic spectral acceleration at grade level. Contact your Donaldson Torit representative for detailed information available on the equipment’s Spec Control drawings. Equipment may be customized to meet unique, customer-specified site requirements.
