Cyclone

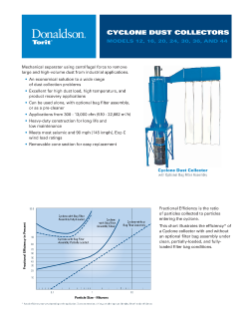

The Donaldson Torit® Cyclone dust collector is designed specifically for high dust load, high temperature, and product recovery applications.​ It has a mechanical separator that uses centrifugal force to remove large and high-volume dust from industrial applications.
  • An economical solution to a wide range of dust collection problems
  • Excellent for high dust load, high temperature, and product recovery applications
  • Can be used alone, with optional bag filter assembly, or as a pre-cleaner
  • Applications from 510 to 22,082 m³/h / 300 to 13,000 cfm
  • Heavy-duty construction for long life and low maintenance
  • Meets seismic zone 6.4 and 160.9 km/h / 4 and 100 mph wind load ratings
  • Removable cone section for easy replacement

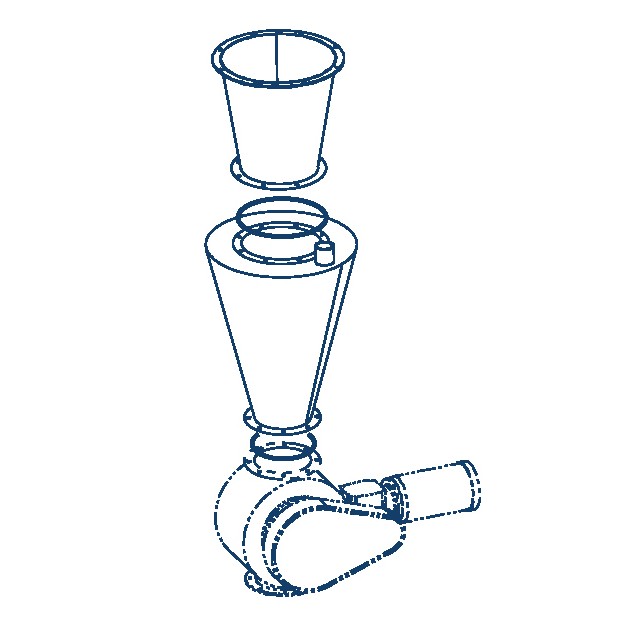

Cyclone Dust Collector

Operational Explanation

Dust-laden air enters the unit through the air inlet and is diverted by a helical baffle. Centrifugal force moves the heavy dust to the interior sidewalls and carries them to the base of the unit. Clean air is carried through the inner cylinder and discharges to atmosphere or optional afterfilters.

Multiple Rating Table


Model Nominal Airflow Range* (cfm) Nominal Airflow Range* (m3/h) External Static Pressure ("wg) Inlet Velocity (fpm) Inlet Velocity (m/min)
12 300 - 540 510 - 917 5.6 - 4.1 3580 - 6200 1091.2 - 1889.8
16 860 - 1200 1,461 - 2,038 7.9 - 4.6 4380 - 6135 1335.0 - 1869.9
20-3 1250 - 2000 2,123 - 3,397 7.5 - 3.7 3555 - 5710 1083.6 - 1740.4
20-5 1500 - 2500 2,548 - 4,247 11.4 - 5.0 4290 - 7140 1307.6 - 2176.3
24 1950 - 3500 3,312 - 5,945 13.4 - 4.4 3580 - 6450 1091.2 - 1966.0
30-10 3000 - 4500 5,096 - 7,644 9.9 - 5.0 3820 - 5730 1164.3 -1746.5
30-15 4000 - 5600 6,795 - 9,512 11.0 - 4.9 5100 - 7140 1554.5 - 2176.3
36-20 4300 - 7000 7,304 - 11,891 11.4 - 4.9 4015 - 6540 1223.8 - 1993.4
36-25 4500 - 7500 7,644 - 12,740 14.9 - 6.3 4210 - 7010 1283.2 - 2136.6
36-30 5000 - 8000 8,493 - 13,589 16.1 - 7.1 4670 - 7465 1423.4 - 2275.3
44-40 8000 - 11,500 13,589 - 19,534 15.1 - 5.5 4530 - 6510 1380.7 - 1984.2
44-50 8000 - 13,000 13,589 - 22,082 18.8 - 7.0 4530 - 7360 1380.7 - 2243.3
* Based on clean bag filters.

Base Options

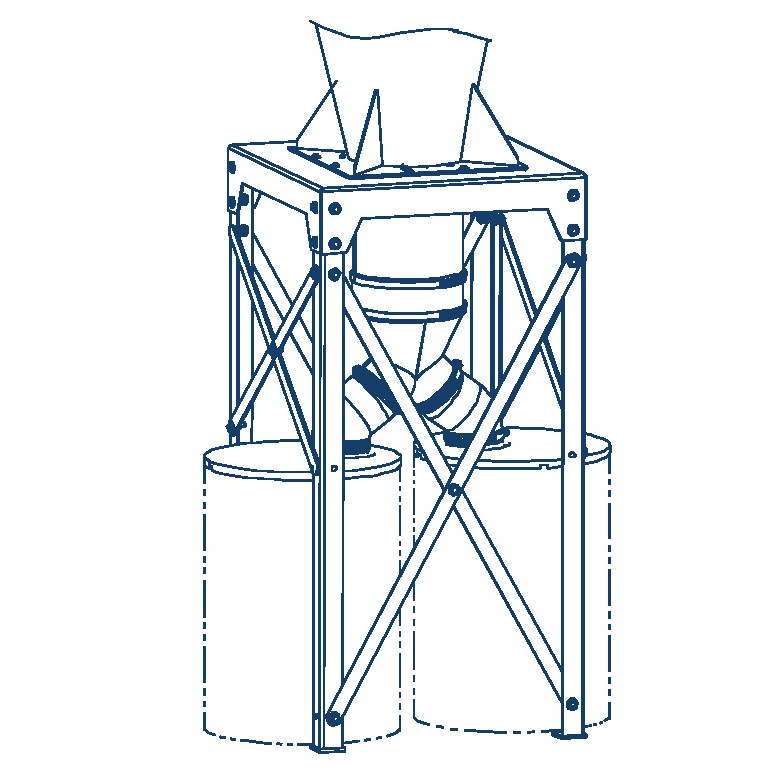

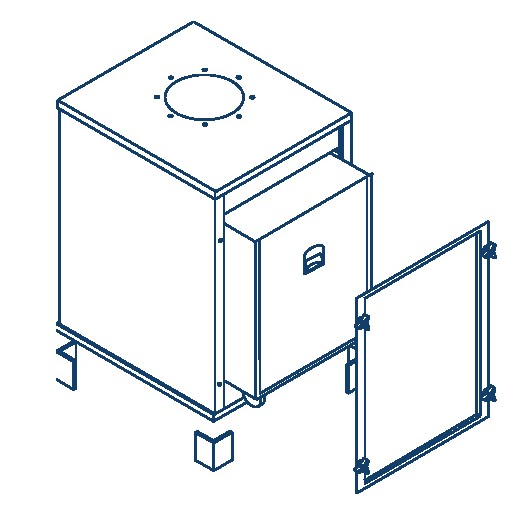

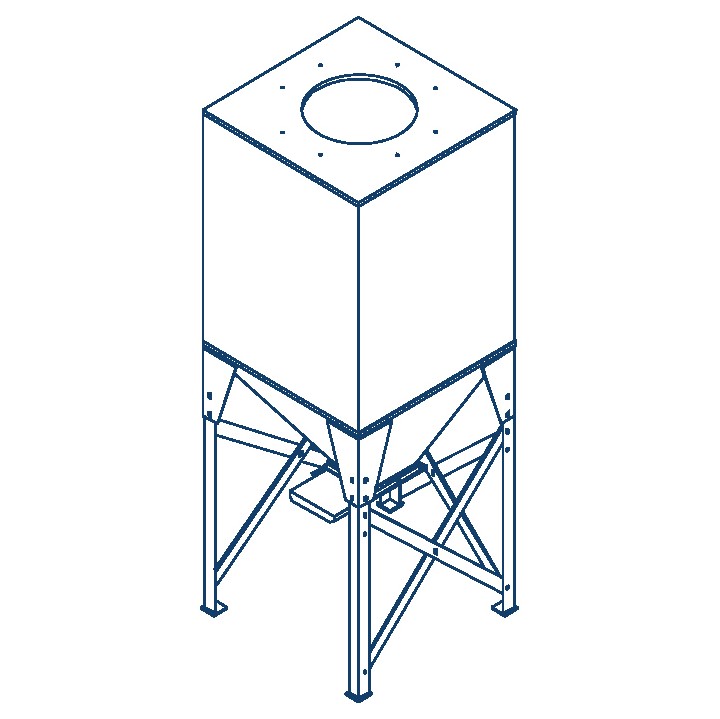

Pictured from left to right: Cabinet Base, Hopper Base, Two-Drum Style 55-Gallon Drum Base (optional), ​Surge Hopper (optional)
Features Standard Optional
Inlet Assembly
208.2 L / 55 gal Drum Base for Models 12 Through 36
TEFC Motor*
2.9 m/ 103 ft3 Hopper and Legs for Model 44
208/230/460/60/3 Voltages
10-Year Warranty
Power Pack
Explosion-Proof Motors
50 Hz, Single Phase Motors
Steel or Aluminum Fan Wheels
Hopper Base
Two 208.2 L / 55 gal Drum Base for Models 20, 24, and 30
Cabinet Base for Models 12, 16, 20, 24, and 30
Surge Hopper
Silencer
Exhaust Accessories
Attenuator
Bag Filter Options
Bag Filter Enclosure
Explosion Vent
*All 60 Hz motors 1 HP and above are EISA compliant and considered NEMA Premium® per Table 12-12. NEMA Premium is a registered trademark of National Electrical Manufacturers Association.
