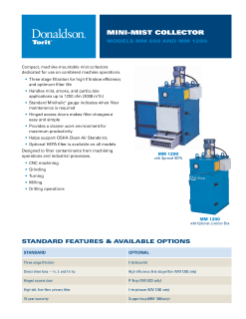

The Mini-Mist design is compact and available in two models; MM 500 for light-duty operations and MM 1200 for machines requiring higher airflow or applications that require a mist and smoke collector.
Designed to Filter Contaminants from Machining Operations and Industrial Processess
|Standard and Optional Features||Standard||Optional|
|Direct-drive fans - .5, 1, and 1.5 HP|
|Hinged access door|
|High-loft, fine-fiber primary filter|
|Inlet hose kit|
|High efficiency first-stage filter (MM 1200 only)|
|Inlet plenum (MM 1200 only)|
|Support legs (MM 1200 only)|
Q. What Size Are Mist Droplets/Particles?
A. Mist can generally be defined as a liquid droplet 20 microns in diameter or smaller. Oil-based fluids typically produce mist droplets that range from 0.5 microns to 10 microns. A smoke droplet is typically smaller, from 0.07 microns to 1 micron, and is a solid or liquid aerosol.
Q. What Determines the Performance of a Mist Collector?
A. A mist collector can be characterized by pressure drop, efficiency, and flow rate. Pressure drops affects the energy required to pull the airflow through the system. The efficiency of the system determines how clean the air will be as it leaves the collector and flow rate determines how much air will be cleaned.
