Overview
The Donaldson SVU series brings the performance and convenience of the PowerCore® technology to the silo venting market. Built to withstand severe weather conditions, the SVU series is specially designed to vent pneumatically filled storage silos during truck unloading operation.
The Silo Venting Unit will satisfy the need not only for efficiency and reduced maintenance, but also for convenience and workplace safety. You can’t always avoid having your maintenance workers climbing and working on high height silos, but you can control how convenient and safe it is.
Time-consuming and often very dirty maintenance processes, frequently under precarious working conditions, are a thing of the past when using the PowerCore SVU.
Compact
Up to 54% shorter compared to conventional silo dust filters.
Robust and Protected
High quality Stainless steel body with weather protective hood.
Clean, Easy and Safe Maintenance
No tooling required, no losable parts, and low height of just 532 mm / 21 in.
Extended Filter Life
Pulse Jet cleaning combined with PowerCore technology means extended filter life and service intervals.

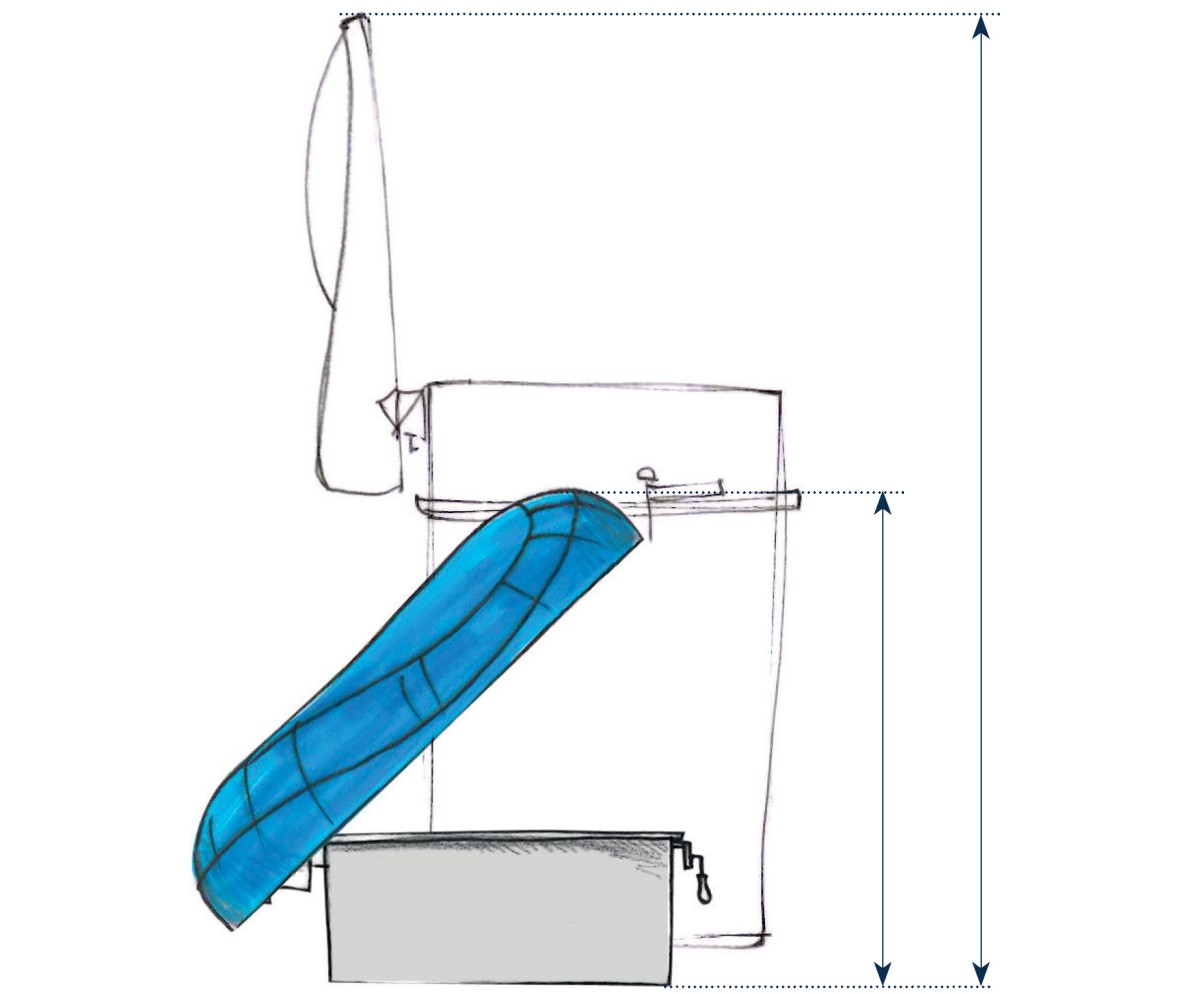

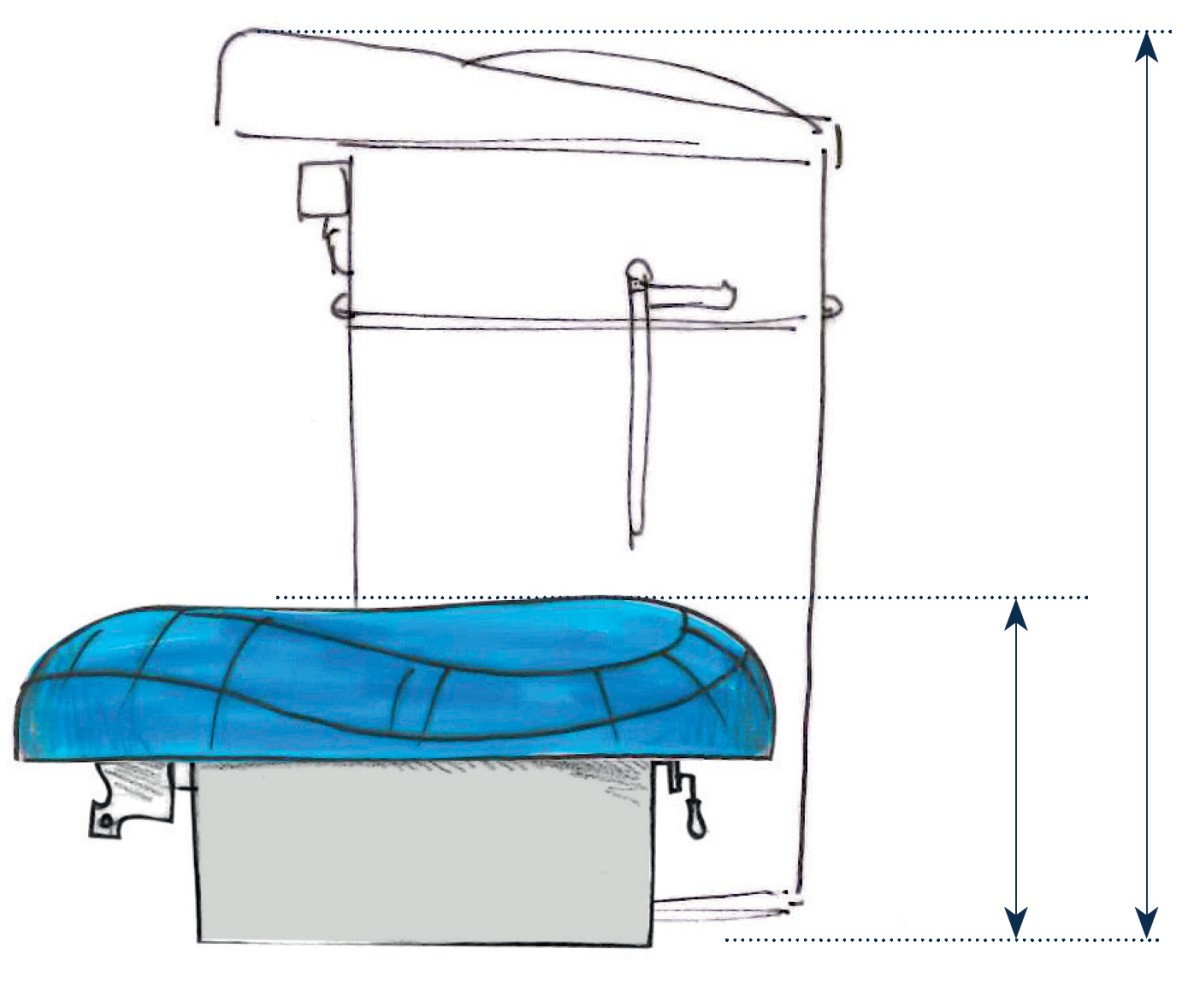

Up to 54% Shorter than Traditional Silo Venting Collectors
The SVU is up to 54% shorter than traditional silo venting collectors; its compact and low height design provides easy and safe access to the filter packs. With the Silo Venting Unit, you can save space, reduce maintenance requirements and hazards generated by changing long and dirty filter bags or cartridges on a silo top. While up to 6 bag filters or cartridges have to be moved up and down on conventional silo venting solutions, the SVU only needs 2 lightweight and compact filter packs; changing the PowerCore filter packs can be done easily and safely by just one person with no tools or losable part, in no time.
The performance, reliability, and ergonomy of the SVU is derived from a combination of advanced filtration technology, unique form factors and high performance reverse jet cleaning to ensure effective dust release and a continuous level of operation for longer. Fewer filters, better cleaning, and shorter maintenance leads to major cost savings over the life of the collector.
At the core of the SVU unique design is PowerCore, the most innovative filtration technology from Donaldson integral to the dramatic downsizing of the PowerCore SVU series. An entirely new approach to dust collectors, the PowerCore filter pack is small, lightweight, and easily handled by one person. Donaldson’s PowerCore technology combined to our well-proven Ultra-Web® advanced fine fiber technology allows more effective filter area to be packaged in a smaller space.
Pneumatic Silo Venting applications typically requiring up to 6 filter bags or cartridges (24 m²/ 258 ft² ) in the past now only needs 2 PowerCore compact filter packs. With more media packed into a smaller space and a simplified airflow path, PowerCore filter packs provide high performance with a low pressure drop.
Features
| Casing | |
|---|---|
| Max. height above silo | When closed: 532 mm / 21 in. When open: 1,080 mm / 42.5 in. |
| Plan | 1,150 x 935 mm / 45.3 x 36.8 in. |
| Mounting Flange | DN 800 mm / 31.5 in. |
| Weight | 65 kg / 143.3 lbs |
| Design Pressure | ± 5,000 Pa |
| Color | Cover: Blue Body: Stainless Steel |
| Outdoor, weather protection | UV protection |
| Dirty side contact parts | Stainless steel |
| Construction | Welded and bolted assembly |
| Cleaning System | |
|---|---|
| Type | Reverse pulse jet |
| Compressed air pressure | 6 bar (max) |
| Compressed air consumption | 22 Nl per pulse |
| Compressed air quality | Class 3 (ISO 8573-1) |
| Integrated controller | STR2 – Cycle timer |
| Input voltage | 230/115VAC – 24VDC |
| Performance Specification | |
|---|---|
| Nominal airflow | 2,000 m3/h / 1,177 cfm |
| Emission level | <5 mg/m3 |
| Noise Level | <80 dBA (ISO 3744) |
| Temperature specification | -10° C to +60°C / 14° F to +140° F |
| Filter Elements | |
|---|---|
| Filter elements | PowerCore CP |
| Number of elements | 2 |
| Filter pack dimensions | L 569 x W 193 x H 178 mm L 22.4 in. x W 7.6 in. x H 7 in. |
Accessories
Contact your Donaldson Sales Representative to order. Availability varies by country.
Resources
FAQs
Q. How Can the PowerCore SVU Series Be so Much Smaller Than a Traditional Silo Venting Filters?
A. The PowerCore SVU compact design is derived from a combination of advanced filtration technology and unique collector design. One PowerCore filter pack replaces up to six traditional fabric filter bags. We are able to include a large amount of filter media area in the 178 mm / 7 in. filter pack space. With shorter filter packs, the size of the collector can be reduced.
