Torit PowerCore TG collectors’ strong and sleek all-welded housing is the ideal fit as a stand-alone on the plant floor or integrated into an OEM design. Factor in the energy saver package, quiet motor and smart controls specifically designed for metalworking, and the choice is clear. The Torit PowerCore TG’s custom engineered components and integrated electrical controls—in combination with Torit PowerCore filtration technology—provide a finished product of superior quality.
What makes Torit PowerCore TG so smart? The difference is compact PowerCore filter packs with easy-grip handles that don’t require tools. A complete departure from the traditional cartridge filter, offset-stack PowerCore filter packs with high performance flame-retardant Ultra-Web® filter media combine Donaldson Torit’s proprietary technologies that are proven in the field for more than 10 years. Best of all, one PowerCore filter pack replaces up to three traditional cartridge filters, resulting in fewer, faster filter changes.
Smarter Filter Cleaning

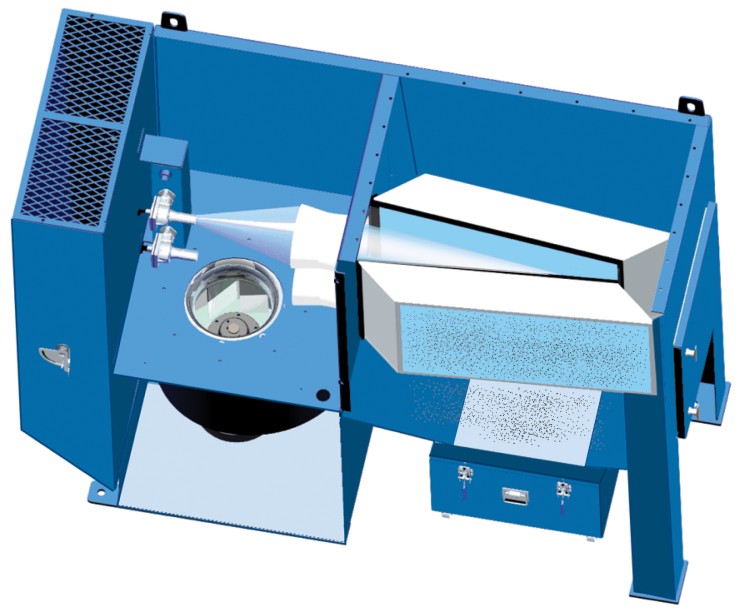

Torit PowerCore TG collectors include a new state-of-the-art ZERO-Turn Power Pulse Cleaning System which is specifically designed to work in tandem with PowerCore® TG filter packs and surface-loading Ultra-Web® media. It delivers maximum cleaning energy in straight-line paths through the media and easily pulses the dust out of the fluted channels.

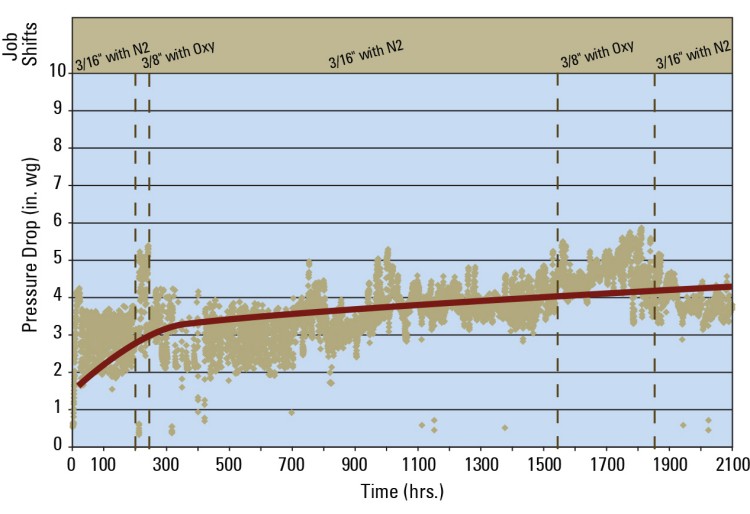

What about those job shifts of cutting typical 10 gauge sheet metal today and 6.35 mm / 1/4 in. plate tomorrow? No problem for versatile and flexible PowerCore filter packs cleaned by the channeled pulse energy of the ZERO-Turn Power Pulse Cleaning System. PowerCore filter packs recover more easily than traditional cartridge filters from dramatic spikes in pressure drop during pulse cleaning. The result is longer filter life.

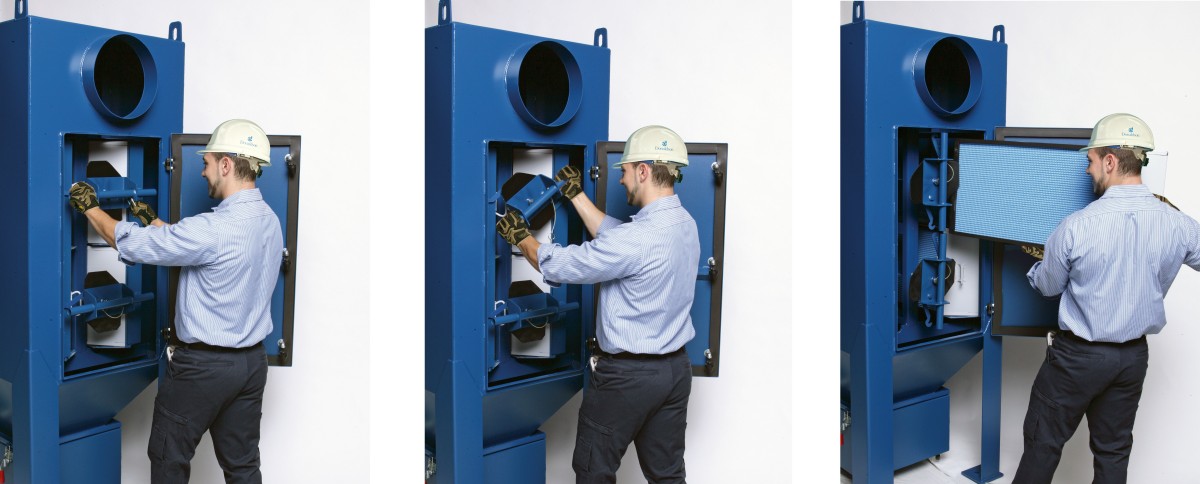

Torit PowerCore TG filter packs are easy to remove and install. No tools required. Better yet, it takes only one person to do the job. Just open the T-Handles on the front access door and open the proprietary rotary filter locks to get instant access to the filter packs. PowerCore filter packs are lightweight and remain below the 50-pound OSHA Lift Limit even at the end of their life cycle.
Q. Is the PowerCore Filter a Bag or a Cartridge?
A. The PowerCore filter is neither a bag nor a cartridge. It’s a filter pack with a handle. We’ve configured the media into a corrugated flute structure, which not only makes the pack rigid and sturdy, but allows more media to be used effectively in a smaller volume. The media is then rolled into an “ob-round” shape that is only 17.8 mm / 7 in. deep by 55.88 mm / 22 in. long. The PowerCore filter pack, in conjunction with the PowerCore collector, has been designed to replace conventional baghouses with fabric or pleated filter bags. You’ll be amazed at how easy it is to change out the PowerCore filter packs. They can be removed and replaced in just minutes, without using tools—and without a confined space permit.
Q. Why Are Torit PowerCore TG Dust Collectors So Much Smaller Than Traditional Cartridge Collectors?
A. The difference is compact PowerCore filter packs in combination with a very unique collector design. One compact, offset-stack TG filter pack replaces up to three traditional filter cartridges. The PowerCore technology enables us to package more effective filtration media area into smaller spaces because of its unique, corrugated configuration method. Pairing the compact PowerCore technology with our Donaldson-developed, proprietary Ultra-Web® media technology allows the dust collectors to shrink in size. And that is not all. The dust collector itself is designed to be smaller and smarter. By engineering the airflow patterns inside the collector, and by adding the new state-of-the-art Zero-Turn Power Pulse Cleaning System, we have been successful in reducing the overall housing volume while maintaining excellent filtration performance.
Q. Can Dust Bridging Become a Problem with Torit PowerCore?
A. No. There is no chance of bridging between PowerCore filter packs—and therefore no plugging due to bridging—in a Torit PowerCore collector. Here’s why:
Q. What Kind of Dust Can Torit PowerCore TG Handle?
A. So far, we’ve tested and approved Torit PowerCore TG for all thermally generated dusts and some metalworking dust, including:
We continue to test and develop Torit PowerCore solutions for other dust challenges. Donaldson Torit will always recommend the best filtration solution for the specific application, whether it’s a cartridge, baghouse, or Torit PowerCore.
Q. Is the PowerCore TG Filter Pack a Bag or a Cartridge?

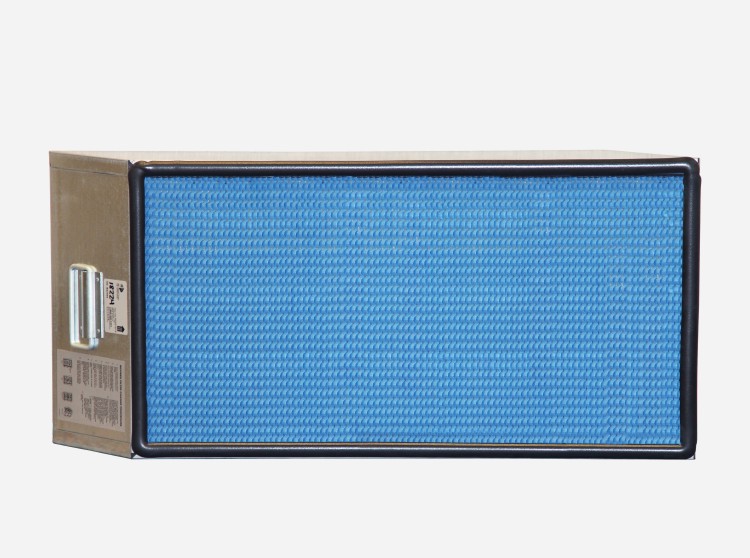

A. The PowerCore TG filter pack is neither a bag nor a cartridge. It’s a rectangular filter pack in a lightweight metal casing with an easy-grip handle. The media is configured into a corrugated off-set stack flute structure, which not only makes the pack rigid and sturdy, but allows more media to be used effectively in a smaller space.The metal casing adds rigidity needed in metalworking environments. You’ll be amazed at how easy it is to change out the PowerCore TG filter packs. It takes only one person to remove and replace the filter packs in just a couple of minutes, without using tools and without any loose parts to handle.
Q. What Kind of Filter Media Is Used in PowerCore TG Filter Packs?
A. Our best: our Donaldson-developed and proprietary Ultra-Web® media. It’s made of two layers—a sturdy substrate bonded with a thin layer of nanofiber—that capture both small and large particulate—resulting in a very high performance media. The ASHRAE 52.2-1999 test standard proves it. Standard PowerCore TG filter packs have a Minimum Efficiency Reporting Value (MERV) of 13.
Q. Are Torit PowerCore TG Collectors and PowerCore TG Filter Packs Available from Other Manufacturers?
A. No. Torit PowerCore TG dust collectors and PowerCore TG filter packs are only available from Donaldson Torit.
Q. Does Torit PowerCore Improve Traditional Baghouse Filtration?
A. Yes. The PowerCore CP Series collector design and engineered airflow work to prevent a common baghouse problem—bridging. The possibility of dust bridging between the filter packs is eliminated in Torit PowerCore. By designing the filter pack and the collector together, Donaldson Torit has developed an optimized solution for dust collection where baghouses are typically applied.
Q. What Kind of Filter Media Is Used in PowerCore Filter Packs?
A. Our best: our Donaldson-developed and proprietary Ultra-Web® media. It’s made of two layers—a sturdy substrate bonded with a thin layer of nanofibers—that capture both small and large particulate—resulting in a very high performance media. The EPA PM2.5 testing proves it. PowerCore filter packs have 78% FEWER emissions than traditional polyester filter bags.
Q. Can I Retrofit My Current Collector with PowerCore Filter Packs?
A. Not at this time. Torit PowerCore uses an advanced filtration technology. The filter packs, tubesheet, pulse-cleaning system and engineered airflow of the collector have been optimized as an integrated system. Retrofitting an existing collector is not advised.
Q. Are Torit PowerCore And PowerCore Filter Packs Available from Other Manufacturers?
A. No. Torit PowerCore and PowerCore filter packs are only available from Donaldson Torit.
Q. Why Do PowerCore TG Filter Packs Recover Better Than Traditional Filter Cartridges?
A. If you experience those job shifts of cutting typical 10-gauge sheet metal today and 6.35 mm / 1/4 in. or thicker plate steel tomorrow, the better recovery feature means a lot to you. PowerCore TG filter packs can handle the shift in dust loading better than any traditional filter cartridge because they can collect more dust and they are cleaned by the channeled pulse energy of the Zero-Turn Pulse Cleaning System. Therefore, PowerCore TG filter packs recover more easily than traditional filter cartridges from dramatic spikes in pressure drop during pulse cleaning. The result is longer filter life.
Q. Can I Retrofit My Current Collector with PowerCore TG Filter Packs?
A. Not at this time. Torit PowerCore uses an advanced filtration technology. The filter packs, tubesheet, the new state-of-the-art Zero-Turn Pulse Cleaning System and engineered airflow of the collector have been optimized as an integrated system. Retrofitting an existing collector is not advised.
Easy and Fast - no tools required.
Spark abatement for dust collection equipment.
